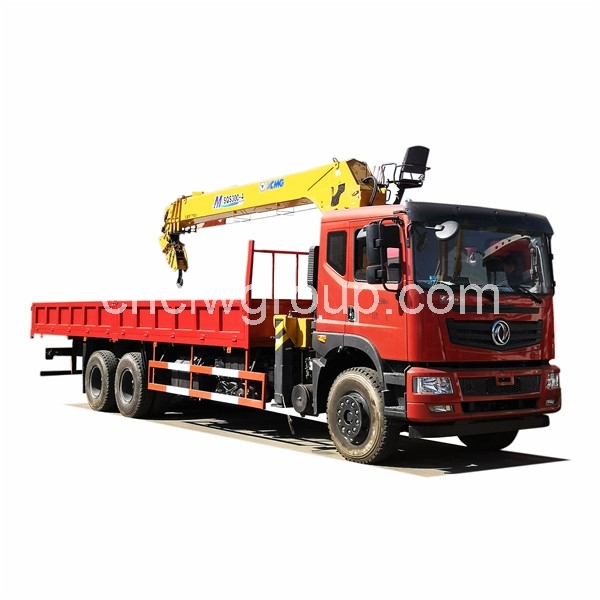

10 Wheeler Boom Truck with XCMG 12 Ton Crane

Dongfeng 6x4 260HP Euro3 truck
Gross weight: 25000kg
Transmission: 9-speed manual gearbox
Tir: 10+1 pcs 10.00R20 radial tire
Crane lifting capacity: XCMG SQS300 12 tons crane
Crane type:  telescopic straight boom, 4 section arm
Max lifting height: 1

【Chassis Parameters】

Dongfeng T5 new cab 6x4 chassis, condition new, 5000+1350mm wheelbase, Yuchai 260HP Euro3 dieseI engine, 9-speed transmission, 10.00R20 radial tires, with one spare tire, 6.5 ton front axle, 2x 13 ton double-mounted wheel reduction rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

XCMG SQS300-4 12 tons crane, 4-section arm, max lifting height 13m, max working radius 10.4m, 360° slewing, double side operation, with remote throttle, radiator, lighting, leveling bubble, etc.


Vehicle Basic Parameters:

Model CLW5251JSQD33
Chassis brand Dongfeng
New or Used New
Overall dimension 10850x2500x3850mm
Cargo box 7200x2300x550mm
Gross weight 25000kg
Curb weight 12500kg
Load 20 tons
Wheelbase 5000+1350mm
Engine power 260HP
Fuel type DieseI
Transmission 9-speed
Brake air brake
Axle load 6.5/2x 13 tons
Tire 10+1 pcs, 10.00R20
Max speed 90km/h

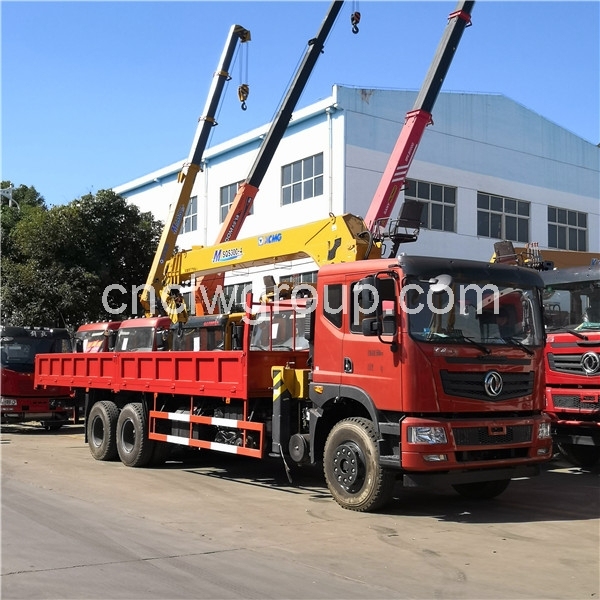

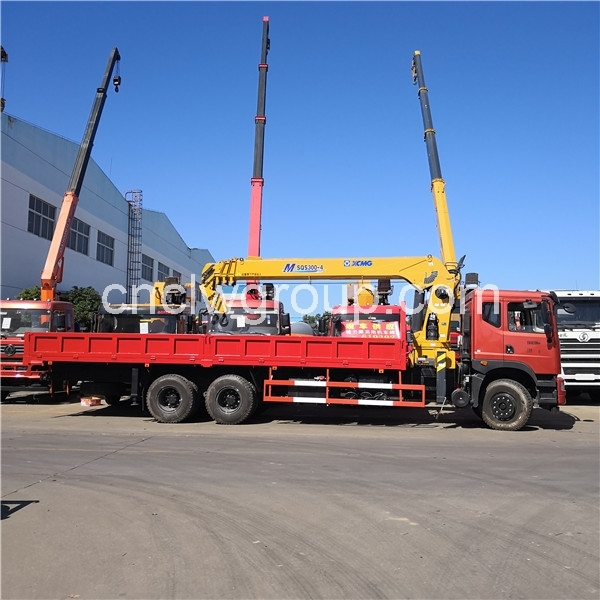

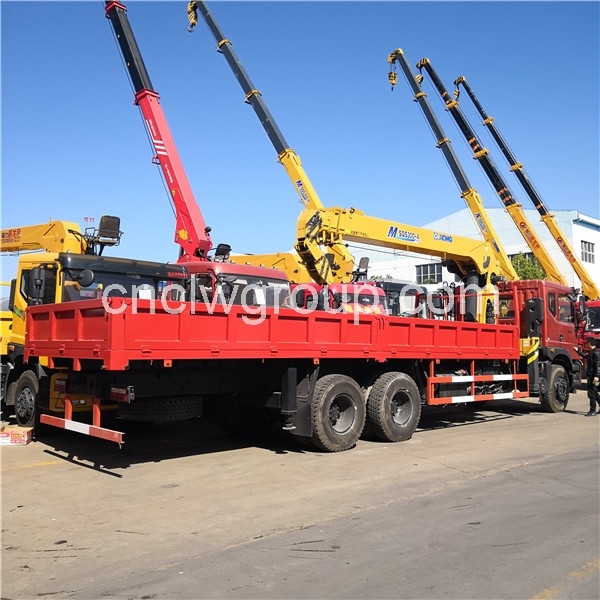

Multi-directional Pictures:

Crane Parameters:

Model SQS300
Brand XCMG
New or Used New
Max lifting weight 12 tons
Max torque 300 kN.m
Max lifting height 13m
Max working radius 10.4
Slewing angle 360 degree
Front Outrigger Front hydraulic extension outrigger
Rear Outrigger Hydraulic outrigger
Control Double side linkage operation
Special Remote throttle, lighting, leveling bubble, etc


As model changes or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
