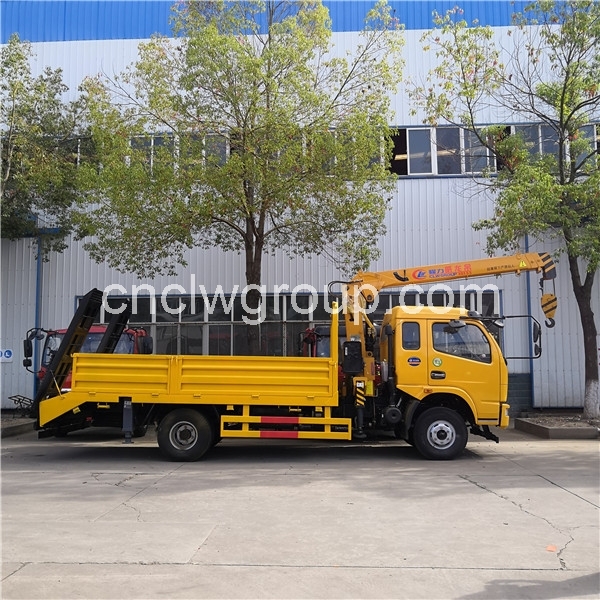

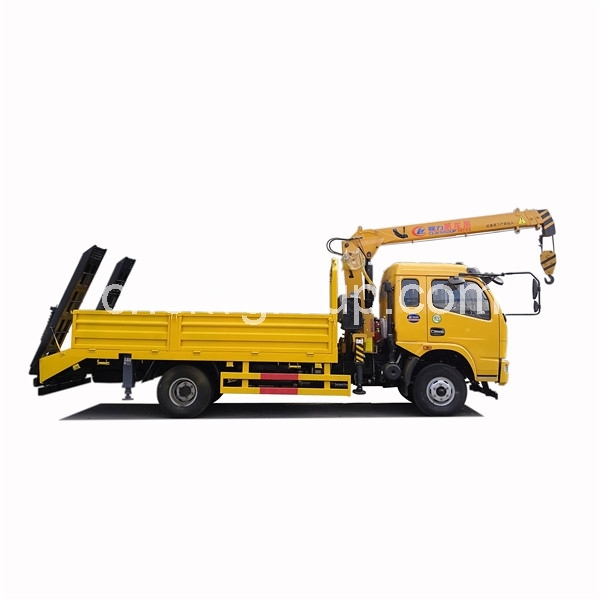

6 Wheeler Flatbed Truck with 3.2 Ton Crane

Dongfeng 4x2 Yuchai 120HP Euro3 truck
Tir: 6+1 pcs 8.25R16 radial tire
Flatbed size: 4800x2300x400mm
Crane Max Lifting Weight: 3.2 tons crane
Crane type: telescopic straight arm, 3 section
Max lifting height: 10.6 meters
Description
Description

【Chassis Parameters】

Dongfeng 4x2 chassis, condition new, 4050mm wheelbase, Yuchai 120HP Euro3 dieseI engine, 5-speed transmission, 8.25R16 radial tires, with one spare tire, 2.5 ton front axle, 5.5 ton rear axle, air brake, power assist steering, etc.



【Upper Structure Parameters】

CLW SQ3.2SA2 3.2 tons crane, 3-section straight extension arm, maximum lifting height 10.6 meters, maximum working radius 8 meters, 360° slewing, double side operation, with remote throttle, lighting, leveling bubbles, etc.

Cargo box type: excavator carrier flatbed type, 4800x2300mm, with 400mm height detachable side wall, with 2 pcs spring ladders at rear.



【Vehicle Basic Parameters】

Model CLW5090JSQD3
Chassis brand Dongfeng
Wheeldrive 4x2, LHD
New or Used New
Overall dimension 7820x2350x3350mm
Cargo box 4800x2200x500mm
Gross weight 11495kg
Curb weight 5800kg
Load 5-7 tons
Wheelbase 4050mm
Engine power Yuchai 120HP or Cummins 140HP
Fuel type DieseI
Transmission 5-speed
Brake air brake
Axle load 2.5 tons / 5.5 tons
Tire 6+1 pcs, 8.25R16 radial tires
Max speed 90km/h



【Crane Parameters】

Model SQ3.2SA2
Brand CLW
New or Used New
Max lifting weight 3.2 tons
Max torque 80 kN.m
Max lifting height 10.6m
Max working radius 8m
Recommand oil pressure 20MPa
Oil flow 25L/min
Slewing angle 360 degree continuous slewing
Outrigger span 1800mm ~ 2800mm
Outrigger Front hydraulic extension outrigger
Control Double side linkage operation
Special Remote throttle, lighting, leveling bubble, etc





As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
