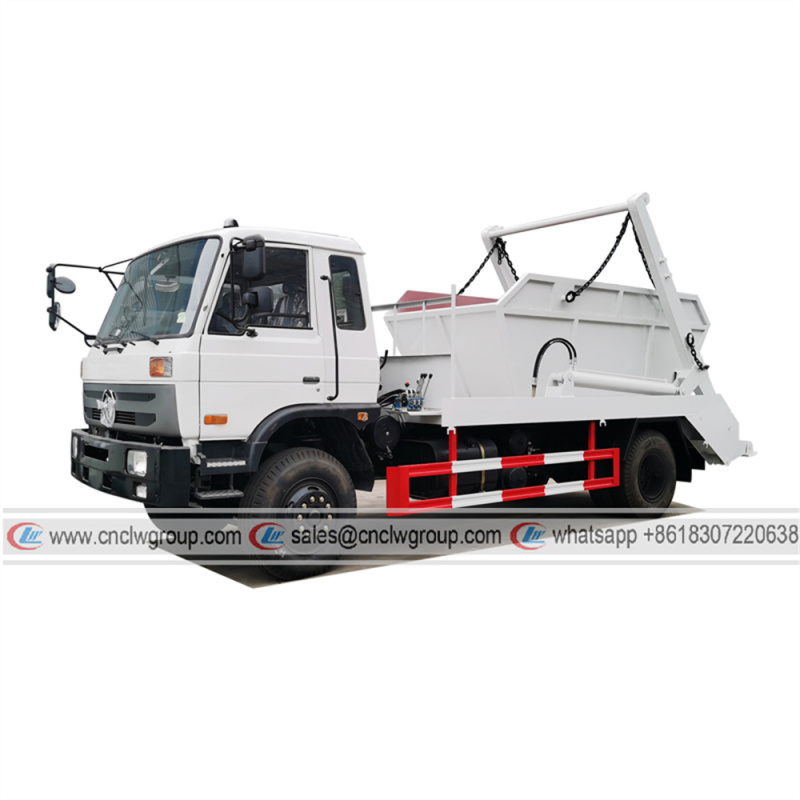

7cbm skip loader swing arm waste garbage truck

【Chassis Parameters】

Dongfeng brand  chassis, condition new, 3950mm wheelbase, Cummins 170HP Euro3 dieseI engine, 8-speed transmission, 9.00-20 nylon tires, with one spare tire, 3.6 ton front axle, 8 ton rear axle, air brake, power assist steering, etc.

【Upper Structure Parameters】

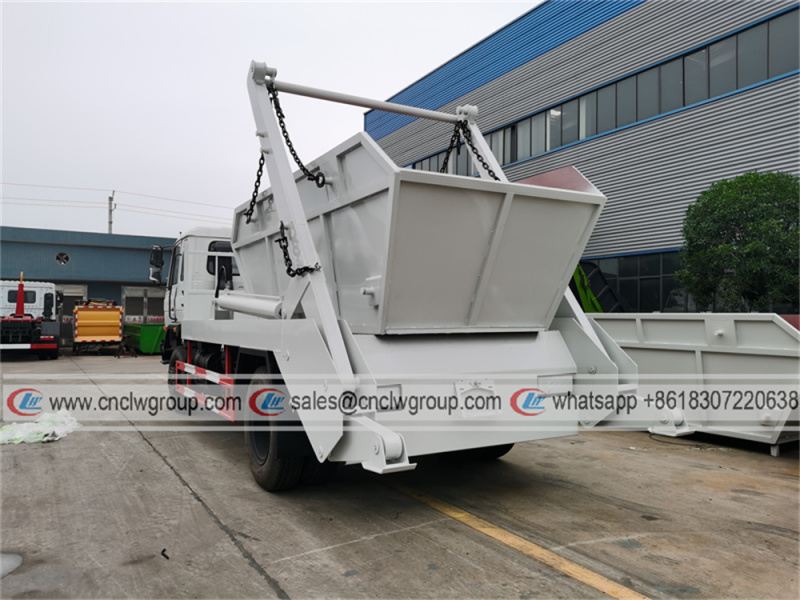

Hydraulic Swing Arm lifting system,  made of reinforced alloy steel main boom, which is resistant to tension and deformation; alloy steel lifting lugs are highly wear-resistant, through-type welding, and high strength;

Hydraulic oil pumps, cylinders, and multi-way valves are all domestic well-known brands, alloy steel swing arm system, safe and stable, reliable performance, and durable.

The dual-cylinder outriggers designed at the rear of the vehicle are located on the left and right sides, respectively, and are controlled by hydraulic multi-way valves, which increase the stability of the vehicle during hoisting operation, and it is safe and reliable.

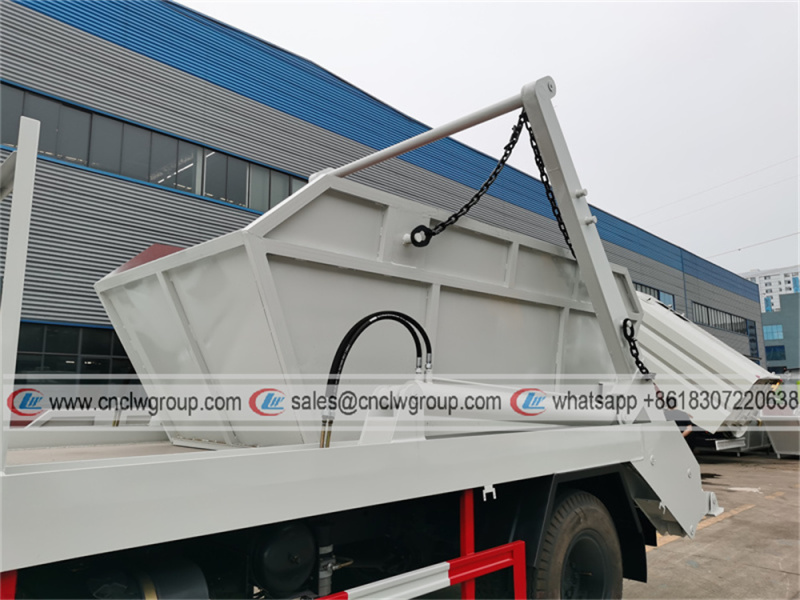

Waset bin: 7cbm volume bin, boat shape, 3mm side, 4mm bottom plate, waste bin is full welded, no leakge of water or liquid.

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
