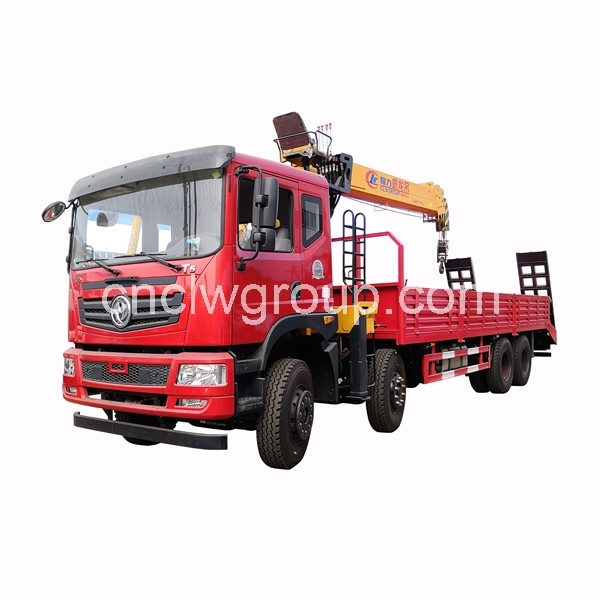

8x4 Flatbed Truck mounted 8 Tons Boom Crane

Dongfeng 8x4 260HP Euro3 truck
Gross weight: 31000kg
Transmission: 9-speed manual gearbox
Tir: 12+1 pcs 11.00-20 radial tire
Crane lifting capacity: CLW SQ8.0-4 8 tons crane
Crane type:  telescopic straight boom, 4 section arm
Max lifting height: 15

【Chassis Parameters】

Dongfeng T5 new cab 8x4 chassis, condition new, 2050+4350+1350mm wheelbase, Yuchai 260HP Euro3 dieseI engine, 9-speed transmission, 11.00-20 nylon tires, with one spare tire, 2x 5 ton front axle, 2x 10 ton double-mounted wheel reduction rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

- CLW SQ8.0-4 tons crane, 4-section arm, max lifting height 15.6m, max working radius 13.5m, 360° slewing, double side operation, with remote throttle, radiator, lighting, leveling bubble, etc.

- Cargo box is flatbed type for carrying excavator,  rear with two pcs spring ladders;  side wall height 550mm.


【Vehicle Basic Parameters】

Model CLW5311JSQD3
Chassis brand Dongfeng
New or Used New
Overall dimension 12000x2500x3750mm
Cargo box 8200x2300x550mm
Gross weight 31000kg
Curb weight 13800kg
Load 20~25 tons
Wheelbase 2050+4350+1350mm
Engine power Yuchai 260HP
Fuel type DieseI
Transmission 9-speed
Brake air brake
Axle load front axle 2x 5 tons, rear axle 2x 13 tons
Tire 12+1 pcs, 11.00-20
Max speed 90km/h

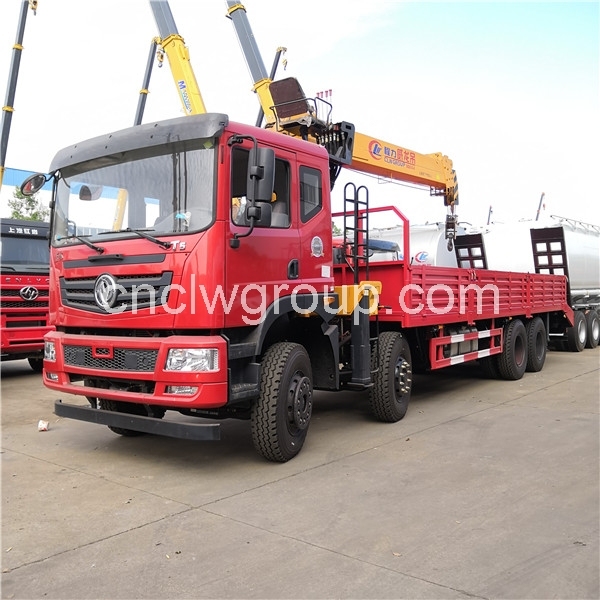

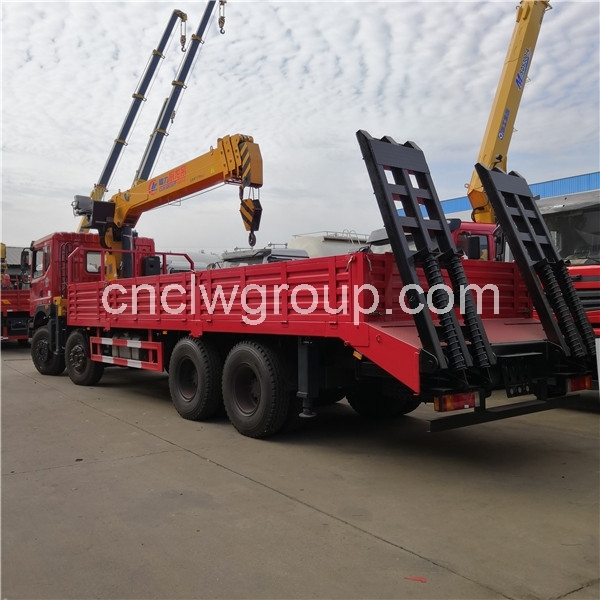

Multi-directional Pictures:


SQ8.0-4 8 TONS Crane Parameters:

Model SQ8.0-4
Brand CLW
New or Used New
Max lifting weight 8 tons
Max torque 200 kN.m
Max lifting height 15.6m
Max working radius 13.5M
Slewing angle 360 degree
Front Outrigger Front hydraulic extension outrigger
Rear Outrigger Hydraulic outrigger
Control Double side linkage operation
Special Remote throttle, lighting, leveling bubble, etc


As model changes or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
