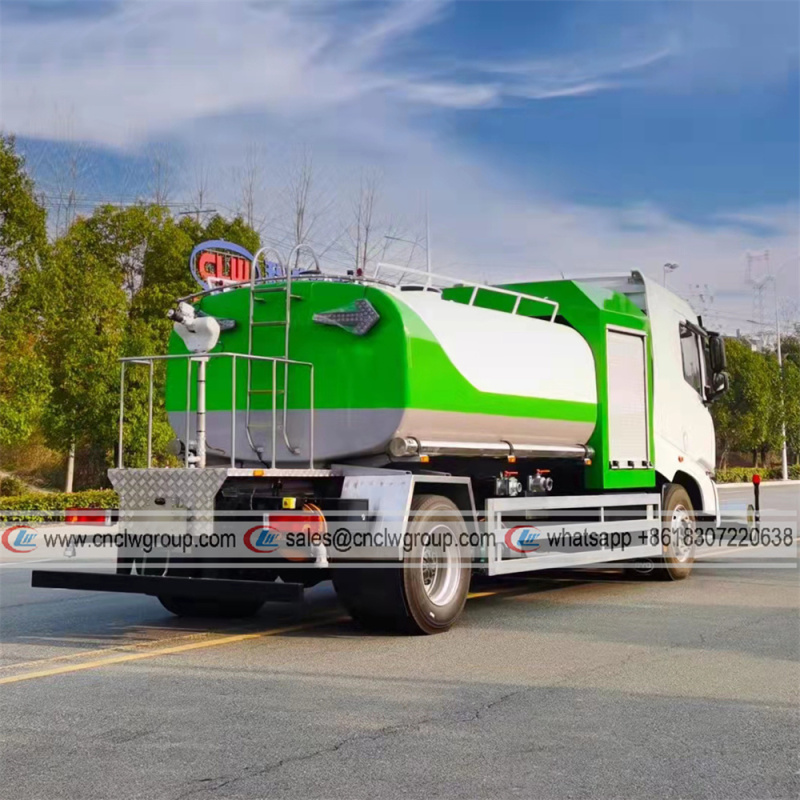

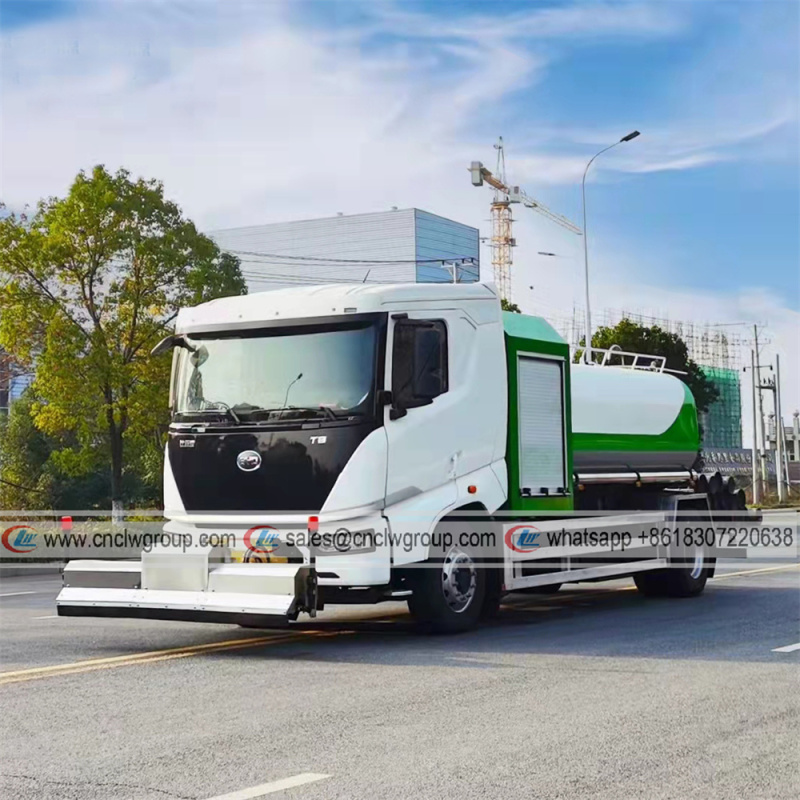

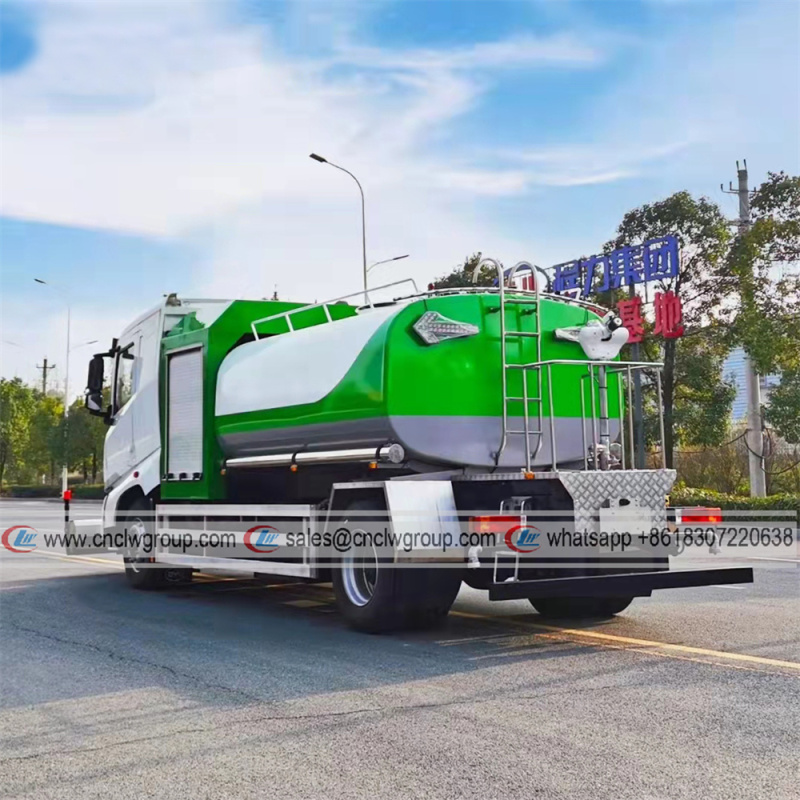

BYD T8 Electric Water Sprinkler Truck

【Chassis Parameters】

BYD T8 electric chassis, luxury T8 cabin, 4500mm wheelbase, BYD 217KWH battery, 640V battery set voltage, chassis motor maximum power 180kW, chassis full load cruising mileage 210km,  10.00R20 radial tires, with one spare tire, 6.5 ton front axle, 13 ton rear axle, air brake, power assist steering, etc.

【Upper Structure Parameters】

Electric water sprinkler upper configuration:

The chassis battery provides power and is driven by a permanent magnet synchronous motor. The speed can be adjusted in real time as needed. The power take-off operation has nothing to do with the chassis driving system, and the car experience is excellent. Carbon steel box with anti-corrosion and anti-rust, low water level alarm system. The interior of the cab is equipped with a reversing image and an indoor monitoring system for electronic water cannons, 60/90 or 50/110 centrifugal low-pressure water pumps, front flushing, rear sprinklers and stainless steel electronic water cannons are all automatically controlled. Aluminum alloy rear plate, side protection, etc.

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
