Cheap Sale Chengli 14m3 Rear Loader Waste Compactor Garbage Compressor Truck

Chengli 14m3 garbage compressor truck
Cummins 190HP Euro3 engine
Manual 8-speed transmission
10.00-20 tires
14m3 volume, 5mm side wall, 5mm bottom plate
Rear waste bin flip device, intelligent control system+manual control+inside cab controlled

【Chassis Parameters】

Cab chassis of Chengli 14m3 garbage compressor truck, condition new, 3 seats with a sleeper, 4700mm wheelbase, Cummins 190HP Euro3 dieseI engine, manual 8-speed transmission, 10.00-20 tires, with one spare tire, 5 ton front axle, 10 ton rear axle, air brake, power assist steering, air conditioning, etc.


【Upper Structure Parameters】

Chengli produced garbage compressor trucck upper body, with 14 cubic meter volume box, rear with waste bin flip device, can flip 120L/240L/660L waste bins, control panel+manual lever+inside cab controlled. The new flat arc-shaped car body, the material of the car body is high-quality carbon steel of Wuhan Iron and Steel, the effective compression volume is 14 cubic meters, PLC one-key operation control, integrated flashlight operation mode, dual electric control on both sides, with cab operation, and strengthened floor support, Two-way compression, open and easy-to-clean sewage tank. The compression garbage truck adopts electro-hydraulic integration technology, with the help of automatic control system of machine, electricity, and hydraulic, computer control, manual operation system, and special devices such as filler and dozer to realize garbage dumping, crushing or squashing , Powerful loading, squeezing the garbage into the carriage, compacting and unloading, all the sewage enters the sewage collection tank, which solves the problem of secondary pollution in the garbage transportation process. The compression garbage truck has the functions of automatic repeated compression and peristaltic compression. It has the advantages of high compression ratio, good sealing performance, large loading capacity, convenient operation, good environmental protection, and high utilization power of the whole vehicle. The operation is automated, and the garbage collection method is simple and efficient. Optional rear turning mechanism of garbage compactor truck: 1. Hanging plastic bucket turning mechanism; 2. Hanging iron barrel turning mechanism; 3. Swing arm turning mechanism; 4. Dustpan bucket turning mechanism.

Model CLW5160ZYSD3
Chassis brand Chengli
Wheeldrive 4x2, LHD
New or Used New
Overall dimension 8650x2500x2850mm
Gross weight 16000kg
Curb weight 9500kg
Load 10 tons
Wheelbase 4700mm
Engine power Cummins B190-33 190HP Euro3
Fuel type DieseI
Transmission Manual 8-speed
Brake air brake
Axle load 5T / 10T
Tire 6+1 pcs, 10.00-20 tires
Max speed 90km/h
Superstructure Parameters

Volume:  14 m3

Material of waste body: 5mm side, 5mm bottom

Rear loader mechanism: waste bin flip-over board, for 120L/240L/660L waste bin or customized for 1100L waste bins

Control: manual operate lever + electric-hydro control box + cabin control box

Loading hopper tailgate: 1.5~2cbm

Waste liquid collection tank: included

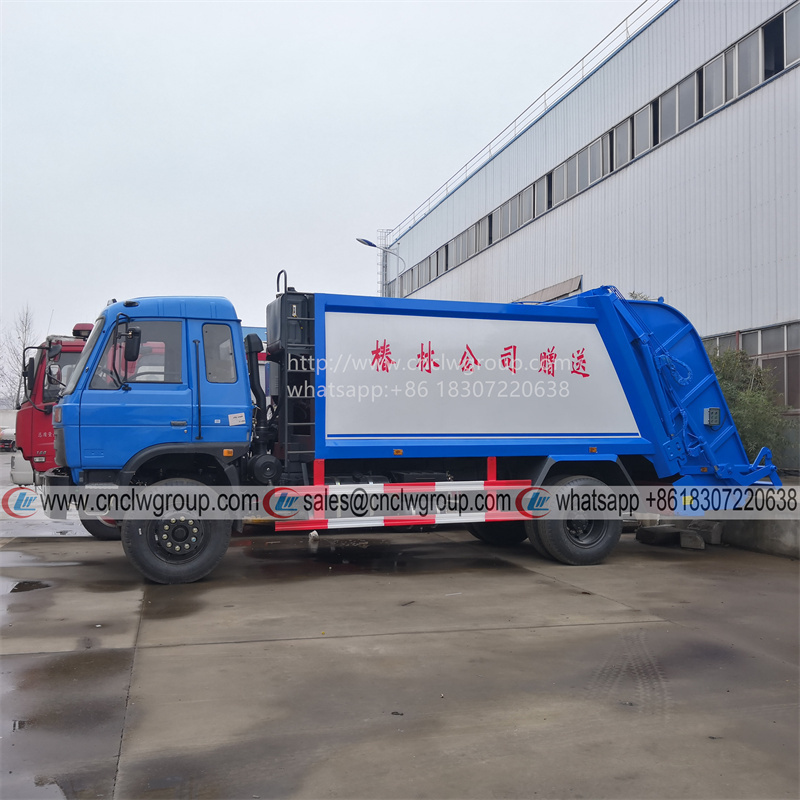

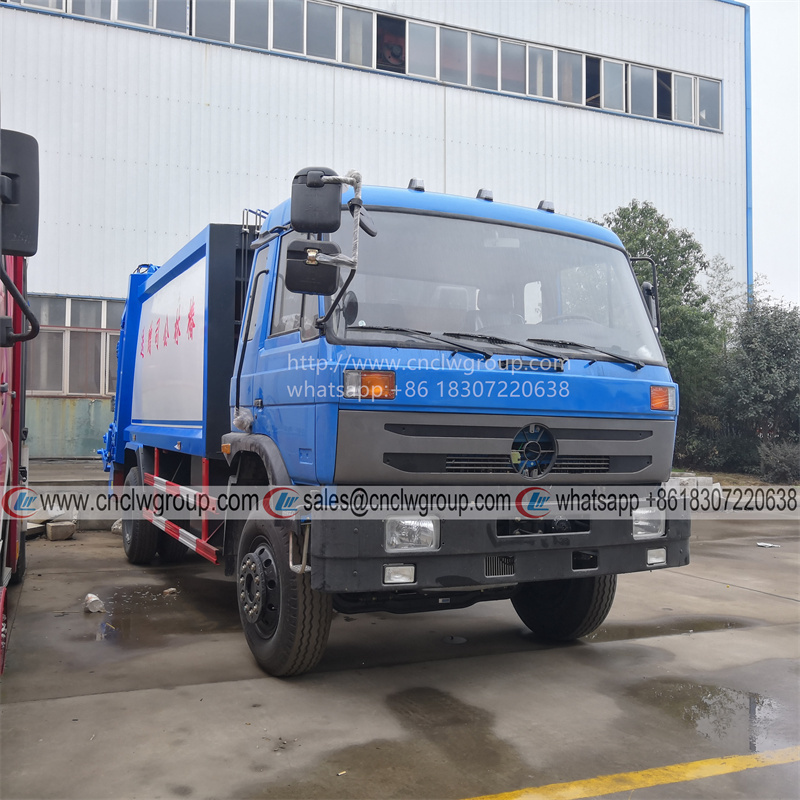

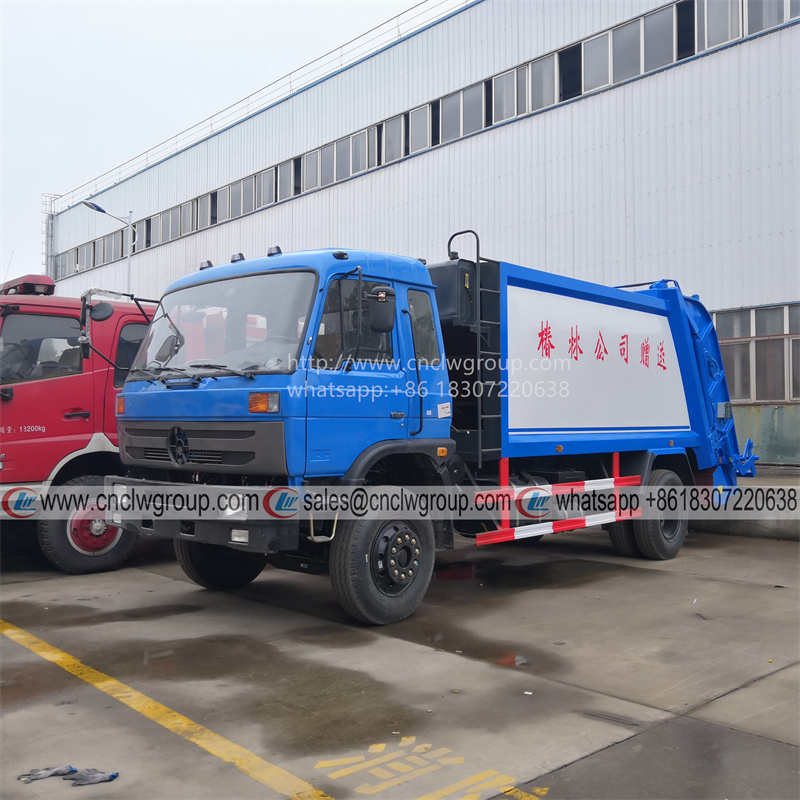

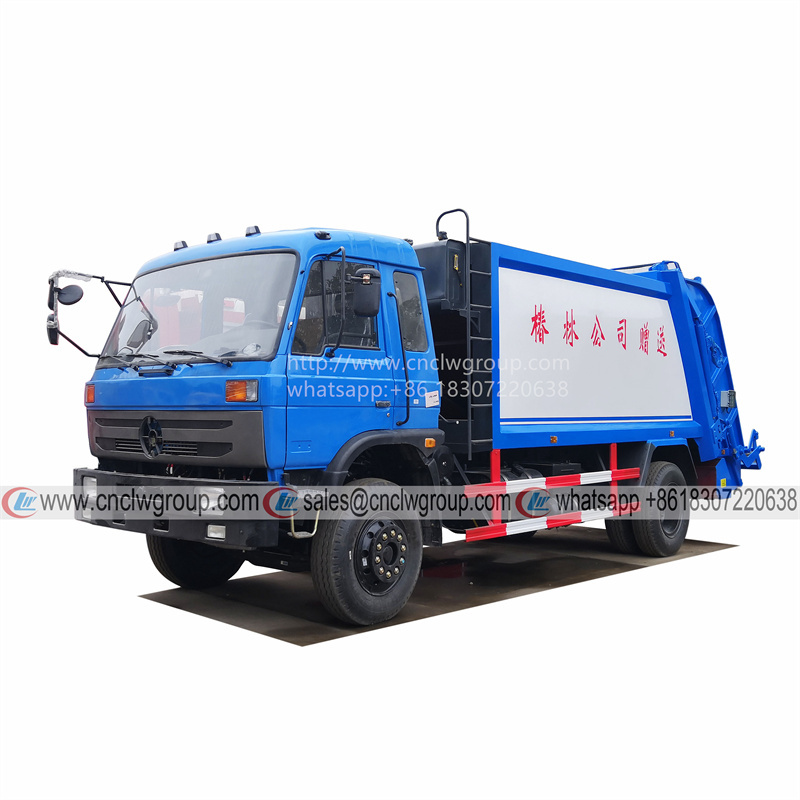

Reference Photos of Chengli 14m3 Garbage Compressor Truck:

Chengli 14m3 Waste Compactor Garbage Compressor Truck

Chengli 14m3 Waste Compactor Garbage Compressor Truck

Chengli 14m3 Waste Compactor Garbage Compressor Truck

[Structures & Features of Garbage Compactor]

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
