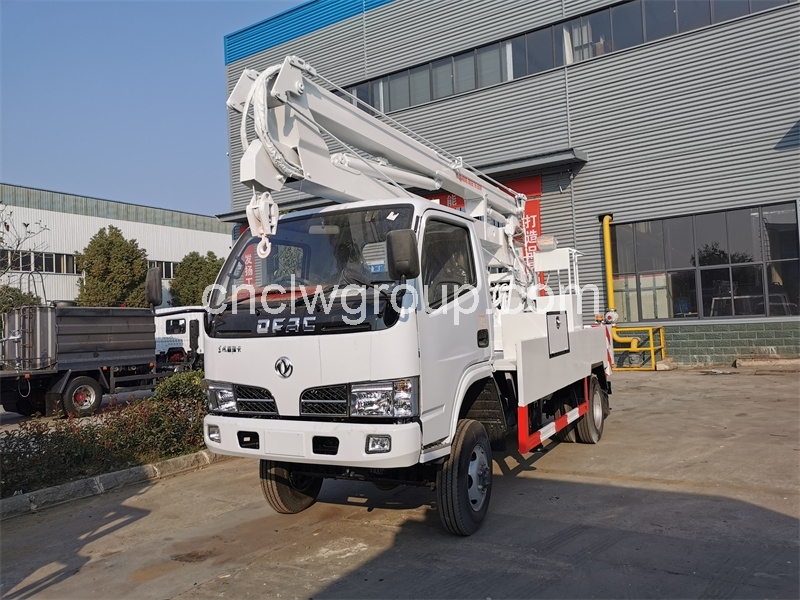

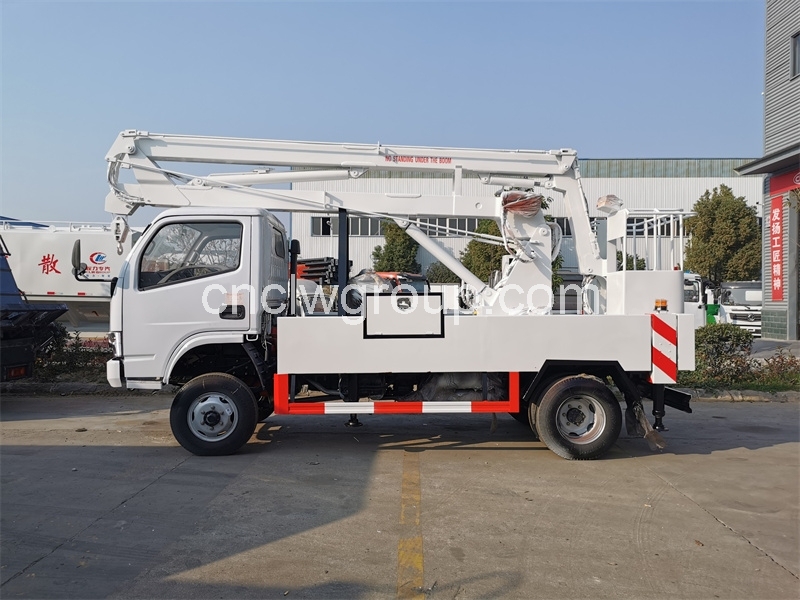

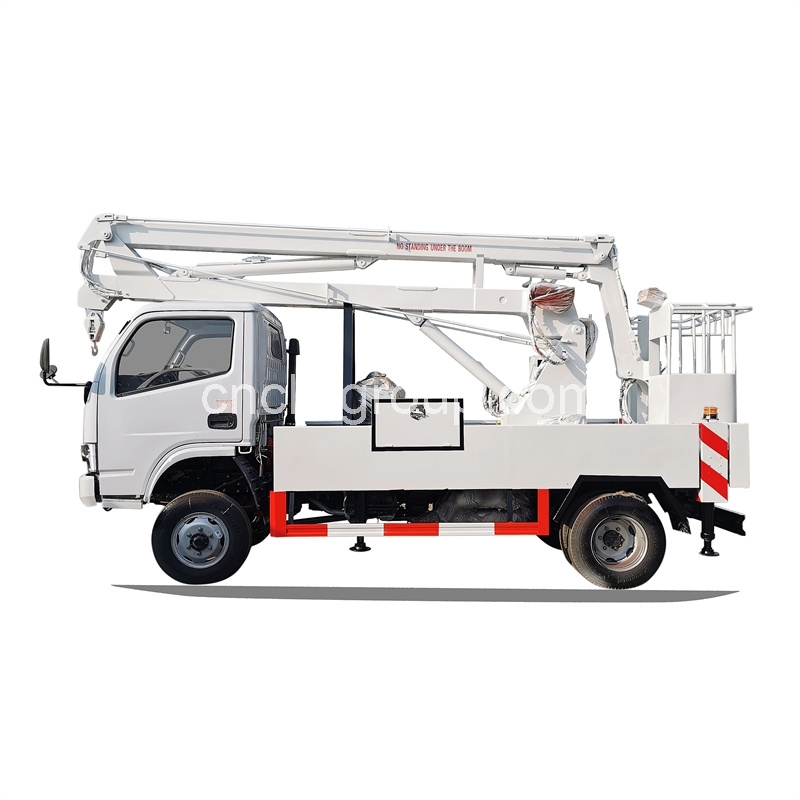

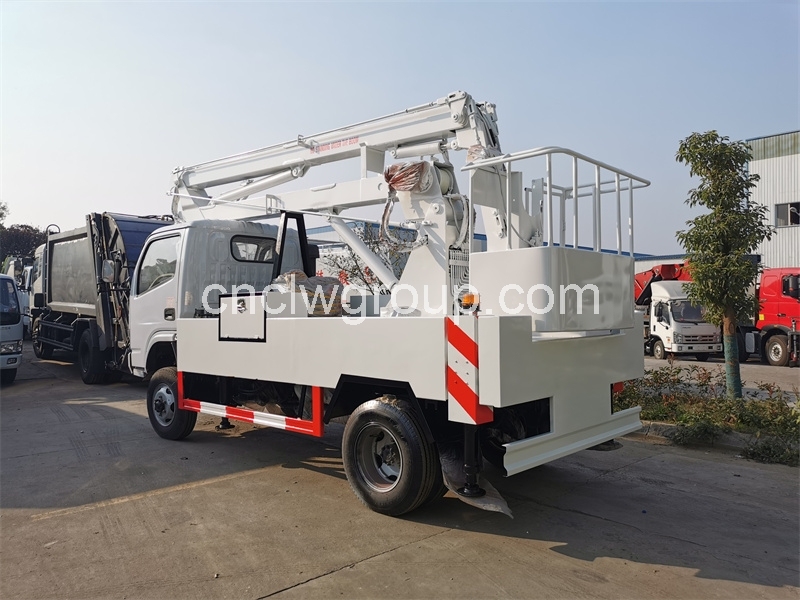

Chengli 12M 14M Articulated Manlift Aerial Truck

- Dongfeng 4x4 4WD 12m articulated manlift aerial truck
- 90HP or 120HP Euro2 engine
- 12m working height, 360° slewing
- Basket 200kg load, ±90° rotary
- 4 pcs hydraulic outriggers
Description
Description

【Chassis Parameters】

Dongfeng 4x4 RHD cab chassis, condition new, single cab, 3 seats, 3300mm wheelbase, Yunnei 90HP Euro3 dieseI engine, 5-speed transmission, 7.00R16 radial tires, with one spare tire, 2 ton front axle, 3.5 ton rear axle, air brake, power assist steering, etc.



【Upper Structure Parameters】

Aerial work trucks refer to special vehicles that transport people and equipment to the scene and perform aerial operations. It has straight telescopic arm aerial truck and knuckle arm aerial truck.

  • Knuckle arm boom system, 3 section
  • Maximum working height 16 meters
  • Turntable 360° slewing
  • Basket 200kg load, size 860x760x1100mm,  ±90° rotary
  • Control operation: at turntable seat and in basekt
  • 4 pcs hydraulic outriggers
  • Engineering rotary lights to warn people



Vehicle Basic Specifications
Vehicle Model CLW5040JGKZD2 Maximum Working Height 12 meters
Chassis brand Dongfeng 4x4 AWD chassis New or Used Condition new
Overall dimension 5600x2000x2800mm Cargo Box Dimension  -
Gross weight 4495 kg Rated Weight  -
Curb weight 4350 KG Wheelbase 3300mm
Axle No. 2 Cab Seat No. 3
Axle Load 2000/3500 kg Fuel Type Diesel
Engine Yunnei 90HP  Steering System LHD, power aissist steering
Transmission Manual 5 - speed Clutch Single dry clutch plate
Brake Air brake Tire No. 6 +1 pcs
Front/Rear Suspension - Tire Model 7.00R16
Fuel Tank 100 liter Battery 24V
Max speed 90km/h
Superstructures Parameters
Model CLW GKZ12 Maximum Working Height 12 meters
Boom Type 3-section arm, telescopic arm Maximum Working Radius 5.6 meters
 Basket Dimension 1000x760x1100 mm Slewing Angle 360°
 Basket Load 200kg  Outrigger Front H rear H shape hydraulic legs
Basket Slewing ± 90 degree Outrigger Span

Horizontal 3.2 meter, Vertical 3.5 meters

Operation System

One set at down turntable position,  one set on upper basket.

Safety System

1. Outrigger leveling bubble;

3. Up and Down operation anti-lock, Upper operation on basket & down operation at turntable can't operation at the same time;

4. When people on basket, outrigger operation is locked, can't operate,  to prevent damage happened;

5. Emerngecy pump is installed to prevent emergency situation.

































































【Aerial Work Truck Customer's Feedback

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
