【Chassis Parameters】
3 axle low bed semi trailer, 3 pcs FUWA 13 Tons axle, 12 pcs 8.25R20 radial tires, 90# kingpin, 28 Tons support outriggers, with heavy strengthened I shape 520mm main beam, gooseneck structure.
【Supperstructures】
Gooseneck structure low bed trailer, gooseneck section length 3800mm, straight section load platform flatbed dimension 8,200x3,000mm, with 5mm steel deck plate, 16mm top wing plate, 12mm middle support plate, 14mm down web plate, 520mm "I" main beams, very heavy strengthened structures for super heavy excavators, bulldozers, and other heavy machines; which is 25%~35% thicker and heavier materials compared with other cheap low bed trailer from other factories. This is real heavy load structure and performance low bed trailer with heavy load, strong structure and long service life. Chengli made low bed trailer is real Genuine unit, It's not a bargain to cut corners！Rear with two pcs mechanical spring ladders as a climbing ladder, we also provide hydraulic ladders optional for our clients.
【Vehicle Basic Parameters】
|
Main Dimensions |
|||
|
Overall Size |
12000*2500*2850mm |

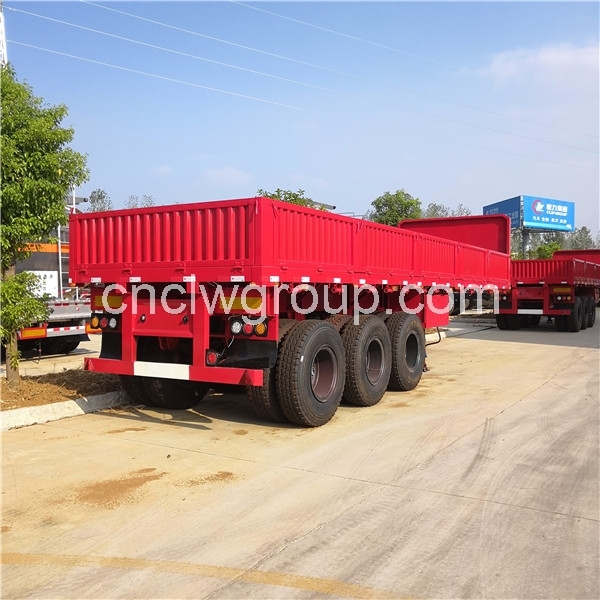

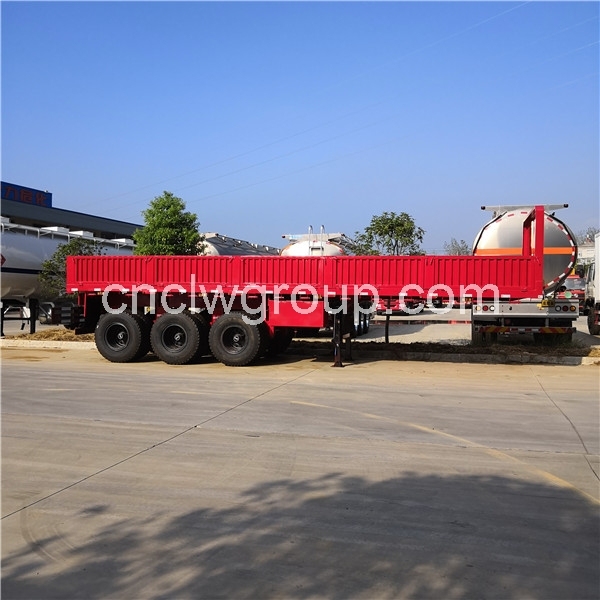

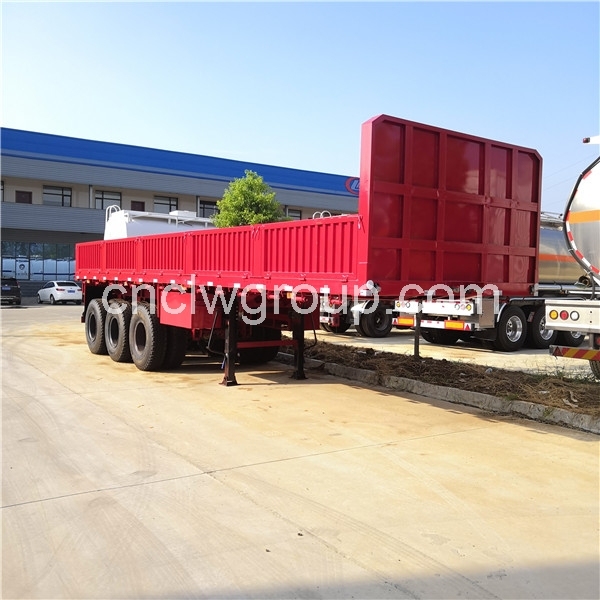

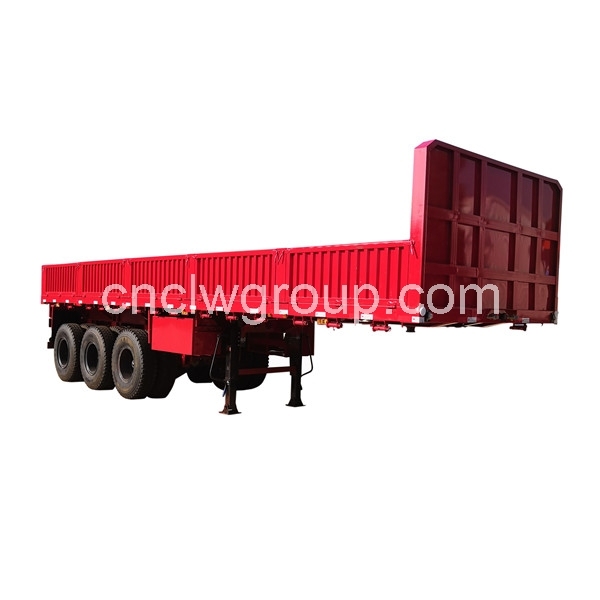

CLW9403TZH 3-axle Fence Cargo Trailer |
|
|
Tare Weight |
6800kg |
||
|
Cargo Trailer Upper Structure |
|||
|
Load Capacity |
50-60 tons |
||
|
Shape |
Straight type, no gooseneck |
||
|
Cargo Box Dimension |
(Length x Width x Height) 11800 x 2500 x 550 mm |
||
|
Material |
Four side wall: 2mm wave plates Floor deck plate: 3mm steel plate |
||
| Side Opening Door |
Per side with 5 pcs opening doors, manual lever locks |
||
|
Rope hook & tighter |
Per side with 12-15 pcs depends on length of trailer |
||
|
Chassis |
|||
|
Main Beams |
320mm strengthened quality "I" main beam |
||
|
Axle |
3*13 Ton FUWA axle |
||
|
Landing Gear |
JOST brand Two-speed, manual operating, heavy duty landing gear |
||
|
King Pin |
JOST brand 3.5” bolt-in king pin |
||
|
Suspension |
Multi-leaf spring suspension |
||
|
Pneumatic Braking System |
WABCO RE 4 relay valve; Spring brake chamber; with air tanks. |
||
|
Tire |
12R22.5 tubeless tire, 12 pieces |
||
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
||
|
Electrical |
7-core electric wire, 5-core for brake |
||
|
Voltage |
24V |
||
|
Lamps |
Taillamps, side warning yellow lights, etc. |
||
|
Accessories |
One standard tool box |
||
【Different Choices of Fence Cargo Trailer】
From Axle: 1 axle, 2 axle, 3 axle, 4 axle, 6 axle low bed trailer;
From Load: 15 tons to 100 tons low bed trailer;
From Functions: straight flatbed low bed trailer, tire-exposed low bed trailer, hydraulic gooseneck detachable low bed trailer, multi-line multi-axle low bed trailer.
Please contact us for more details.
