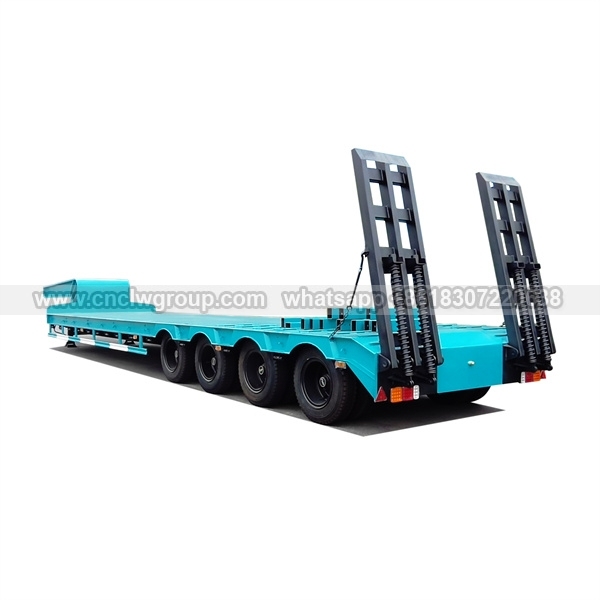

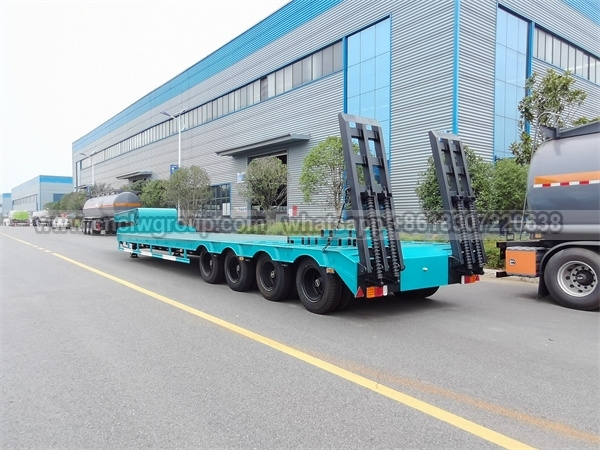

Chengli 4 axle 60 ton Low Bed Trailer

CLW9600TPB 4-axle Low Bed Trailer
Rated Load: 60 Tons
Straight section flatbed size: 8,500x3,000 mm
Ladder: Two pcs mechnical spring ladders
Axle: 4 axle, 13 Tons FUWA axle
Tire: 16 pcs, 8.25R20 radial tire
Kingping: #90 3.5 inch
Outrigger: 28 tons

【Chassis Parameters】

Chengli CLW 4 axle low bed semi trailer, 4 pcs FUWA 13 Tons axle, 16 pcs 8.25R20 radial tires, 90# kingpin, 28 Tons support outriggers, with heavy strengthened I shape 520mm main beam, gooseneck structure.

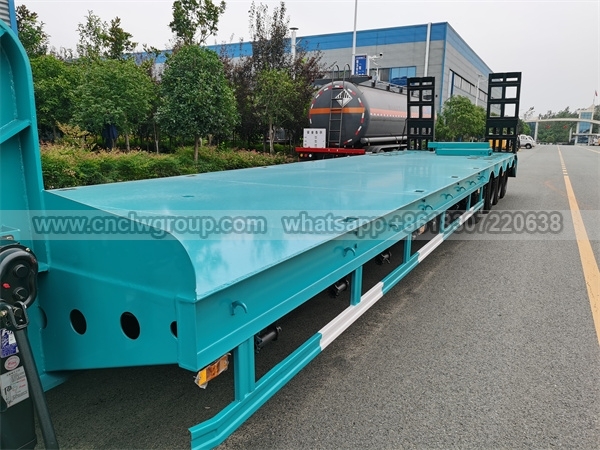

Gooseneck structure low bed trailer,  gooseneck section length 3800mm, straight section load platform flatbed dimension 8,500x3,000mm, with 5mm steel deck plate, 16mm top wing plate, 12mm middle support plate, 14mm down web plate, 520mm "I" main beams, very heavy strengthened structures for super heavy excavators, bulldozers, and other heavy machines;  which is 25%~35% thicker and heavier materials compared with other cheap low bed trailer from other factories.  This is real heavy load structure and performance low bed trailer with heavy load, strong structure and long service life. Chengli made low bed trailer is real Genuine unit, It's not a bargain to cut corners!Rear with two pcs mechanical spring ladders as a climbing ladder, we also provide hydraulic ladders optional for our clients.


【Vehicle Basic Parameters】

Main Dimensions

Overall Size

13000*3000*1800, 3200mm

CLW9600TPB 4-axle Low Bed Trailer

Tare Weight


Low Bed Structure

Load Capacity

60 tons  (optional from 40 tons to 100 tons)


Gooseneck type

Gooseck Section Length

3800 mm length

Straight Section Dimension

(Length x Width) 8500 x 3000 mm


Top wing plate: 16mm

Middle support plate: 12mm

Down web plate: 14mm

Deck Plate

5mm quality checkered plate

Rear Loading Ladder

Two pcs mechanical spring ladders, with safety chains

Rope hook & tighter

Per side with 12-16 pcs depends on length of flatbed


Main Beams

520mm strengthened quality "I" main beam


4*13 Ton FUWA axle

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

King Pin

JOST brand 3.5” bolt-in king pin


Multi-leaf spring suspension

Pneumatic Braking System

WABCO RE 4 relay valve; Spring brake chamber; with air tanks.


8.25R20 tubeless tire, 12 pieces


Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint


7-core electric wire, 5-core for brake




Taillamps, side warning yellow lights, etc.


One standard tool box


【Different Choices of Low Bed Trailer】

From Axle: 2 axle, 3 axle, 4 axle, 6 axle low bed trailer;

From Load: 15 tons to 100 tons low bed trailer;

From Functions: straight flatbed low bed trailer, tire-exposed low bed trailer, hydraulic gooseneck detachable low bed trailer, multi-line multi-axle low bed trailer.
