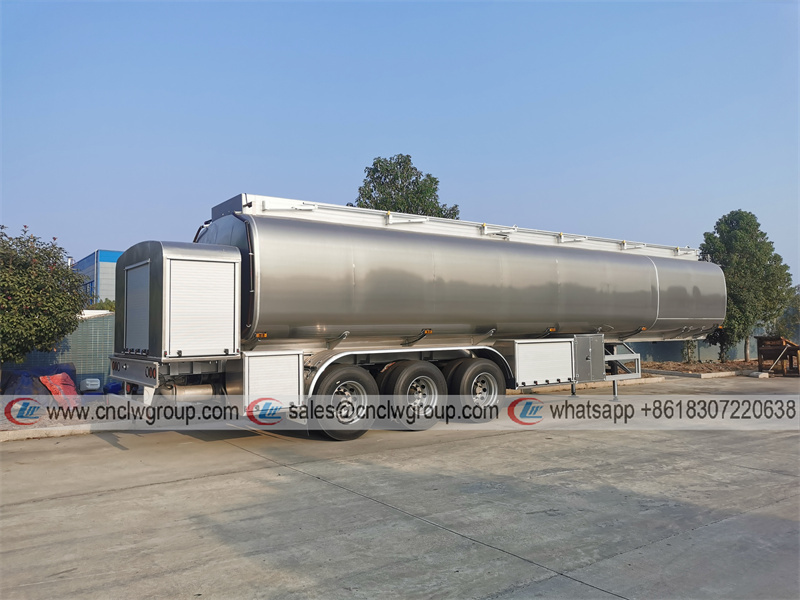

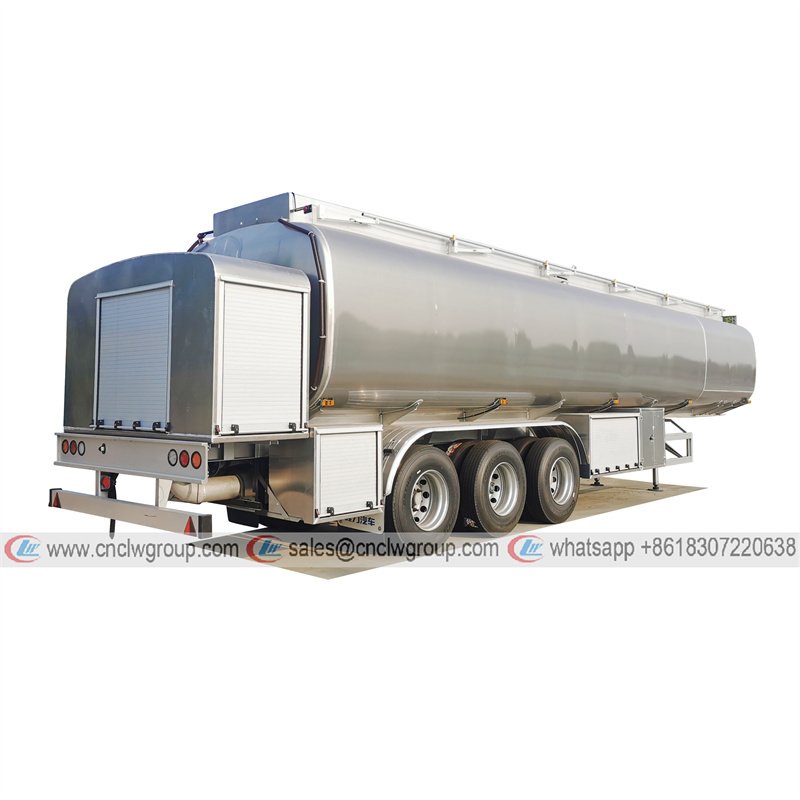

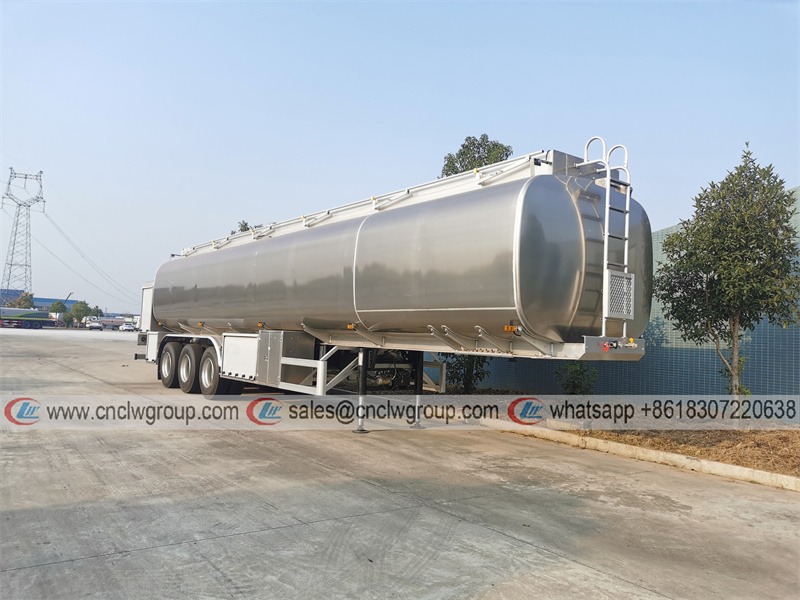

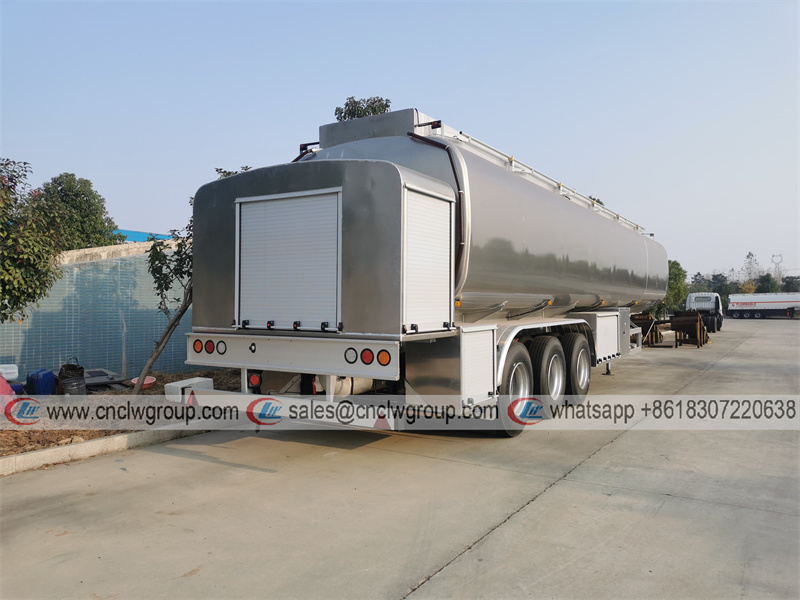

Chengli 50,000 liter Aluminum Alloy Fuel Tank Trailer

【Chassis Parameters】

3 axle semi trailer, FUWA 13 Tons axle, 12 pcs 12R22.5 tubeless tires, 90# kingpin, 28 Tons support outriggers, rear bumper, tool box, valve box, etc.

【Supperstructures】

Chengli made aluminum alloy fuel tanker semi trailer: 50,000 liter tank body, 6mm 5182 aluminum alloy plate made tank body, 6mm 5182 aluminum alloy made tank end plate;  tank has 5 pcs division compartments, per one 10,000 liter volume; with 5 pcs API Euro standard manhole covers, 5 pcs API fast discharge valves, 5 pcs subsea emergency safety valves; all accessories like top protective handral, rear ladder, hose box, rear bumper, mudguard, side fences, all made of aluminum alloy plates.

【Vehicle Basic Parameters】

【Structures of Aluminum Fuel Tank】

Chengli aluminum alloy fuel tank trailer has over 17 years experiences on the advanced manufacture process. The main components of Chengli CLW aluminum alloy fuel tank trailer including aluminum alloy made tank body, aluminum alloy under auxiliary beam, aluminum API discharge valves, subsea emergeny safety valves, aluminum Euro standard manhole covers, oil vapor recovery system, anti-overflow rod, pneumatic control switch, anti-skid walk way on top of tank, protective handrails, aluminum made ladder,handrail, protective fence, rear bumper, mudguard, etc, all accessories made of aluminum alloy.  Now Chengli aluminum fuel tanker semi trailer is one of the best in the industry on its quality, designs, performances and price.  Contact us for more details now!

【Special Features of Aluminum Fuel Tank】

Standard configuration of Chengli CLW Aluminum Fuel Tank Trailer :

Tank volume of 40 cubic to 52 cubic meters, Medium: Diesel, Gasoline

1. The tank body is made of 5182 aluminum-magnesium alloy;

2. The tank head is 6mm, the cylinder is 6mm, the anti-wave board is 5mm, and the silo board is 6mm;

3. 13-Ton FUWA axle is used for axles, with 26 tons brakes with ABS;

4. The tire adopts: 12.00 tubeless tire with 12 ordinary steel rims;

5. Adopt Multi Leafs Spring steel plate type mechanical suspension;

6. The sub-beam of aluminum alloy fuel tank trailer adopts high-strength steel;

7. Aluminum alloy complete set of European standard (including two European standard tank ports, one subsea valve, one set of oil and gas recovery, and download oil);

8. Accessories: rear bumper, movable guardrail, a tool box, a European standard export box, and the side guardrail are all made of aluminum alloy;

9. 1 600L galvanized water tank, 2 spare tire racks, 28 ton outriggers, 2 8kg fire extinguishers, 3 notice boards.

10. Imported cyan lacquer on natural surface, 3M reflective tape

Optional configuration:

1. Sub-warehouse: without European standard sub-warehouse, with European standard sub-warehouse

2. Axle: BPW bridge or Huajin bridge can be selected

3. Air suspension: optional aluminum alloy sub-beam

      a, Fuhua Air Suspension

      b, BPW air suspension

      c, Huajin Air Suspension

4. Tires: optional double money, Bridgestone, triangle

5. Steel ring: ordinary aluminum alloy steel ring, Zhengxing aluminum alloy steel ring can be selected

6. Outrigger: optional Yost, Fuhua

7. Water tank: aluminum alloy water tank with water tank installed on the top of the tank

8. Discharge port: increase single outlet and double outlet (subsea valve, pipeline, discharge assembly, outlet box)

9, optional pneumatic guardrail

【Manufacture Process of Aluminum Fuel Tank】

A quality Chengli made aluminum alloy fuel tank trailer is after design, cutting, welding, rolling, splicing, X-ray test, painting and then finish.  Every step is the best quality control by our fuel tank manufacturing workers.

【Manufacture Process of Aluminum Fuel Tank】

We can provide different brand tractor head for our company made aluminum alloy fuel tank semi trailer, Dongfeng tractor head, Howo tractor head, SHACMAN tractor head, SAIC IVECO tractor head, FOTON tractor head, ISUZU tractor head, Beiben tractor head, FAW tractor head, etc.  Please directly contact us for its specifications and price!
