Chengli 8x4 30-40 Tons Self Loading Truck with Winch

- Dongfeng 8x4 30-40 tons Self Loading Truck with Winch
- Yuchai 260HP Diesel engine
- Winch: 8 tons hydraulic winch
- Flat bed dimension: 8200x2500, 3000(mm)
- Front lifting outrigger: 40 ton hydraulic lift weight
- Spring ladder: Mechanical or Hydr
Description
Description

【Chassis Parameters】

Dongfeng 8x4 30-40 tons self loading flatbed truck with winch adapts Dongfeng 8x4 12 wheeler heavy duty dedicated chassis, condition new, Kingrun new cabin, 3 seats with a sleeper, Yuchai 260HP or Weichai 340HP dieseI engine, Manual 9-speed transmission, 11.00R20 radial tires, with one spare tire, 2x 6.5 ton front axle, 2x 13 ton rear axle, air brake, power assist steering, with air conditioning, power window, etc.

【Upper Structure Parameters】

Dongfeng 8x4 30-40 tons excavator self loading flatbed truck with 8 ton hydraulic winch, with hydraulic lift outriggers leg installed behind cabin, 30, 40 tons heavy lift capacity, which can be used to lift the flatbed truck to make a ramp of the flat deck bed, for a easy climb or loading onboard for excavators or cars or machines. It is mainly used for carrying excavator, bulldozer, loaders, road rollers, large agricultural machinery, etc. Traditional flatbed truck with two pcs ladders for climbing up, but is very dangerous and for some crawler-type or large machinery is prone to rollover due to the corners of the platform and ladder when getting on the vehicle. Chengli CLW produced self loading flatbed truck, installed a heavy lifting front outrigger at front of flatbed, behind cabin,  it can lifting the truck to give the flat deck plate a tilt angle, so that any truck or machinery can easily climb onto the flat bed,  and on the front of the deck bed, can install hydraulic winch, 5 tons, 8 tons, 10 tons, 20 tons to pull up fault vehicles or machines.



Model CLW5310TPBD3
Chassis brand Dongfeng
New or Used New
Overall dimension(mm) 11400x2500x3300
Flatbed dimension(mm) 8200x2500, 3000(extension to 3 meters)
Hydraulic lift outriggers 30 tons, 40 tons lifting capacity for optional
Gross weight 31000kg
Curb weight 13100kg
Load 30-40 tons
Wheelbase(mm) 1850+4500+1350
Engine power

Yuchai 260HP Euro2/3/4/5

Weichai 340HP Euro2/3/4/5

Fuel type DieseI
Transmission Manual 9 - speed or 10 speed
Brake Full air brake
Axle load 2x 6.5/2x 13 tons heavy duty
Tire 10+1 pcs, 11.00R20 radial tires
Max speed 90km/h
Superstructure

- Hydraulic lift outriggers: 30 tons, 40 tons heavy duty lifting capacity for optional

- Dimension of bed: 8200x2500,3000mm

- Material: 6mm deck plate, under supported with 120x120mm square tube made frame

- Rear ladder: 2 pcs mechanical spring ladders(can choose hydraulic ladders)

- Winch: 8 tons hydraulic winch installed behind cabin

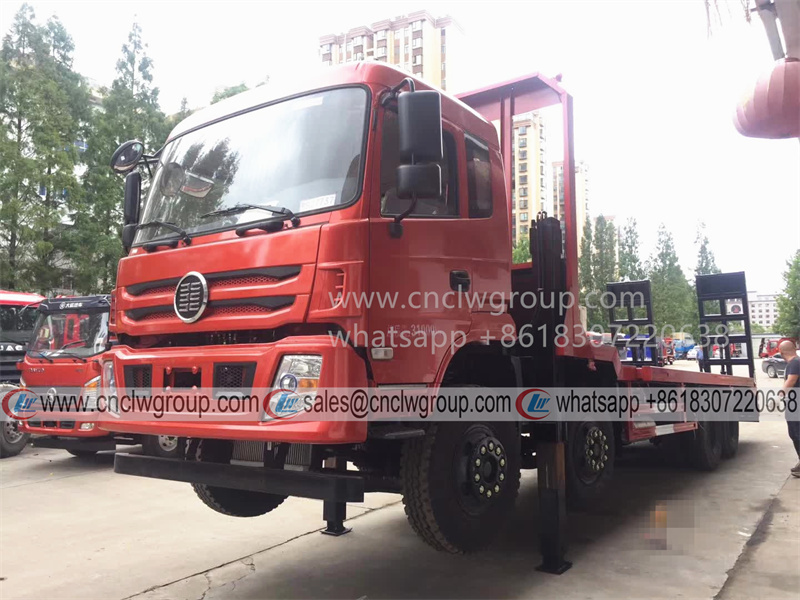

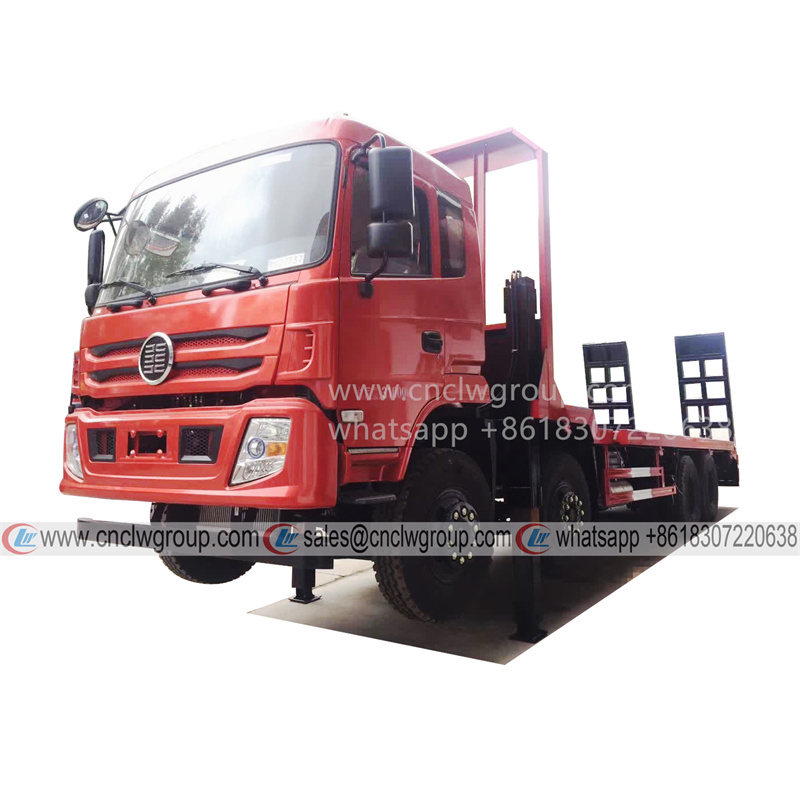

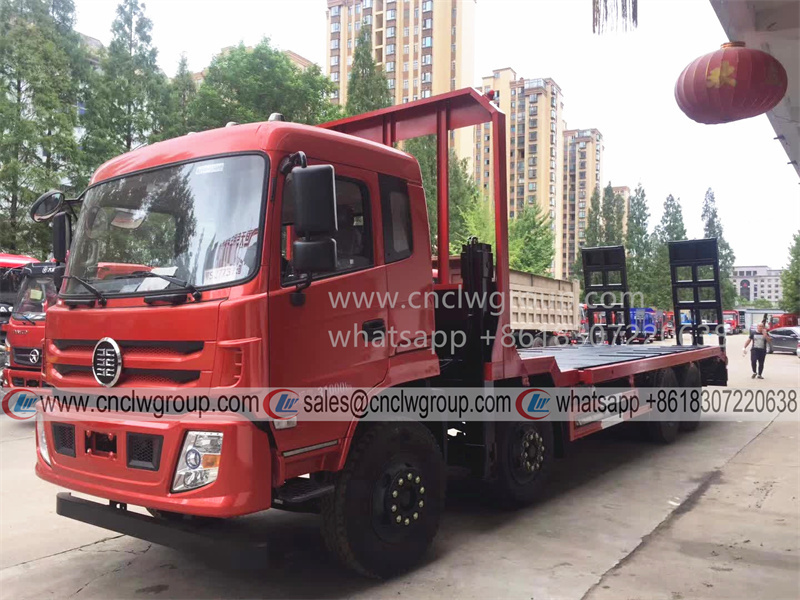

[Multi-directional Images]

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
