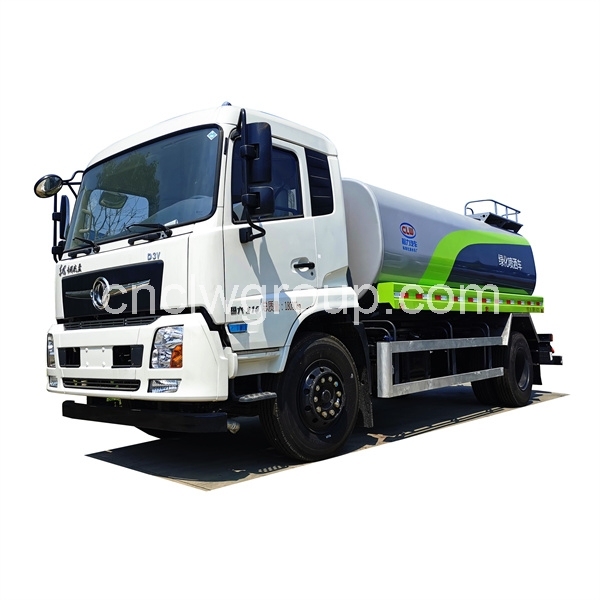

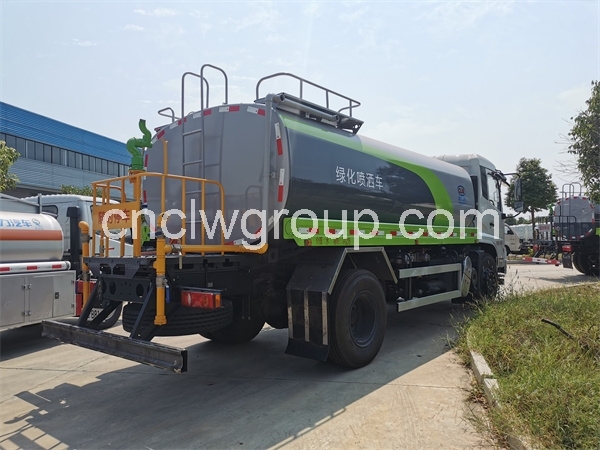

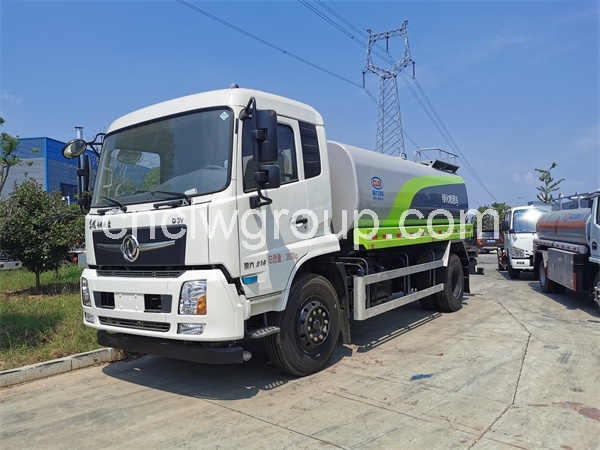

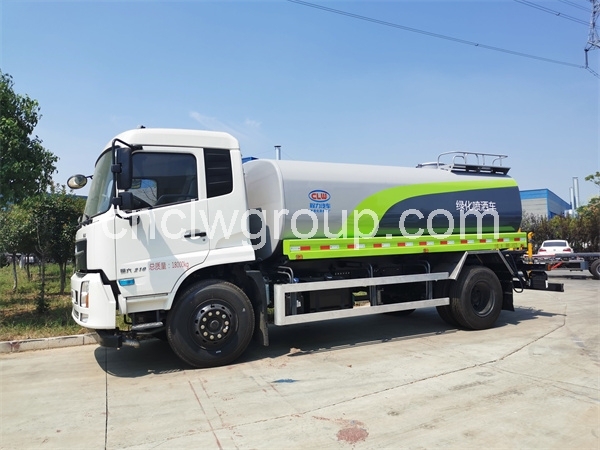

Chengli brand 10,000 liter Water Truck

- Dongefeng 10,000 liter water truck
- Cummins 190HPEuro 3 engine
- 8-speed transmission
- 10.00R20 radial tires
- 10,000 liter carbon steel tank body
- With water pump,front/rear sprayer nozzles/with discharge valves

【Chassis Parameters】

Dongfeng new cab  chassis, condition new, single cab, 3 seats with a sleeper, 4500mm wheelbase, Cummins 190HP Euro 3 dieseI engine, manual 8-speed transmission, 10.00R20 radial tires, with one spare tire, 5 ton front axle, 10 ton rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

- Chengli produced water tank & spraying system, multi functional for water delivery, water sprinkling, emergency fire fighting, spray water dust suppression, etc;

- 10,000 liter carbon steel tank, inside with anti-corrosion treatment, with one DN460mm manhole, rear with a platform and ladder;

- with 60m3/h flow water pump;

- with front/rear/side water spraying nozzles, water spraying range 12-16 meters; with a water cannon, spraying range 28 meters;


Model CLW5180GSSD3
Chassis brand Dongfeng
New or Used New
Overall dimension 7650x2500x3050mm
Gross weight 18000kg
Curb weight 8200kg
Load 10 tons
Wheelbase 4500mm
Engine power Cummins 190HP Euro3
Fuel type DieseI
Transmission Manual, 8-speed gearbox
Brake air brake
Axle load 5/10 Tons
Tire 6+1 pcs, 10.00r20 radial tires
Max speed 90km/h


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
