One. Main Features of CLW brand Cab Chassis:
◆ Cab Range: 1730 new cab, 1735 new cab, 1835 new cab, D912 2080 cab
145 cab, 153 cab, D913 cab, KR cab, KL cab, D916 cab
◆ Steering Wheel Position: LHD(Left Hand Drive), RHD(Right Hand Drive)
◆ Wheeldrive: 4x2, 4x4, 6x2, 6x4, 6x6, 8x2, 8x4, 10x4
◆ Engine Brand: Yunnei engine, Chaochai engine, Yuchai engine, Cummins engine, Weichai engine
◆ Engine Power Range: 80HP, 90HP, 115HP, 120HP, 129HP, 140HP, 156HP, 170HP, 190HP, 210HP, 240HP, 260HP, 270HP, 300HP, 315HP, 340HP, 375HP, 420HP
◆ Emission Compliance Range: Euro2, Euro3, Euro5, Euor6
◆ Transmission Range: WLY 5-speed, WLY 6-speed; Jiangkai-5-speed; DF 5-speed, DF 6-speed; Shaanxi Fast 8-speed, 9-speed, 10-speed, 12-speed;
◆ Front Axle Load: 1.8t, 2t, 3.2t, 3.5t, 5t, 6t, 6.5t, 7.5t, 9.5t;
◆ Rear Axle Load: 3.2t, 3.5t, 4.2t, 5t, 6t, 8t, 9t, 10t, 11.5t, 13t, 16t.
◆ Frame: 750*188*5mm, 755*188*6mm, 800*188*8mm, 800*250*(6+5)mm, 800*232*(7+4)mm,
800*250*(8+5)mm, 800*280*(8+6)mm, 860*300*(8+8)mm, 860*300*(8+8+5)mm
◆ Tire range: 7.00R16, 7.50R16, 8.25-16, 8.25R16, 8.25-20, 8.25R20, 9.00-20, 9.00R20, 10.00-20, 10.00R20, 11.00-20, 11.00R20, 12.00R20, 12R22.5;
Basic Vehicle Parameters of CL-D5 Cab Chassis:
Vehicle Basic Specifications | |
Brand | CLW |
Model | CL1040,CL1050,CL1060,CL1070 |
Cab | 1730 new cabin, flat roof, single row |
Wheeldrive | 4x2 (4x4 optional) |
New or Used | New |
Overall dimension(mm) | 5875×1985×2200mm |
Gross weight(kg) | 4495, 7360 |
Curb weight(kg) | 2150 |
Load Weight(kg) | - |
Wheelbase(mm) | 3300,3800 |
Engine power | 80hp,90hp,115hp,120hp,156hp |
Fuel type | DieseI |
Transmission | Manual 5+1, 6+1 |
Brake | Air brake |
Axle load(front/rear) | Front axle: 1.8 ton, 2 ton; Rear axle, 3.5 ton, 4.5 ton |
Tire | 6+1 pcs, 7.00R16 radial tires |
Frame Beam (mm) | 750x188x5 |
Max speed | 90km/h |

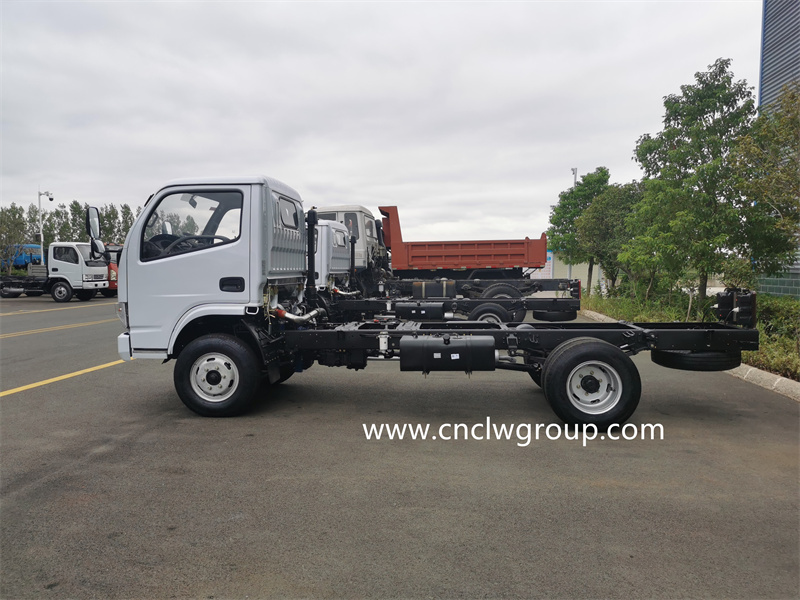

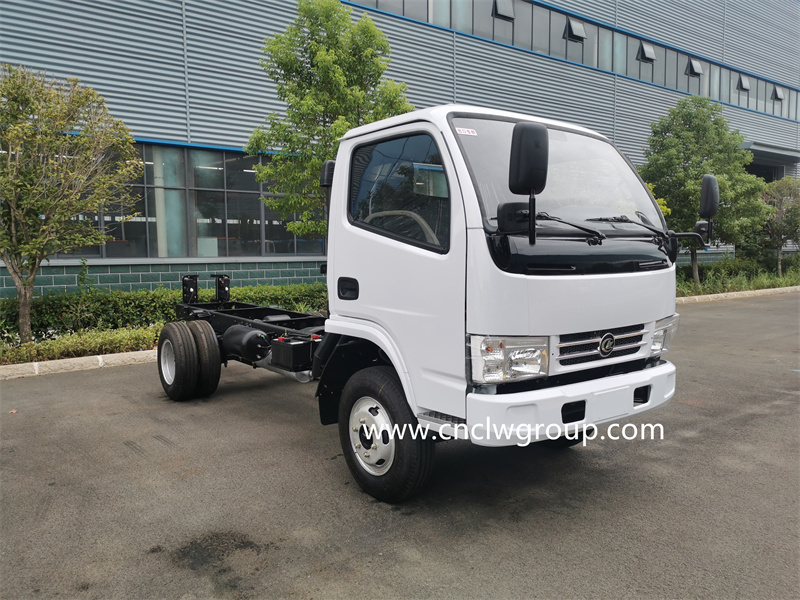

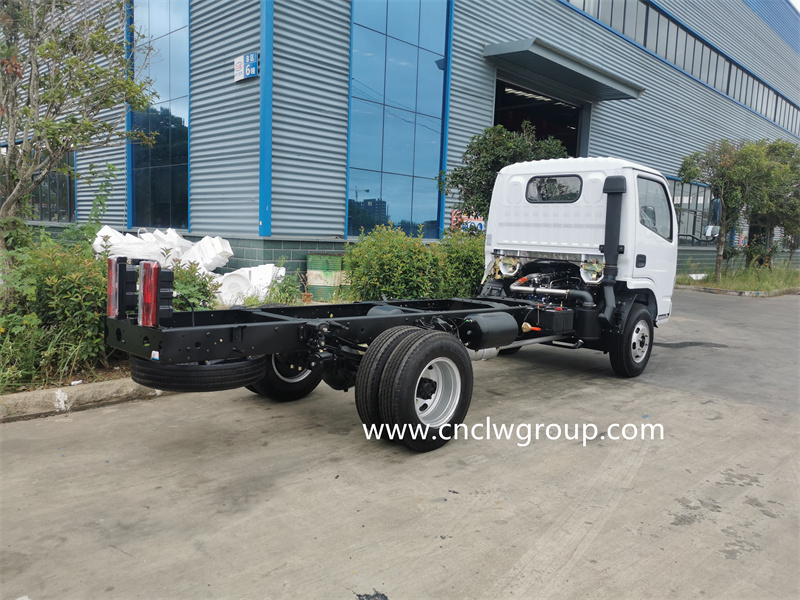

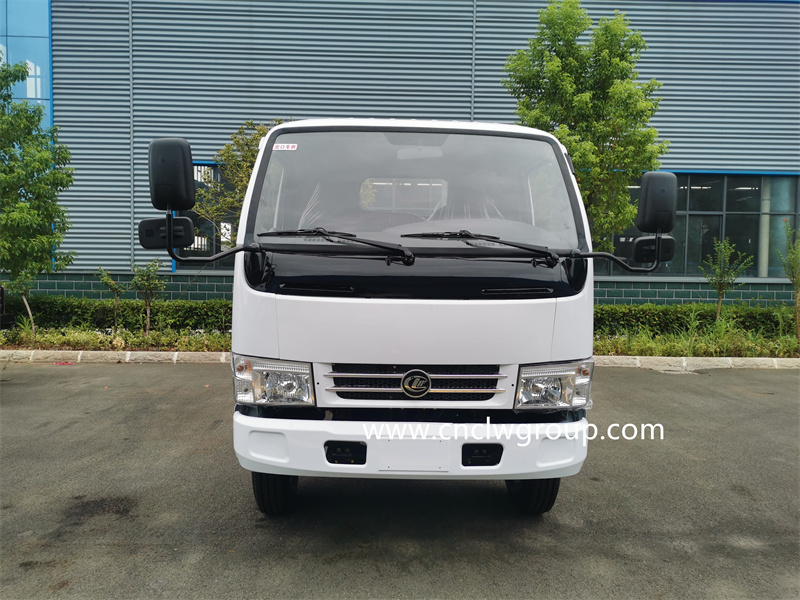

Reference Photos of CL-D5 Cab Chassis:
CL brand cab chassis, including light duty chassis, medium duty chassis, heavy duty chassis;
including 4x2, 6x4, 6x2, 8x2, 8x4, 10x4 wheel drive,
and also 4x4, 6x6 off road AWD chassis production;
CL brand cab chassis has LHD, RHD, Single Cab, Double Cab options for different countries standard.
CL cab chassis accepts OEM production according to your demand, or just use your LOGO to be your chassis brand.
About CL Chassis:
Chengli Special Automobile Co.,Ltd is the only manufacturer of chassis, vehicle modification and new energy vehicles in China. The predecessor of Chengli Commercial Special Vehicle Factory is: Low-speed truck professional factory, established in 2010. Under the wise leadership of the chairman Mr. Cheng Daoguo, and the scientific management and supervision of the general manager Mr. Cheng Aluo, after five years of planning and development, the chassis business has gone from no announcement and no qualifications to gradually obtaining chassis production qualifications, and then To the light truck announcement gradually improved. It has laid a solid foundation for the subsequent acquisition of heavy truck qualifications.
In 2015, in order to seek better development goals and meet the needs of the market, we made strategically important measures, adopted the method of OEM processing, cooperated with state-owned enterprises (China Hengtian, Aerospace Linghe), and shared resources with each other. Jointly developed the market and completed the transition from low-speed trucks to the commercial vehicle market. In 2017, due to the needs of business expansion, our professional factory was moved from the old factory area to the new factory area. The new workshop adopts a modern assembly production line. As a result, the volume of automobile chassis business has experienced a qualitative change. leap. In 2017 and 2019, the output value exceeded 100 million yuan for three consecutive years, ranking among the top among the professional factories of the group. According to the current domestic development data analysis, in addition to the FAW Linghe and Shiyan Shenhe manufacturers, Chengli Commercial is firmly in the top three among the qualified manufacturers. On the road of development, it has won the vehicle production and modification qualifications of light, medium and heavy trucks, and at the same time has expanded the business of pickup trucks and new energy vehicles.
Chengli Special Automobile Co., Ltd. Has a Complete After-sales Service System
In order to make you always satisfied from purchasing, owning and using products, Chengli Special Automobile Co.,Ltd has a nationwide sales and service network to provide you with a full range of services.
◆Training Service
Jiangnan Company provides free expert training for all customers who purchase our products, and the training does not charge any fees.
◆Warranty Commitment
Customers can enjoy up to one year or 25,000 kilometers, and free replacement of parts (excluding wearing parts) damaged due to quality problems during the warranty period. The chassis part is guaranteed by the original factory at the national secondary service station nationwide, and the modified part is provided by our company with the service tenet of the customer being always right, and the service tenet of "customer care and caring for each car". Respond within 12 hours after receiving the letter for help from customers, and do not exceed 24 hours for door-to-door service in inland provinces and cities, and 48 hours for individual areas. Long-term supply of original accessories and accessories to provide accessories at preferential market prices. Overseas customers guarantee to reply within 24 hours and give guidance plan.
◆24 Hours Service
The service tenet is that the customer is always right, the service tenet is to care about the customer and every car, and make a public commitment to the society. , Shanghai, Guangdong, Zhejiang, Fujian, Hainan), no more than 24 hours in inland provinces and cities, and no more than 48 hours in individual areas.
◆Rescue Service
When the customer's vehicle cannot be repaired at the service station due to special reasons, the service station can provide on-site service of vehicles, personnel and accessories to solve the customer's difficulties to the greatest extent and reduce the customer's concerns about using the car.
◆Customer Return Visit
Chengli Special Automobile Co.,Ltd. implements the three-level return visit service of dealers, service stations and return visit consultants, caring about customers, helping customers understand and familiarizing themselves with cars, helping customers to actively digest potential hidden dangers in advance, and improving the effective service life of products. To ensure the interests of customers.
Order Process
①: Car purchase negotiation: Contact the vehicle model information parameters by telephone or on-site inspection to discuss the vehicle model, Beiqi Foton remote water supply forest fire truck price and related requirements.
②: Signing the contract: Both parties sign the vehicle purchase and sale contract and pay the contract deposit in advance (fax signing of the contract or on-site signing of the contract is acceptable).
③: Arrange production: Our company arranges workshop production according to the contract requirements.
④: Delivery of the vehicle: The vehicle is delivered and accepted, the balance of the vehicle is paid, and the relevant procedures are completed. For more detailed car booking process, please inquire!
Answers to the Questions that Customers Care About before Purchasing?
(1) Free maintenance plan and period?
1. Tracking service time: lifetime; 2. From the date of delivery to the customer, within the normal range of use, within 20,000 kilometers or within one year of free repair (excluding wearing parts and electrical parts), more than one year, only charge Parts fee; 3. Service arrival time: within the province, arrive within 24 hours; other areas, dispatch personnel within 24 hours; 4. During the annual flood control period, engineers and technicians are scheduled to visit regularly or irregularly to ensure timely failures Excluded, no fault active prevention.
(2) What is the price method of free post-parts supply?
1. Method: unified supply at the local Dongfeng/Jinan Heavy Duty Truck/Isuzu and other chassis technical service stations, according to user requirements or directly delivered by Chengli Special Automobile Factory; 2. Parts are only charged for the cost of production, and no other fees are added.
(3) After-sales service method?
The maintenance of the chassis part can be solved at the service station near the user's place of use. The maintenance of the special device can be done by telephone or fax. The supplier will send professional maintenance personnel to the place of use 24-28 hours after receiving the call from the user.
(4) Technical training program?
The supplier is responsible for free training of equipment users at the user's location before delivering the vehicle to the user, mainly on how to operate the hydraulic system and special devices for the driver to be familiar with the basic principles of this type of vehicle and the ability to deal with general failures.
(5) How to transport and load the vehicle?
According to the dimensions and weight of the vehicle or cargo, you can choose bulk carriers, ro-ro ships, container ships 20GP, 40GP, 40HQ, 40FR, etc.
(6) What is the time to pick up the car at the factory?
Self-pick-up time: Monday to Sunday, 08:00-19:00 (some self-pick-up points work hours from 9:00-18:00, in case of national holidays, the press release time shall prevail. focus on)
(7) Can't we go to China abroad? Want to see the car to see the factory how to do?
We can let users see the general situation of offices, factories, production scenes, and factories through video calls and shooting videos, and help foreign customers understand us. For users who order vehicles, they can watch the vehicle appearance, function demonstration videos, and other details through video inspection, so that users can grasp their order production progress and situation in real time. We will create high-quality and personalized special vehicles for each user according to the actual needs of users. You are welcome to visit the production strength and product technology on the spot, and we will provide you with the best service!
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
