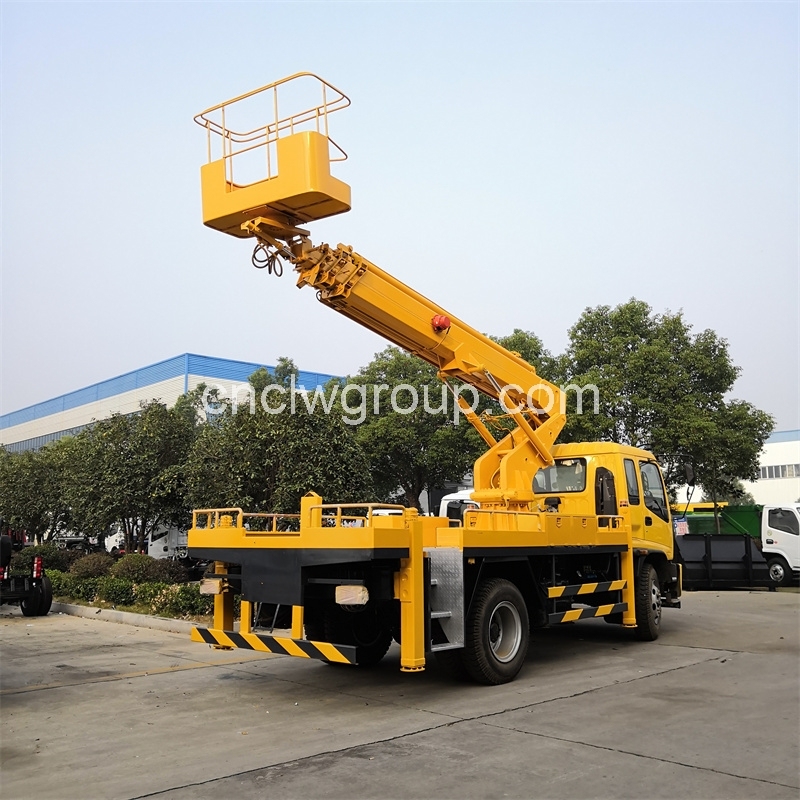

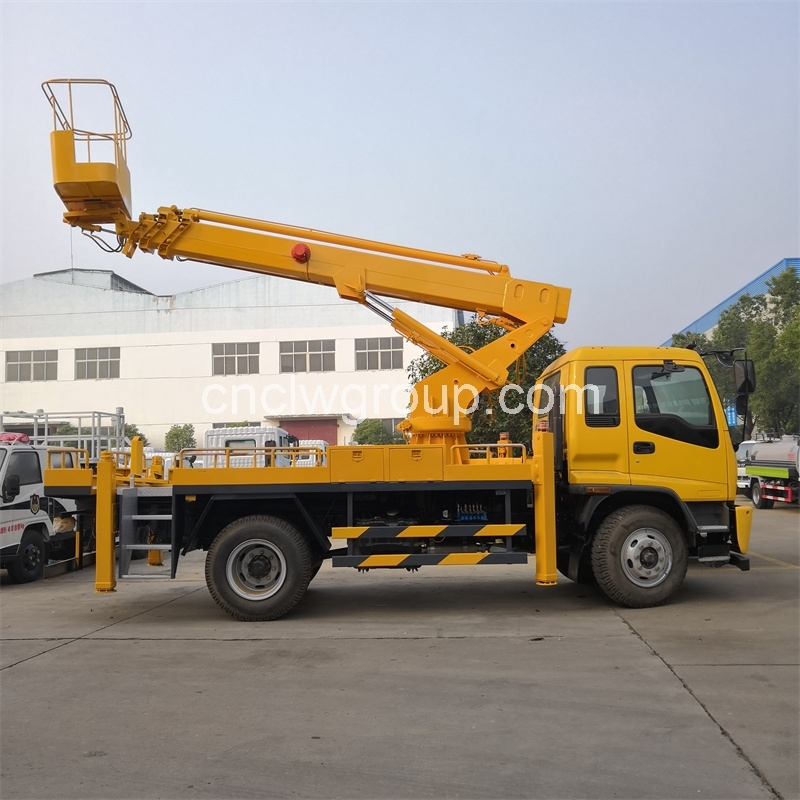

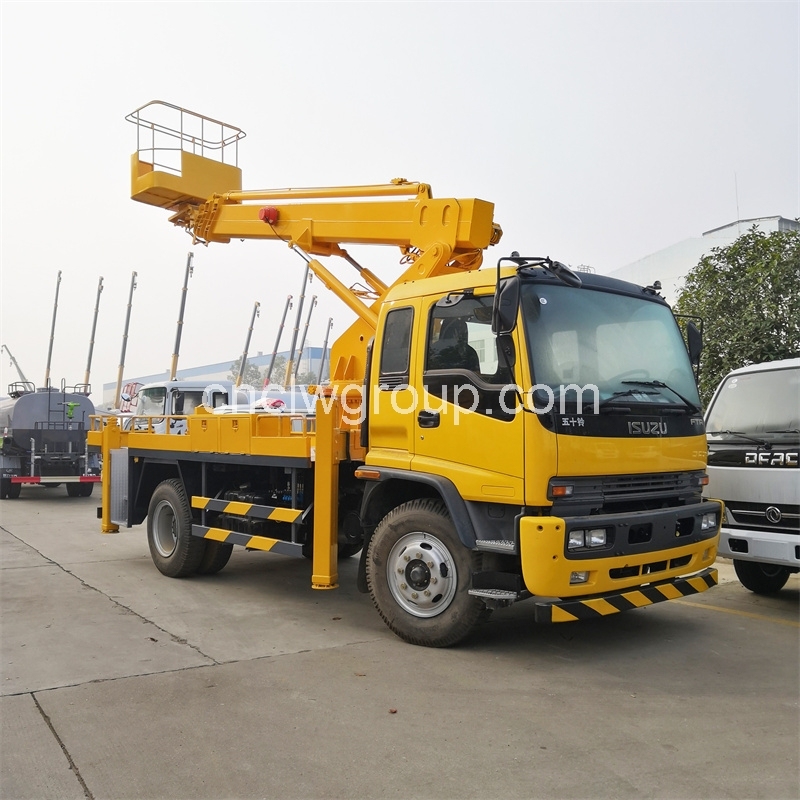

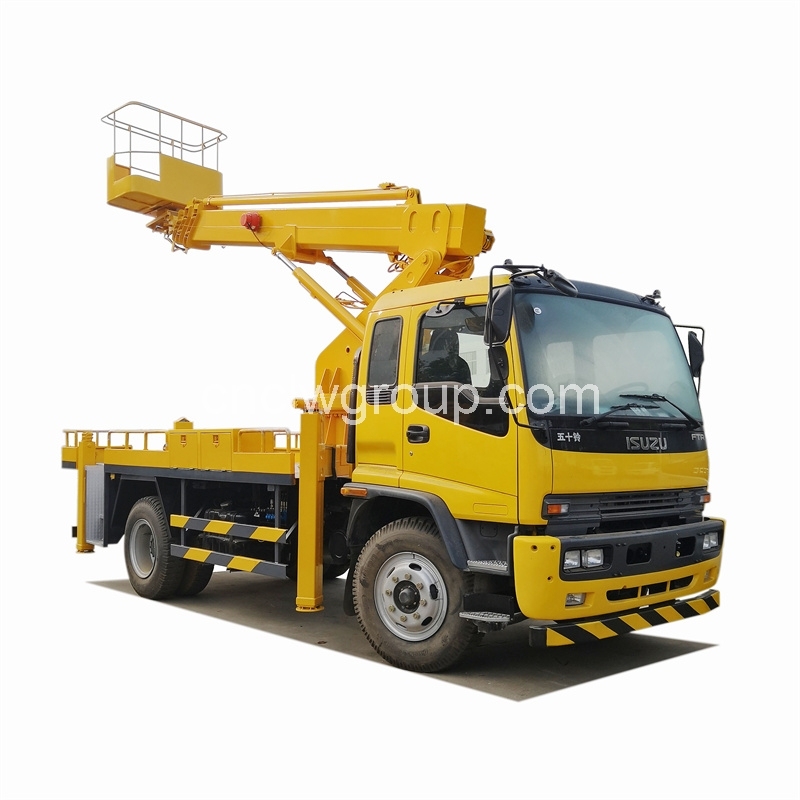

Chengli CLW 25m Aerial Work Truck Bucket Truck

- ISUZU FTR 25m aerial work truck
- ISUZU 205HP Euro5 engine
- 20m working height, 360° slewing
- Basket 200kg load, 360° slewing
- 4 pcs hydraulic outriggers
- Remote controlled + manual levers

【Chassis Parameters

Chassis parameters of ISUZU 25m aerial work platform truck: ISUZU FTR cab  chassis, condition new, 3 seats with a sleeper, 4500mm wheelbase, ISUZU 205HP Euro 5 dieseI engine, ISUZU 6-speed transmission, 10.00R20 radial tires, with one spare tire, ISUZU 6.3 ton front axle, ISUZU 13ton rear axle, air brake, power assist steering, with air conditioning, etc.


【Upper Structure Parameters】

Superstructure parameters of ISUZU 25m aerial work platform truck: Aerial work trucks refer to special vehicles that transport people and equipment to the scene and perform aerial operations. It has straight telescopic arm aerial truck and knuckle arm aerial truck.

  • /Straight arm boom system, 4 section.
  • /Maximum working height 25 meters.
  • /Turntable 360° slewing.
  • /Basket 200kg load, size 1600x750x1140mm,  360° rotary.
  • /Control operation: computer + manual control levers + wireless remote control box
  • /4 pcs hydraulic outriggers.
  • /Engineering rotary lights to warn people.


Vehicle Basic Specifications
Vehicle Model  CLW5160JGKQ5 Maximum Working Height  25 meters
Chassis brand  ISUZU New or Used  Condition new
Overall dimension 7860x2500x3350mm Cargo Box Dimension  -
Gross weight 16000 kg Rated Weight  -
Curb weight 7800KG Wheelbase  4500mm
Axle No. 2 Cab Seat No. 3
Axle Load 6300/13000 kg Fuel Type Diesel
Engine ISUZU 4HK1-TC50 205HP  Steering System LHD, power aissist steering
Transmission ISUZU 6 - speed Clutch Single dry clutch plate
Brake Air brake Tire No. 6 +1 pcs
Front/Rear Suspension 1350/2010 mm Tire Model 10.00R20
Fuel Tank 200 liter Battery 24V
Max speed 90km/h
Superstructures Parameters
Model CLW GK25S Maximum Working Height 25 meters
Boom Type 4-section arm, telescopic arm Maximum Working Radius 16 meters
 Basket Dimension  1200x750x1200 mm Slewing Angle 360° continually rotary
 Basket Load  200kg  Outrigger Front V rear H shape hydraulic legs
Basket Slewing 360°  Outrigger Span

Horizontal 4.0 meter, Vertical 4.0 meters

Operation System

One set at down turntable position,   one set on upper basket.

Optional:  computer control system + wireless remote controller

Safety System

1. Whole vehicle automatically balance leveling real-time test;

2. Outrigger auto leveling, basket auto leveling;

3. Up and Down operation anti-lock, Upper operation on basket & down operation at turntable can't operation at the same time;

4. When people on basket, outrigger operation is locked, can't operate,  to prevent damage happened;

5. Emerngecy pump is installed to prevent emergency situation.


【Customers Feedback】

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
