Chengli self-developed 3 Way Tipper Dump Truck

Sinotruk CDW 3-Way Dump Truck
Engine: Yuchai 160HP Euro3
Tir: 8+1 pcs 8.25R20 radial tire
Load Capacity: 8 tons
Dump Box: 5000x2300x1000mm
Rear dumping: middle double hydraulic cylinders
Dump direction: Left side dump, Right side dump, Rear dump

【Chassis Parameters】

Dongfeng 4x4 AWD chassis, single cabin, condition new, 3600+1350mm wheelbase, Yuchai 160HP Euro3 diesel engine, manual 6-speed transmission, 8.25R20 radial tires, with one spare tire, 3.6 ton front axle, 5 ton middle lifting axle, 8 tons rear axle, air brake, power assist steering, exhaust pipe front mounted, etc.


【Upper Structure Parameters】

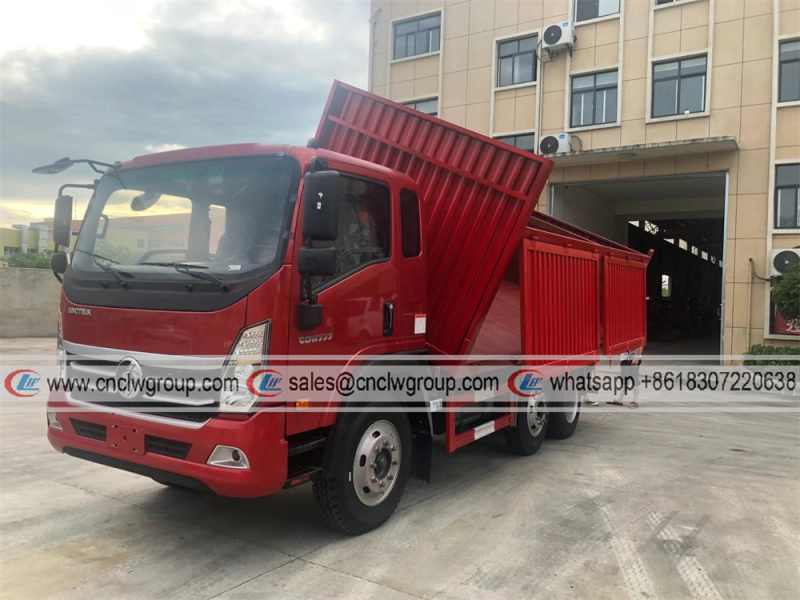

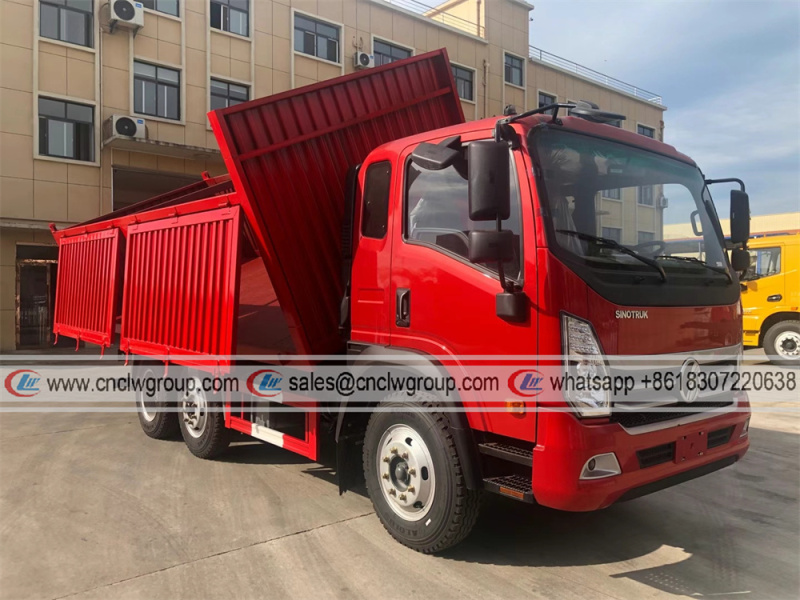

Dump box can dump at three-way:  left side dumping, right side dumping and rear dumping.

Dump box size 5000x2300x1000mm;  dump box material 3mm side wall, 5mm floor plate; dump box middle double cylinder lifting jack, dumping angle 45°; control inside cabin, can lift box, down box, stop box.


Vehicle Basic Specifications
Model CLW5160ZZXZ3
Chassis brand Dongfeng
Wheeldrive 6x2
New or Used New
Overall dimension(mm) 7400x2500x2850
Dump box dimension(mm) 5000x2300x1000
Gross weight(kg) 16000
Curb weight(kg) 7850
Load Weight(kg) 8 tons
Wheelbase(mm) 3600+1350
Engine power Yuchai 160HP Euro3
Fuel type DieseI
Transmission Manual 6- speed
Brake Air brake
Axle load(front/rear) 3.6 tons / 5 tons / 8 tons
Tire 6+1 pcs, 8.25R20 radial tires
Max speed 90km/h
Vehicle Superstructure Parameters
Dump Box Dimension 5000x2000x400mm
Material High strengthen carbon steel, 3mm side, 4mm bottom
Dumping Way

Three(3)-way dump

Left side dumping + Right side dumping + Rear dumping

Unloading Method of Dump Box Double cylinders middle lifting
Maximum Dumping Angle 35 ~ 45°
Back Door Hinge structure , auto open when dumping
Side Opening Door Two(2)


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
