【Chassis Parameters】
3-axle refrigerated freezer van trailer adapts a heavy duty chassis, steel beam frame, FUWA or BPW 13 0r 16 Tons heavy axle, 12 pcs 12R22.5 tires, 16 ton brake, #90 kingpin, 28 tons outriggers, etc.
Tractor head brand options: ISUZU, Dongfeng, Sinotruk HOWO, Foton, JAC, SHACMAN, SAIC-HONGYAN-IVECO, etc.
【Upper Structure Parameters】

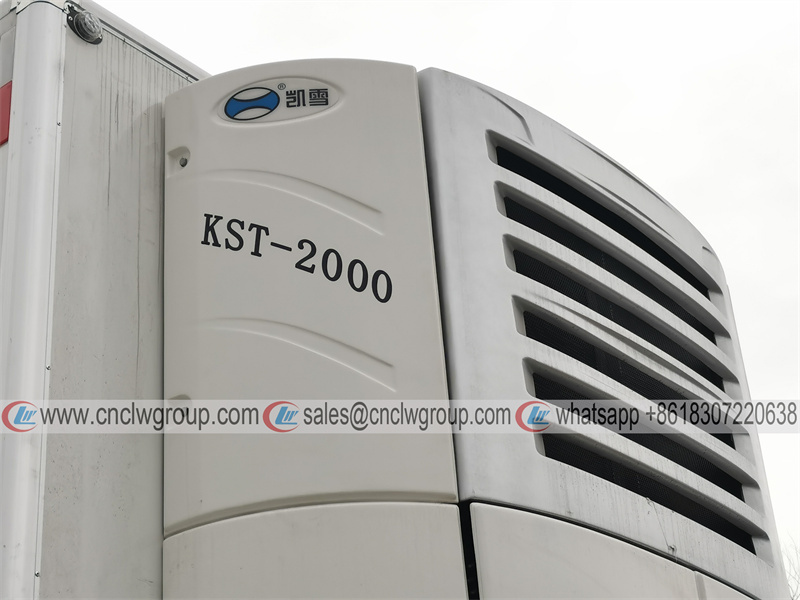

3-axle refrigerated freezer van trailer 's Insulation box size 12000x2400x2500mm, insulation box material outer and inner plate are FRP panel, middle with 80-100mm insulation layer; Refrigeration unit is Kaixue brand independent type KST-2000 refrigeration cooling system, can reach -25℃ cold temperature capacity, independent type cooling system, no need extra power unit.
Refrigeration unit brand options of isuzu elf ref van truck: American import brand Thermo King, Carrier brand; China brand Hanxue, Kauxue, Huatai, Bingli, etc.
| Model | CLW9400XLC |
| Brand | CLW |
| New or Used | New |
| Overall dimension(mm) | 12800x2550x3980 |
| Insulation box dimension(mm) | 12000x2400x2500 |
| Material of Insulation box | Sanwitch structure: FRP panel + 80mm insulation + FRP panel |
| Refrigeration unit |
Kaixue KST-2000 -25℃~ 0 ℃ |
| Gross weight(kg) | 40000 |
| Curb weight(kg) | 9860 |
| Load Weight(kg) | 30-40 tons |
| Wheelbase(mm) | 6850+1310+1310 |
| Saddle load | 17000kg |
| Axle | 3 pcs, FUWA or BPW 13 Tons axle |
| Brake | 16 tons brake pad |
| Outrigger land gear | FUWA or JOST 28 Tons |
| Kingpin | FUWA or JOST #90 or #50 |
| Suspension | Multi Leaf Springs or Airbag suspension |
| Tire | 12 pcs 12R22.5 tires |
| Voltage | 24V wire voltage |
| Lights | Standard factory |

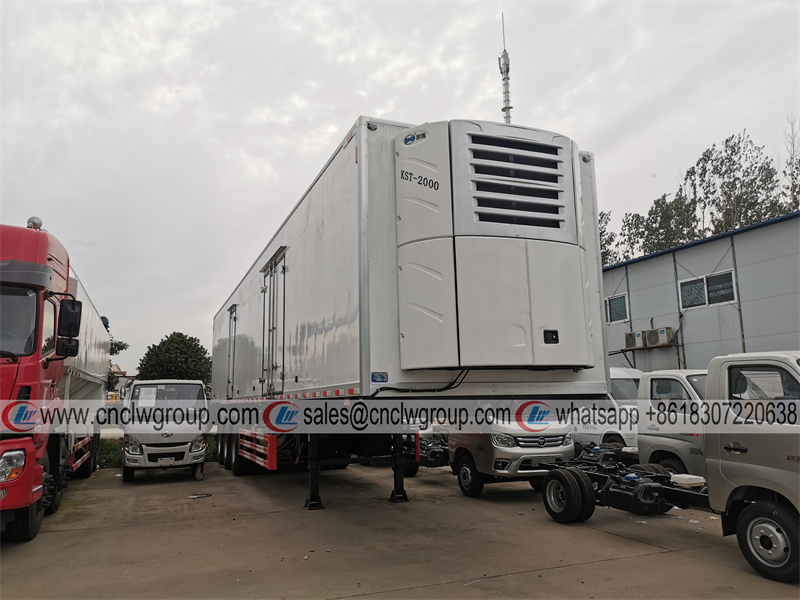

3-axle refrigerated freezer van trailer

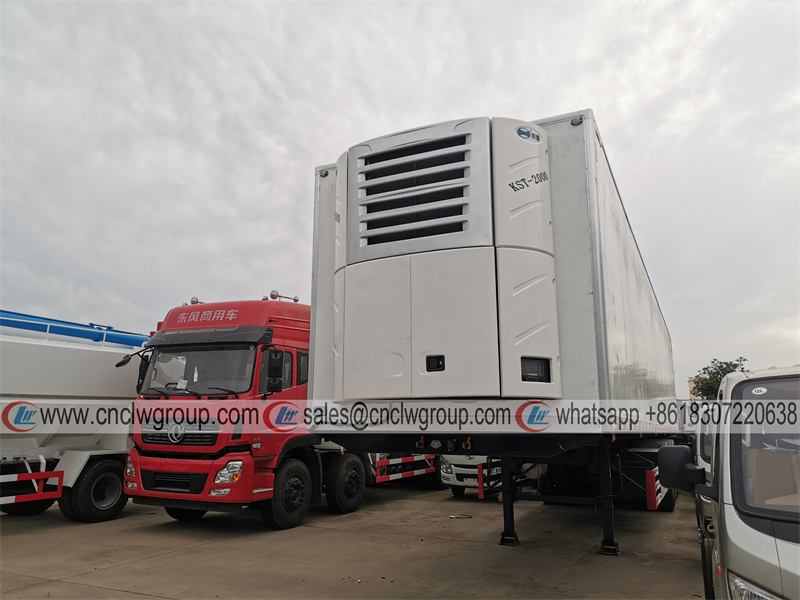

3-axle refrigerated freezer van trailer

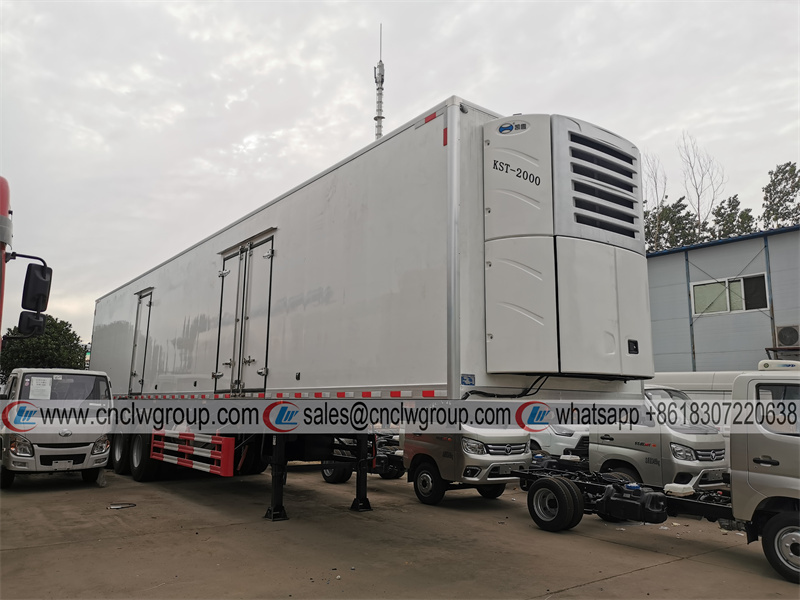

3-axle refrigerated freezer van trailer
3-axle refrigerated freezer van trailer
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
