【Chassis Parameters】
Dongfeng Dolicar chassis, condition new, 3300mm wheelbase, Yunnei 90HP or Yuchai 120HP Euro2 dieseI engine, 5-speed transmission, 7.00R16 radial tires, with one spare tire, 2.2 ton front axle, 5 ton rear axle, air brake, power assist steering, etc.
【Upper Structure Parameters】
- Garbage box volume: 6cbm, box body is made of carbon steel, 3mm side, 4mm bottom
- Side loader: hydraulic lifter or chain lifter for waste bins or barrel
- For waste bin/waste barrel volume: 120L or 240L volume plastic or steel barrel
| Model | CLW5070ZGTD2 |
| Chassis brand | Dongfeng |
| New or Used | New |
| Overall dimension | 5995x2000x2450mm |
| Gross weight | 7360kg |
| Curb weight | 3400kg |
| Load | 5 tons |
| Wheelbase | 3300mm |
| Engine power | Yunnei 90HP or Yuchai 120HP Euro2 |
| Fuel type | DieseI |
| Transmission | 5-speed |
| Brake | air brake |
| Axle load | 2.2 tons / 5 tons |
| Tire | 6+1 pcs, 7.00R16 radial tires |
| Max speed | 90km/h |
| Side loader | Type: hydraulic lifter or chian lifter |
| Lifting waste bin: 120L or 240L plastic bins or steel barrels | |
| Operation: manual levers controlled | |
| Garbage Box Body | Volume: 6 m3 |
| Material: 3mm side, 4mm bottom | |
| Tailgate: hydraulic |

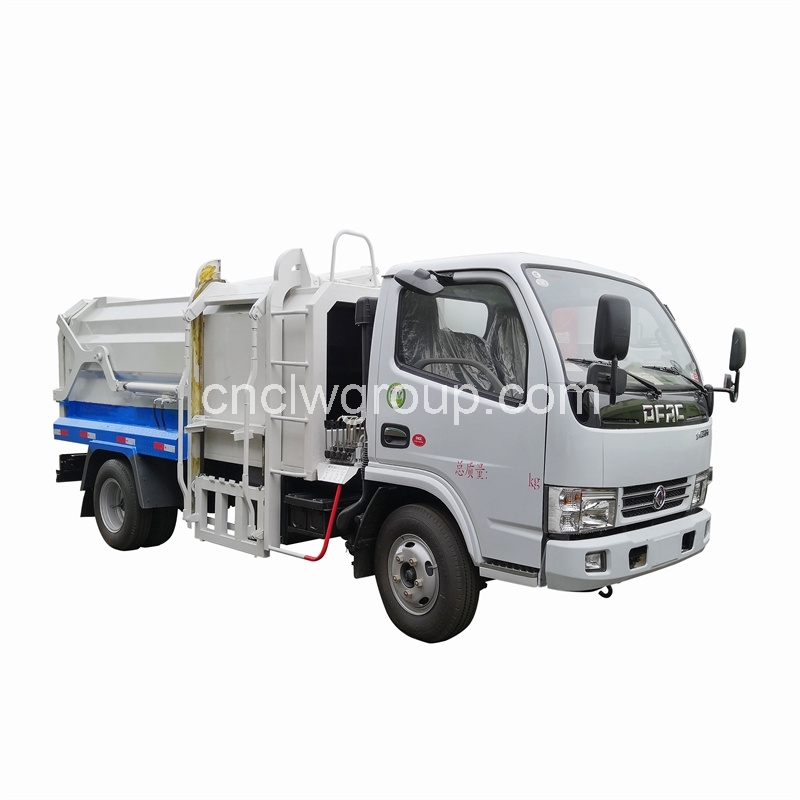

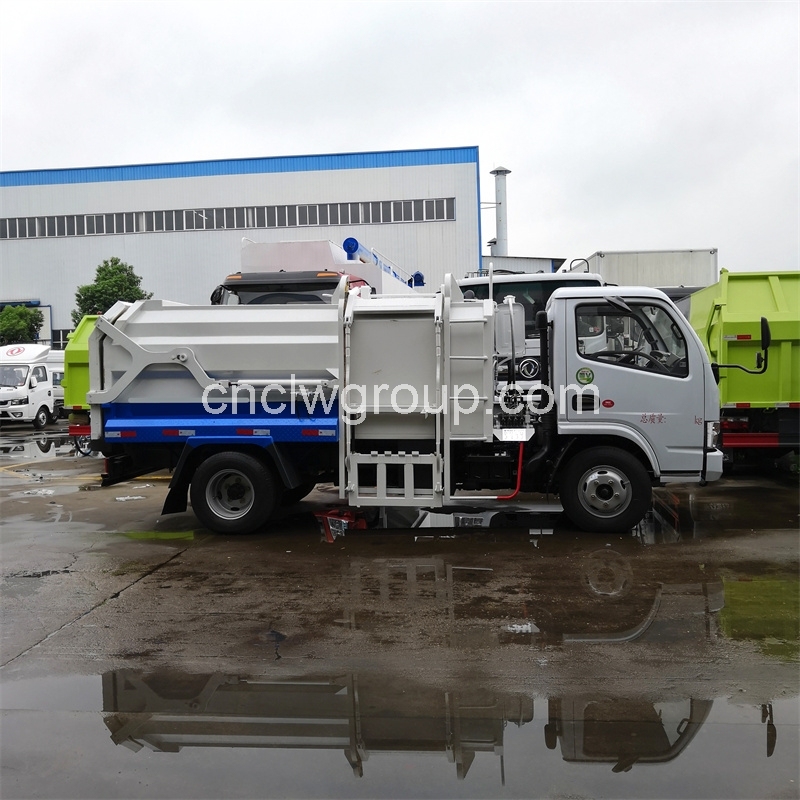

【Multi-directional Images】
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
