CLW 7m3 Vacuum Sewage Suction Truck

- Dongfeng F7 sewage suction truck
- Yunnei 170HP engine
- 6-speed transmission
- 8.25R16 radial tire
- Sewage tank volume: 7.25m3
- Sewage pump: 9m3/h vacuum sewage pump
- Unloading: rear dumping
Description
Description

【Chassis Parameters】

Dongfeng F7 chassis, condition new, 3800mm wheelbase, Yunnei 170HP Euro6 dieseI engine, 6-speed transmission, 8.25R16 radial tires, with one spare tire, 3.6 ton front axle, 8 ton rear axle, air brake, power assist steering, etc.



【Upper Structure Parameters】

- Sewage tank volume: 7250 liter, box body is made of carbon steel, 5mm tank body, 6mm sea head

- Sewage pump: SK-9 vacuum pump

- Others: tank hydraulic lifting rear dump, with a DN150mm discharge valve at rear, hydraulic open tailgate, with a 8m suction hose, with tank level view-window, etc



Model CLW5120GXWD6
Chassis brand Dongfeng
New or Used New
Overall dimension 6850x2350x2890mm
Gross weight 11995kg
Curb weight 5580kg
Load 6220kg
Wheelbase 3800mm
Engine power Yunnei 170HP
Fuel type DieseI
Transmission Manual, 6-speed
Brake air brake
Axle load 3.6 tons / 8 tons
Tire 6+1 pcs, 8.25R16 radial tires
Max speed 90km/h
Sewage Tank Tank Volume 7250 liter
Material 5mm carbon steel tank body, 6mm seal head
Tailgate Hydraulic opening
Main Components Sewage pump SK-9 vacuum pump, 9m3/h flow, 1000rpm rotary
Tank unloading Hydraulic rear dumping
Discharge valve 1 pcs DN150mm aluminum alloy outlet
  Suction hose 1 pcs 8 meters long
  Level view-window 1 pcs
  Oil & water separator Included
  Anti-overflow valve Included
  Wash hand tank 1 pcs
Performance Max suction depth 7 meters
  Suction full-tank time ≤ 10 minutes
  Positive pressure pump water time ≤ 5 minutes

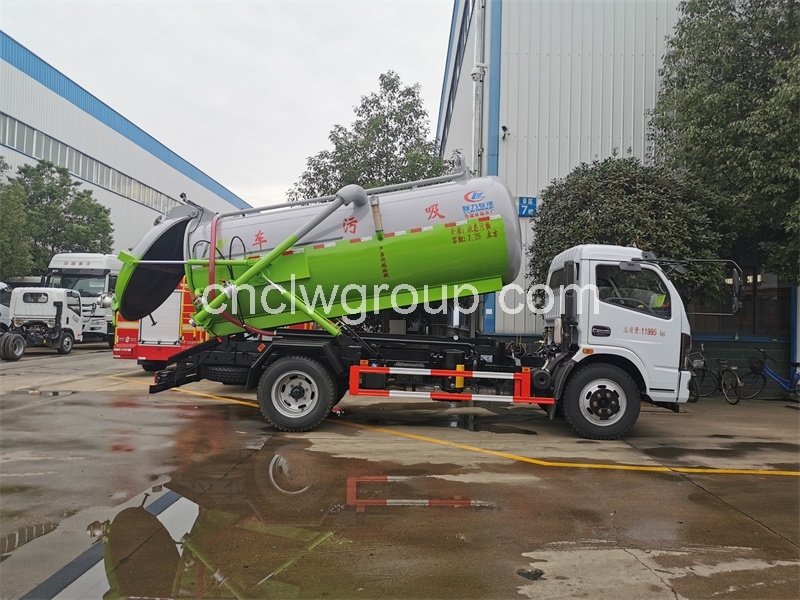

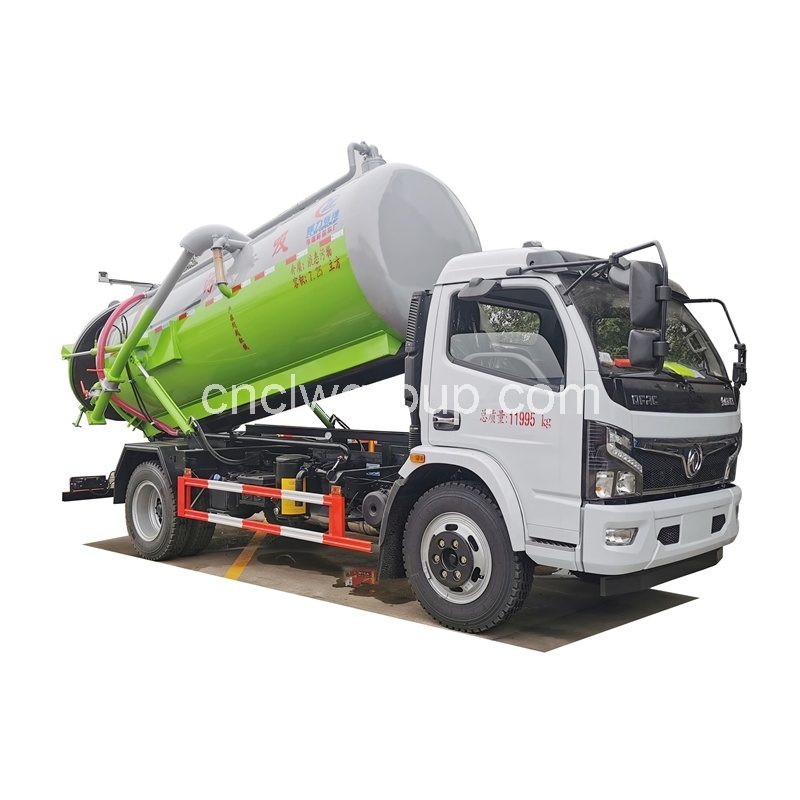

【Multi-directional Images】



As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
