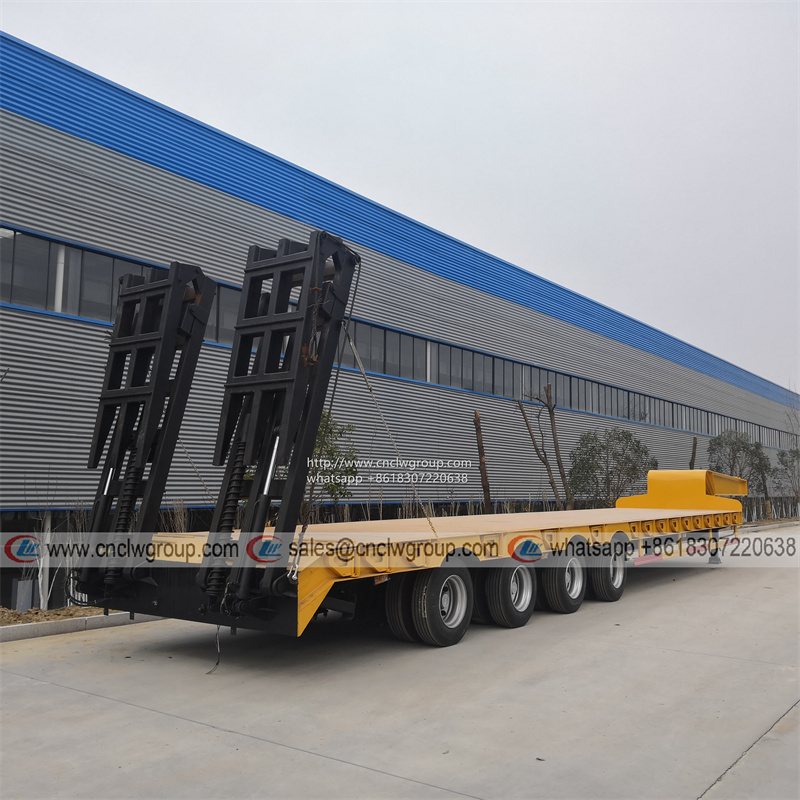

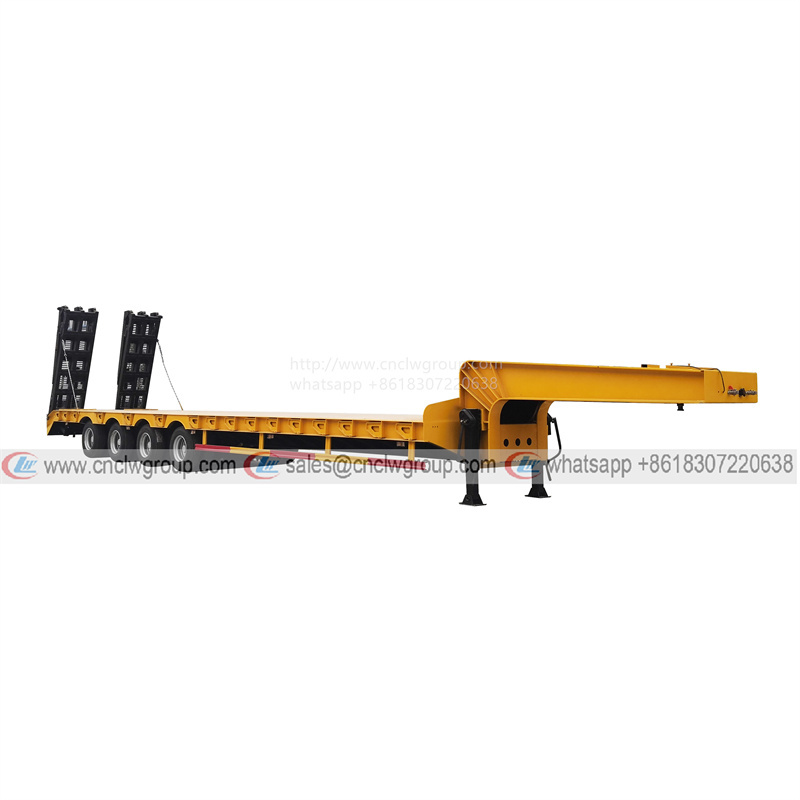

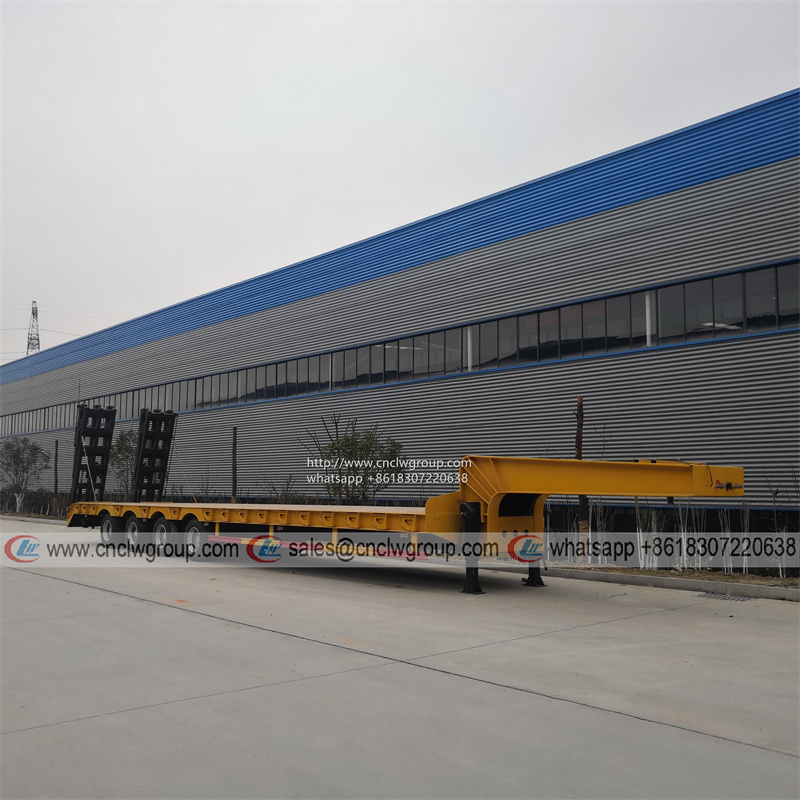

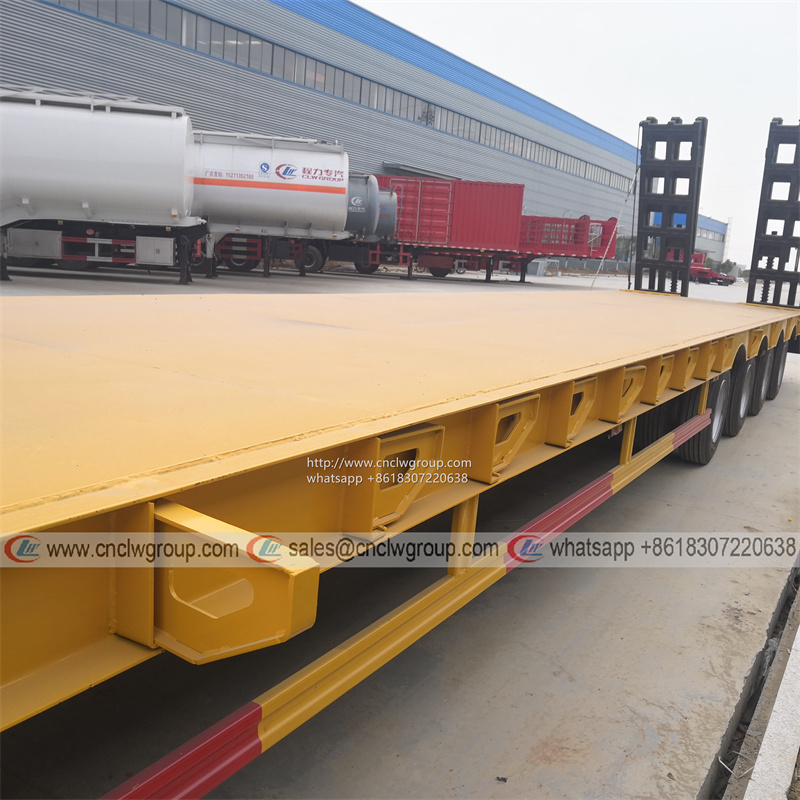

CLW9530TPB 4 axle 60t 80t Excavator Lowbed Carrier low bed semi trailer for sale

Load: 60T/80T/100T
Load flatbed size: 9700x3000mm
Axle: 4 x 13T
Tire: 16 pcs, 8.25R20 radial tire
-Whatsapp +8618307220638
-Email: [email protected]

【Chassis Parameters】

CLW9530TPB 4 axle 60t 80t lowbed excavator carrier low bed semi trailer, 4 pcs FUWA 13 Tons axle(optional FUWA 16T, 20T), 16 pcs 8.25R20 radial tires, 90# kingpin, 28 Tons support outriggers, with heavy strengthened I shape 520mm main beam, gooseneck structure.



CLW9530TPB 4 axle 60t 80t lowbed excavator carrier low bed semi trailer: Gooseneck structure low bed semi trailer,  gooseneck section length 3800mm, straight section load platform flatbed dimension 9700x3000mm, with 5mm steel deck plate, 18mm top wing plate, 14mm middle support plate, 16mm down web plate, 520mm "I" main beams, very heavy strengthened structures for super heavy excavators, bulldozers, and other heavy machines;  which is 25%~35% thicker and heavier materials compared with other cheap low bed trailer from other factories.  This is real heavy load structure and performance low bed trailer with heavy load, strong structure and long service life. Chengli made low bed trailer is real Genuine unit, It's not a bargain to cut corners!Rear with two pcs mechanical spring ladders as a climbing ladder, we also provide hydraulic ladders optional for our clients.

【Vehicle Basic Parameters】

Main Dimensions

Overall Size

13500*3000*1800, 3200mm

CLW9520TPB 4-axle Lowbed Semi Trailer

Tare Weight


Low Bed Structure

Load Capacity

70 tons  (optional from 30 tons to 200 tons)


Gooseneck type

Gooseck Section Length

3800 mm

Straight Section Dimension

(Length x Width) 9700 x 3000 mm


Top wing plate: 18mm

Middle support plate: 14mm

Down web plate: 16mm

Deck Plate

5mm quality checkered plate

Rear Loading Ladder

Two pcs hydraulic spring ladders, with safety chains

Rope hook & tighter

Per side with 14-20 pcs depends on length of flatbed


Main Beams

520mm strengthened quality "I" main beam


4*13 Ton FUWA axle

Landing Gear

FUWA brand Two-speed, manual operating, heavy duty landing gear

King Pin

FUWA brand 3.5” bolt-in king pin


Multi-leaf spring suspension

Pneumatic Braking System

WABCO RE 4 relay valve; Spring brake chamber; with air tanks.


8.25R20 tubeless tire, 16 pieces


Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint


7-core electric wire, 5-core for brake




Taillamps, side warning yellow lights, etc.


One standard tool box


【Different Choices of Low Bed Trailer】

From Axle: 2 axle, 3 axle, 4 axle, 6 axle low bed trailer;

From Load: 15 tons to 100 tons low bed trailer;

From Functions: straight flatbed low bed trailer, tire-exposed low bed trailer, hydraulic gooseneck detachable low bed trailer, multi-line multi-axle low bed trailer.

Chengli provides all kinds of capacity lowbed trailer, such as 1 axle lowbed trailer, 2 axle lowbed trailer, 3 axle lowbed trailer, 4 axle lowbed trailer, 5 axle lowbed trailer, 6 axle lowbed trailer;  and 2-axle 4-line low bed semi trailer, 3-axle 6-line low bed semi trailer, 4-axle 8-line low bed semi trailer;  and for load capacity from 10 tons to 200 tons capacity lowbed semi trailer for customers demand.

Chengli Special Automobile Co., Ltd. Has a Complete After-sales Service System

In order to make you always satisfied from purchasing, owning and using products, Chengli Special Automobile Co.,Ltd has a nationwide sales and service network to provide you with a full range of services.

◆Training Service

Jiangnan Company provides free expert training for all customers who purchase our products, and the training does not charge any fees.

◆Warranty Commitment

Customers can enjoy up to one year or 25,000 kilometers, and free replacement of parts (excluding wearing parts) damaged due to quality problems during the warranty period. The chassis part is guaranteed by the original factory at the national secondary service station nationwide, and the modified part is provided by our company with the service tenet of the customer being always right, and the service tenet of "customer care and caring for each car". Respond within 12 hours after receiving the letter for help from customers, and do not exceed 24 hours for door-to-door service in inland provinces and cities, and 48 hours for individual areas. Long-term supply of original accessories and accessories to provide accessories at preferential market prices. Overseas customers guarantee to reply within 24 hours and give guidance plan.

◆24 Hours Service

The service tenet is that the customer is always right, the service tenet is to care about the customer and every car, and make a public commitment to the society. , Shanghai, Guangdong, Zhejiang, Fujian, Hainan), no more than 24 hours in inland provinces and cities, and no more than 48 hours in individual areas.

◆Rescue Service

When the customer's vehicle cannot be repaired at the service station due to special reasons, the service station can provide on-site service of vehicles, personnel and accessories to solve the customer's difficulties to the greatest extent and reduce the customer's concerns about using the car.

◆Customer Return Visit

Chengli Special Automobile Co.,Ltd. implements the three-level return visit service of dealers, service stations and return visit consultants, caring about customers, helping customers understand and familiarizing themselves with cars, helping customers to actively digest potential hidden dangers in advance, and improving the effective service life of products. To ensure the interests of customers.

Order Process

     ①: Car purchase negotiation: Contact the vehicle model information parameters by telephone or on-site inspection to discuss the vehicle model, Beiqi Foton remote water supply forest fire truck price and related requirements.

     ②: Signing the contract: Both parties sign the vehicle purchase and sale contract and pay the contract deposit in advance (fax signing of the contract or on-site signing of the contract is acceptable).

     ③: Arrange production: Our company arranges workshop production according to the contract requirements.

     ④: Delivery of the vehicle: The vehicle is delivered and accepted, the balance of the vehicle is paid, and the relevant procedures are completed. For more detailed car booking process, please inquire!

Answers to the Questions that Customers Care About before Purchasing?

(1) Free maintenance plan and period?

1. Tracking service time: lifetime; 2. From the date of delivery to the customer, within the normal range of use, within 20,000 kilometers or within one year of free repair (excluding wearing parts and electrical parts), more than one year, only charge Parts fee; 3. Service arrival time: within the province, arrive within 24 hours; other areas, dispatch personnel within 24 hours; 4. During the annual flood control period, engineers and technicians are scheduled to visit regularly or irregularly to ensure timely failures Excluded, no fault active prevention.

(2) What is the price method of free post-parts supply?

1. Method: unified supply at the local Dongfeng/Jinan Heavy Duty Truck/Isuzu and other chassis technical service stations, according to user requirements or directly delivered by Chengli Special Automobile Factory; 2. Parts are only charged for the cost of production, and no other fees are added.

(3) After-sales service method?

The maintenance of the chassis part can be solved at the service station near the user's place of use. The maintenance of the special device can be done by telephone or fax. The supplier will send professional maintenance personnel to the place of use 24-28 hours after receiving the call from the user.

(4) Technical training program?

The supplier is responsible for free training of equipment users at the user's location before delivering the vehicle to the user, mainly on how to operate the hydraulic system and special devices for the driver to be familiar with the basic principles of this type of vehicle and the ability to deal with general failures.

(5) How to transport and load the vehicle?

According to the dimensions and weight of the vehicle or cargo, you can choose bulk carriers, ro-ro ships, container ships 20GP, 40GP, 40HQ, 40FR, etc.

(6) What is the time to pick up the car at the factory?

Self-pick-up time: Monday to Sunday, 08:00-19:00 (some self-pick-up points work hours from 9:00-18:00, in case of national holidays, the press release time shall prevail. focus on)

(7) Can't we go to China abroad? Want to see the car to see the factory how to do?

We can let users see the general situation of offices, factories, production scenes, and factories through video calls and shooting videos, and help foreign customers understand us. For users who order vehicles, they can watch the vehicle appearance, function demonstration videos, and other details through video inspection, so that users can grasp their order production progress and situation in real time. We will create high-quality and personalized special vehicles for each user according to the actual needs of users. You are welcome to visit the production strength and product technology on the spot, and we will provide you with the best service!

*Visit and subscribe for more details about 4 axle 60 tons low bed trailer and other low bed trailer series. If you need any help, send us a meesage to [email protected] or directly contact us thru whatsapp +8618307220638 for instant communication.
