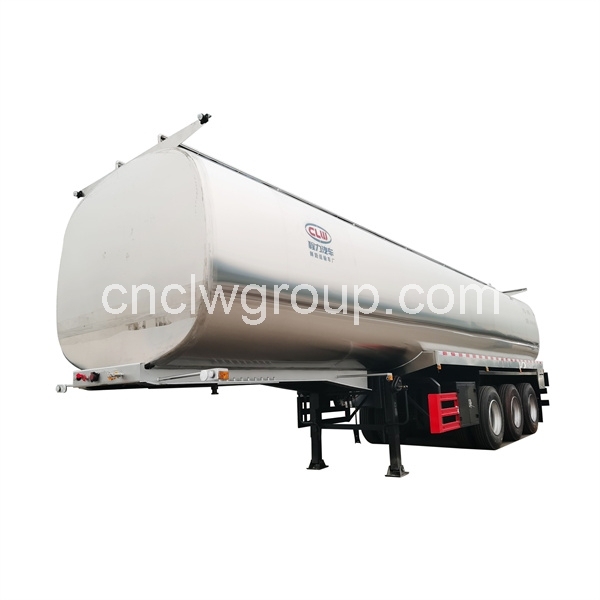

CW9403GNY 30,000 liter Milk Tank Trailer

Chengli 30,000 liter Milk Tank Trailer
Material: food grade Stainless Steel 304-2B
Tank insulation: with 80mm PU foam insulation
Axle: 3 axles, FUWA 13 Tons
Pipe & Valve: Food grade stainless steel valve
Self cleaning: CIP auto cleaning inside tank

【Chassis Parameters】

3 axle semi trailer, FUWA 13 Tons axle, 12 pcs 12R22.5 tubeless tires, 90# kingpin, 28 Tons support outriggers, rear bumper, tool box, valve box, etc.



30,000 liter tank volume, inside load container material 3mm stainless steel 304, middle with 80mm PU foam insulation material, outer covering material is stainles steel 201;  with 4 pcs division compartments, 4 pcs manhole covers, with 4 pcs gravity discharge outlets, valve box, two pcs hose box, rear ladder, top tank with protective fence, etc.


【Vehicle Basic Parameters】



Brand CLW
New or Used New
Overall dimension 10900x2500x3700mm
Gross weight 40000kg
Curb weight 10500kg
Load 29500kg
Saddle load 16000kg
Wheelbase 5200+1310+1310mm
Axle 3 axle, FUWA 13 Ton
Tire 12 pcs, 12R22.5 tubeless tires
Support leg 28 Tons
Kingpin #90 (3.5 inch)
Brake 26 tons brake pad
Suspension Multi Leaf Springs -8/8/8 no.s
Electric wire 7-core wire
Tire trend 1840/184/1840 mm
Voltage 24V
Lamp Side warning lamps, tail lamps, etc.

Milk Tank


30,000 liter volume, inside tank is made of food grade stainless steel 304-2B, middle is 80mm PU foam insulation layer, outer plate is stainless steel 304L; with 4 pcs manholes, 4 pcs stainless steel outlet ball valve, 4 pcs cleaning water inlet valve. with a valve box.


【Milk Truck Special Features】

  1. Tank inside material is made of FOOD GRADE stainless steel 304-2B plate, tank can be divided into multi compartments, inside tank is required to be very smooth, no sharp angle. Each milk tank is equipped with a CIP (cleaning device), and the tank is equipped with a washer, which is automatically sprayed and cleaned by water, and there is no dead angle at 360°.
  2. The middle of the tank is an insulating layer, which has a heat preservation effect and prevents the fresh milk from deteriorating. When the temperature difference between day and night is large, the 24-hour temperature change does not exceed 1°C. The thermal insulation material adopts 80mm thick polyurethane foam material for thermal insulation.
  3. The outer layer of the tank (the protective layer that wraps the insulation layer) is made of 304L stainless steel plate. The stainless steel outer skin and tail valve box are beautiful in appearance, the structure of the whole vehicle is reasonable, the weight is light, and the strength is good.
  4. Each bin has its own unloading port (self-retaining valve) and feeding port (manhole).


As model changes or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
