Dongfeng 10 Wheeler Boom Truck with 12 Ton Articulated Crane

Dongfeng 6x4 240HP Euro3 truck
Gross weight: 25000kg
Load: 20 tons
Transmission: 9-speed manual gearbox
Tir: 10+1 pcs 10.00-20 nylon tire
Crane lifting capacity: 12 tons
Crane type: articulated arm or knuckle arm
Max lifting height: 16.8m
Description
Description

【Chassis Parameters】

Dongfeng 6x4 chassis, condition new, 4600+1350mm wheelbase, Yuchai 240HP Euro3 dieseI engine, 9-speed transmission, 10.00-20 nylon tires, with one spare tire, 5 ton front axle, 2x 10 ton rear axle, air brake, power assist steering, etc.



【Upper Structure Parameters】

CLW SQ12SA3 12 tons articulated arm crane, 4-section arm, max lifting height 12.8m, max working radius 10.2m, 360° slewing, double side operation, with remote throttle, lighting, leveling bubble, etc.



Vehicle Basic Parameters:

Model CLW5250JSQD3
Chassis brand Dongfeng
New or Used New
Overall dimension 10250x2500x3850mm
Cargo box 7200x2300x550mm
Gross weight 25000kg
Curb weight 12500kg
Load 20 tons
Wheelbase 4600+1350mm
Engine power 240HP or 260HP or 300HP optional
Fuel type DieseI
Transmission 9-speed
Brake air brake
Axle load 5/2x 10 tons
Tire 10+1 pcs, 10.00-20
Max speed 90km/h

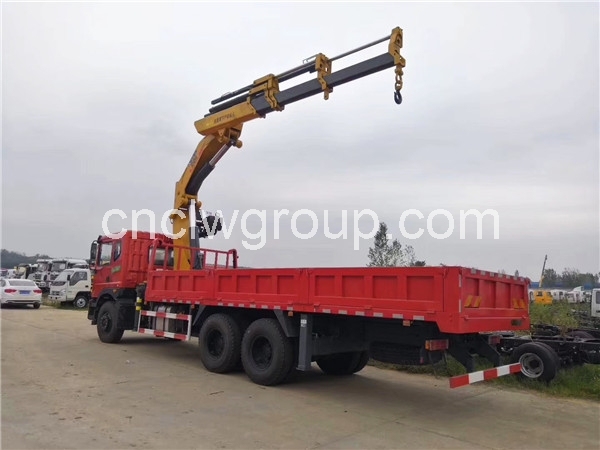

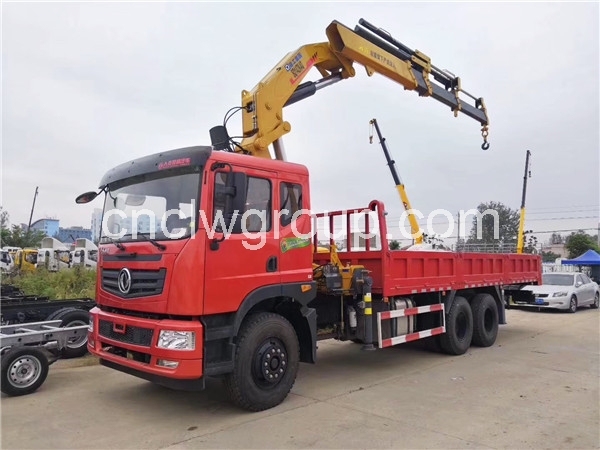

Multi-directional Pictures:



Crane Parameters:

Model SQ12SA3
Brand CLW
New or Used New
Max lifting weight 12 tons
Max torque 270 kN.m
Max lifting height 12.8m
Max working radius 10.2
Recommand oil pressure 28MPa
Oil flow 50L/min
Oil tank volume 180L
Slewing angle 360 degree
Outrigger span 2200mm ~ 5400mm
Outrigger Front hydraulic extension outrigger
Control Double side linkage operation
Special Remote throttle, lighting, leveling bubble, etc



As model changes or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
