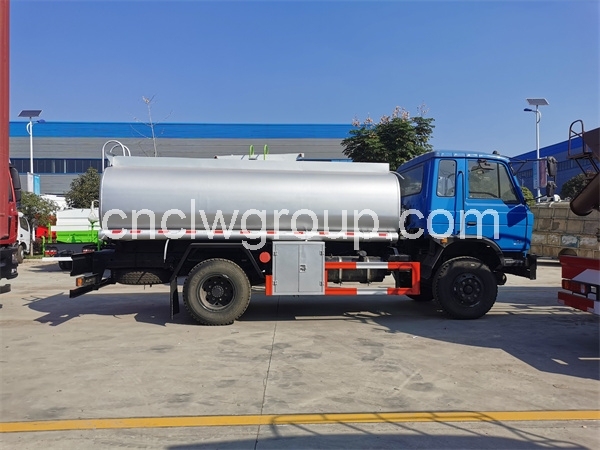

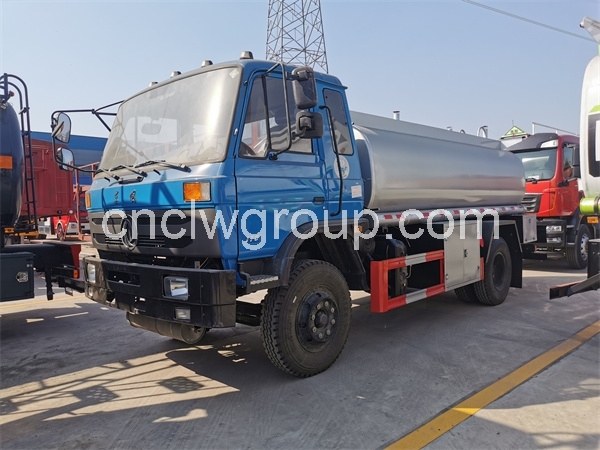

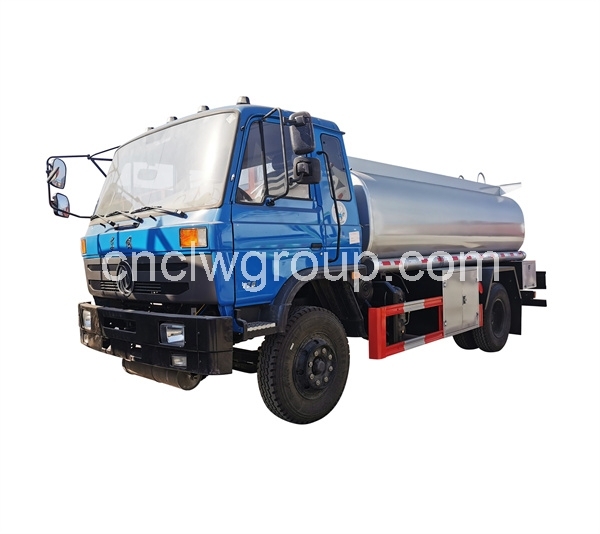

Dongfeng 10,000 liter Fuel Tanker Truck

Dongfeng 4x2 10,000 liter Fuel Tanker Truck
Engine: 170HP Euro3
Tir: 6+1 pcs 9.00-20 tire
Division compartment: 1 compartments (10m3)
Pump: 40/45 fuel pump
Valve: 2 pcs DN65 gravity discharge valves
Manhole: 1 pcs Euro standard manhole
Description
Description

【Chassis Parameters】

Dongfeng 4x2 chassis, condition new, 3950mm wheelbase, Cummins 170HP Euro3 dieseI engine, manual 8-speed transmission, 9.00-20 nylon tires, with one spare tire, 3.6 ton front axle, 8 ton rear axle, air brake, power assist steering, exhaust pipe front mounted, etc.



【Upper Structure Parameters】

CLW5140GYYBJ3 Dongfeng 10,000 liter refuel truck, carbon steel tank body, with 1 pcs manhole cover, 2 pcs gravity discharge ports, with 1 pcs safety valve foot valves, with 40/45 fue pump, pump-inlet and pump-outlet function; with 2 pcs fuel hose, 2 pcs hose box, valve box, tool box, ladder, top anti-skid walkway, top protective fence, rear bumper, fire extinguishers, dangerous warning stickers, reflective stickers, etc.



【Vehicle Basic Parameters】

Model CLW5140GJYD3
Chassis brand Dongfeng
Wheeldrive 4x2, LHD
New or Used New
Overall dimension 7350x2500x3120mm
Gross weight 14500kg
Curb weight 6500kg
Load 8000kg
Wheelbase 3950mm
Engine power Cummins 170HP Euro3
Fuel type DieseI
Transmission Manual 8 speed gearbox
Brake Air brake
Axle load 3.6/8 tons
Tire 6+1 pcs, 9.00-20
Max speed 90km/h

Superstructure:

10000 liter tank body, 4.5mm carbon steel, 1 pcs manhole cover,1 pcs safety valve foot valve, with 40/45 fue pump, pump-in and pump-out function; with 2 pcs fuel hose, 2 pcs hose box, valve box, tool box, ladder, top anti-skid walkway, top protective fence, rear bumper, fire extinguishers, dangerous warning stickers, reflective stickers, etc.





As model changes or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
