Dongfeng 12m3 compactor garbage truck

Dongfeng 190HP Euro3 truck
8-speed transmission
10.00-20 nylon tire
12m3 volume, 4mm side wall, 5mm bottom plate
Rear waste bin flip device, intelligent control system+manual control+inside cab controlled

【Chassis Parameters】

Dongfeng brand  chassis, condition new, 3950mm wheelbase, Cummins 190HP Euro3 dieseI engine, 8-speed transmission, 10.00-20 nylon tires, with one spare tire, 5 ton front axle, 10 ton rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

Chengli produced garbage compactor body, with 12 cubic meter volume box, rear with waste bin flip device, can flip 120L/240L/660L waste bins, control panel+manual lever+inside cab controlled.


Model CLW5160ZYSD3
Chassis brand Dongfeng
New or Used New
Overall dimension 7350x2500x3050mm
Gross weight 16000kg
Curb weight 6800kg
Load 10 tons
Wheelbase 4500mm
Engine power 170HP or 190HP optional
Fuel type DieseI
Transmission 8-speed
Brake air brake
Axle load 5/10 tons
Tire 6+1 pcs, 10.00-20
Max speed 90km/h

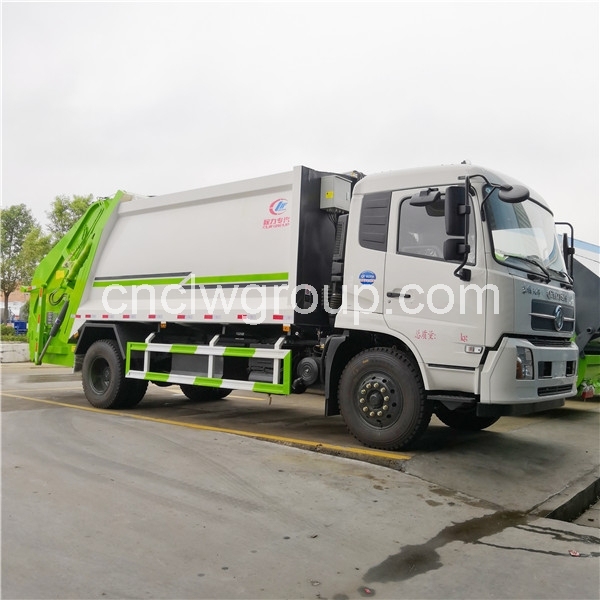

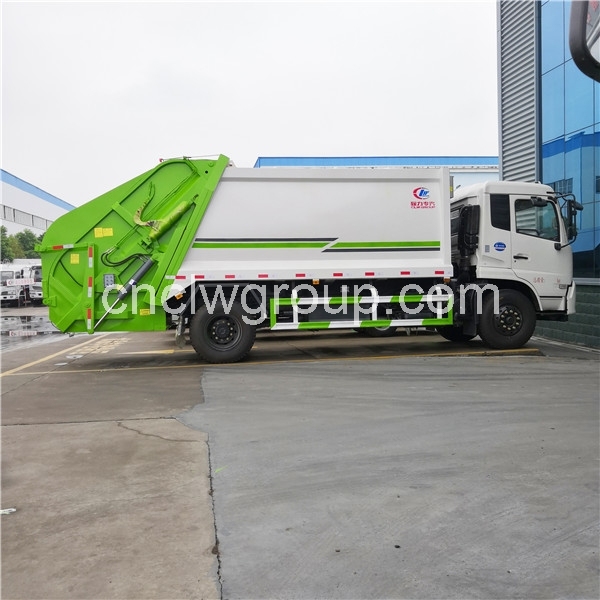

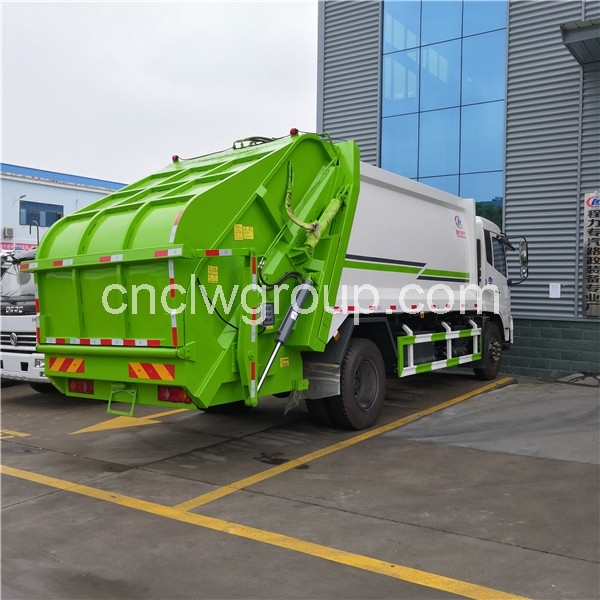

【Multi-directional Images】

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
