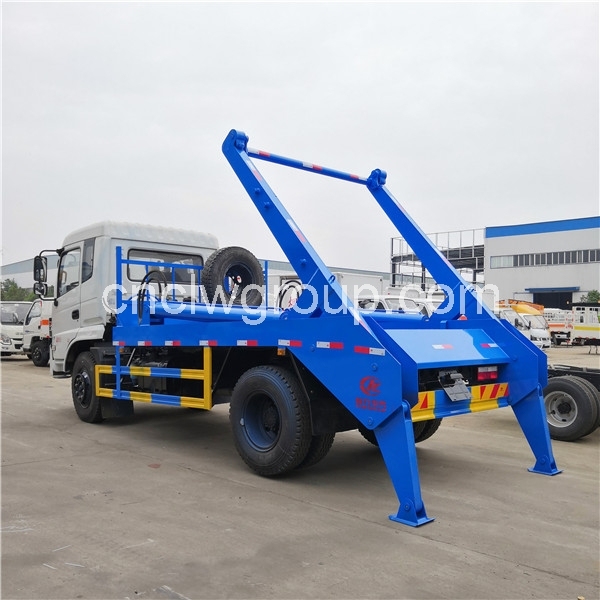

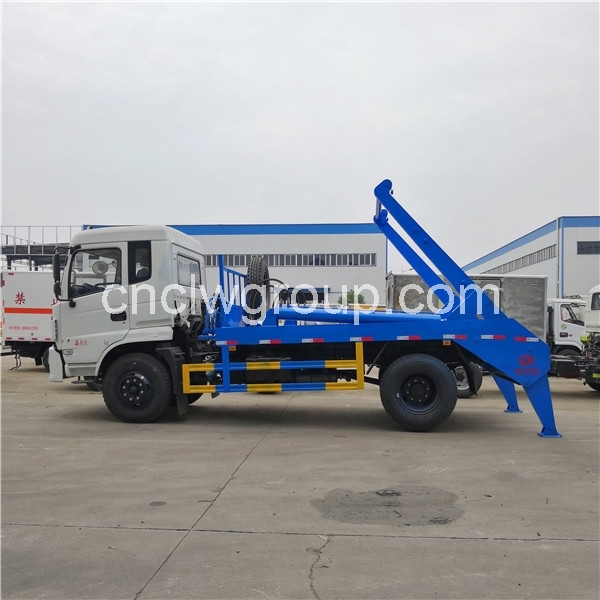

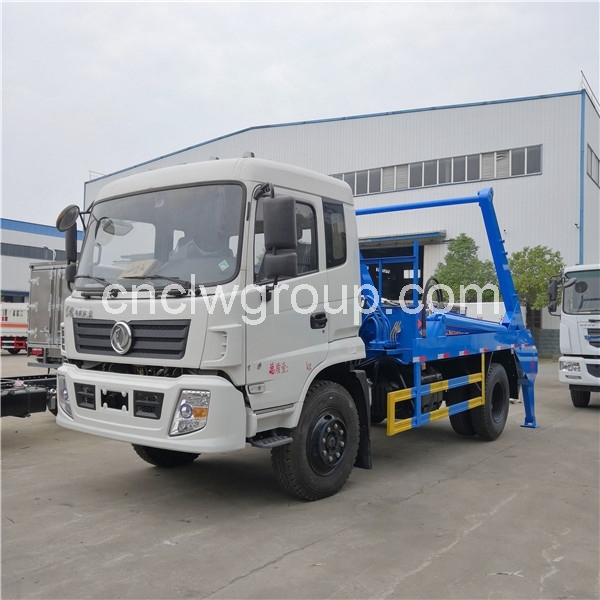

Dongfeng 10m3 Swing Arm Garbage Truck

Dongfeng 190HP Euro3 truck
8-speed transmission
10.00-20 nylon tire
Waste bin: 10m3 volume, 4mm side wall, 4mm bottom plate
Swing arm system: heavy duty hydraulic boom
Description
Description

【Chassis Parameters】

Dongfeng brand  chassis, condition new, 4500mm wheelbase, Cummins 190HP Euro3 dieseI engine, 8-speed transmission, 10.00-20 nylon tires, with one spare tire, 5 ton front axle, 10 ton rear axle, air brake, power assist steering, etc.



【Upper Structure Parameters】

Hydraulic Swing Arm lifting system,  made of reinforced alloy steel main boom, which is resistant to tension and deformation; alloy steel lifting lugs are highly wear-resistant, through-type welding, and high strength;

Hydraulic oil pumps, cylinders, and multi-way valves are all domestic well-known brands, alloy steel swing arm system, safe and stable, reliable performance, and durable.

The dual-cylinder outriggers designed at the rear of the vehicle are located on the left and right sides, respectively, and are controlled by hydraulic multi-way valves, which increase the stability of the vehicle during hoisting operation, and it is safe and reliable.

Waset bin: 10 cbm volume bin, boat shape, 4mm side, 4mm bottom plate, waste bin is full welded, no leakge of water or liquid.

Model CLW5160ZBSD3
Chassis brand Dongfeng
Wheeldrive 4x2, LHD
New or Used New
Overall dimension 7850x2500x3350mm
Gross weight 16000kg
Curb weight 7200kg
Load 10 tons
Wheelbase 4500mm
Engine power Cummins 190HP Euro3
Fuel type DieseI
Transmission 8-speed
Brake air brake
Axle load 5 tons/10 tons
Tire 6+1 pcs, 10.00-20
Max speed 90km/h
Superstructure
Swing arm:  10 tons lifting capacity
Swing arm mechanism: made of reinforced alloy steel main boom, which is resistant to tension and deformation; alloy steel lifting lugs are highly wear-resistant, through-type welding, and high strength;
Swing arm angle: 145° rotate angle
One cycle time: ≤ 60s
Rear dumping time: ≤ 50s
Waste Box

Volume: 10 cubic meters

Material:  4mm side, 4mm bottom plate, waste bin is full welded, no leakge of water or liquid.



As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
