Dongfeng 10m3 Water Sprinkler Truck

- Dongefeng 10,000 liter water truck
- Cummins 170HP/190HPEuro 3 engine
- 8-speed transmission
- 10.00-20 radial tires
- 10,000 liter carbon steel tank body
- With water pump,front/rear sprayer nozzles/with discharge valves

【Chassis Parameters】

Dongfeng 145 or 153 cab  chassis, condition new, single cab, 3 seats with a sleeper, 3950mm wheelbase, Cummins 170HP or 190HP Euro 3 dieseI engine, manual 8-speed transmission, 10.00-20 radial tires, with one spare tire, 3.6 ton front axle, ISUZU 8 ton rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

- Chengli produced water tank & spraying system, multi functional for water delivery, water sprinkling, emergency fire fighting, spray water dust suppression, etc;

- 10,000 liter carbon steel tank, inside with anti-corrosion treatment, with one DN460mm manhole, rear with a platform and ladder;

- with 60m3/h flow water pump;

- with front/rear/side water spraying nozzles, water spraying range 12-16 meters; with a water cannon, spraying range 28 meters;


Model CLW5160GSSD3
Chassis brand Dongfeng
New or Used New
Overall dimension 7250x2500x3050mm
Gross weight 16000kg
Curb weight 7500kg
Load 10 tons
Wheelbase 3950mm
Engine power Cummins 170/190HP Euro3
Fuel type DieseI
Transmission Manual, 8-speed gearbox
Brake air brake
Axle load 3.6/9 Tons
Tire 6+1 pcs, 10.00-20 radial tires
Max speed 90km/h

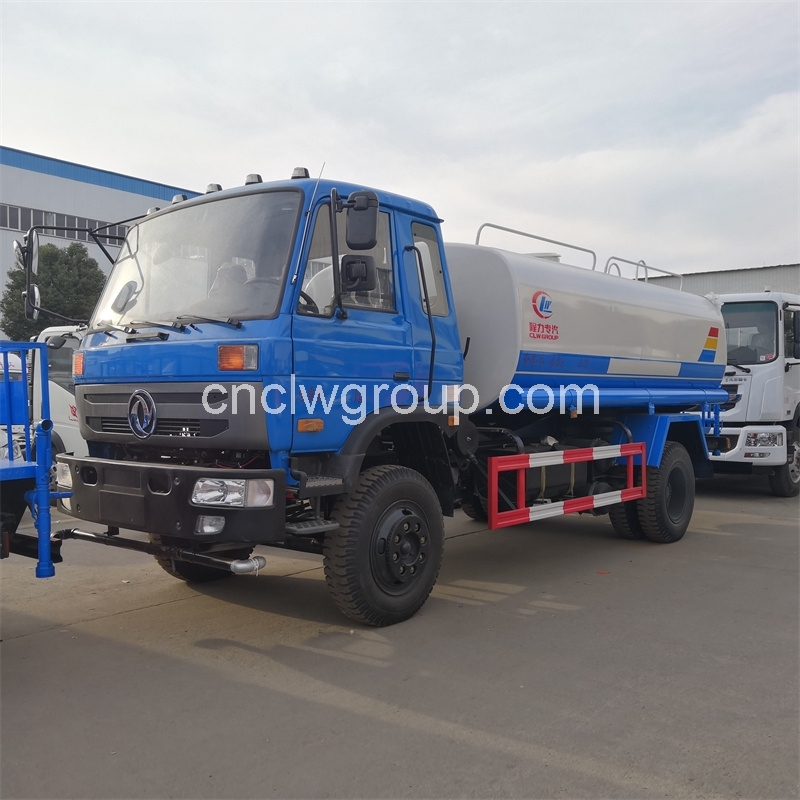

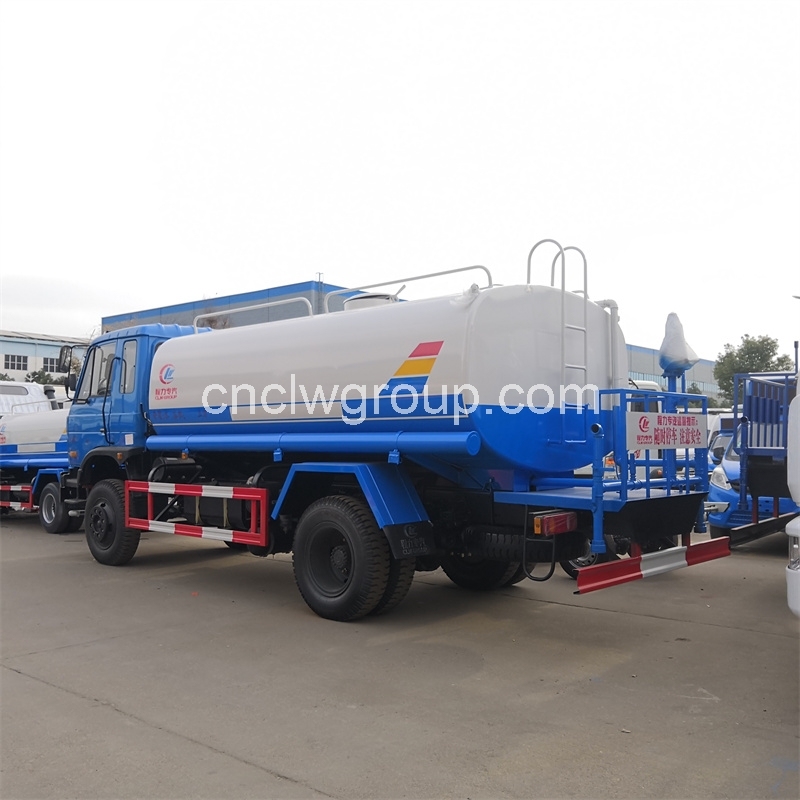

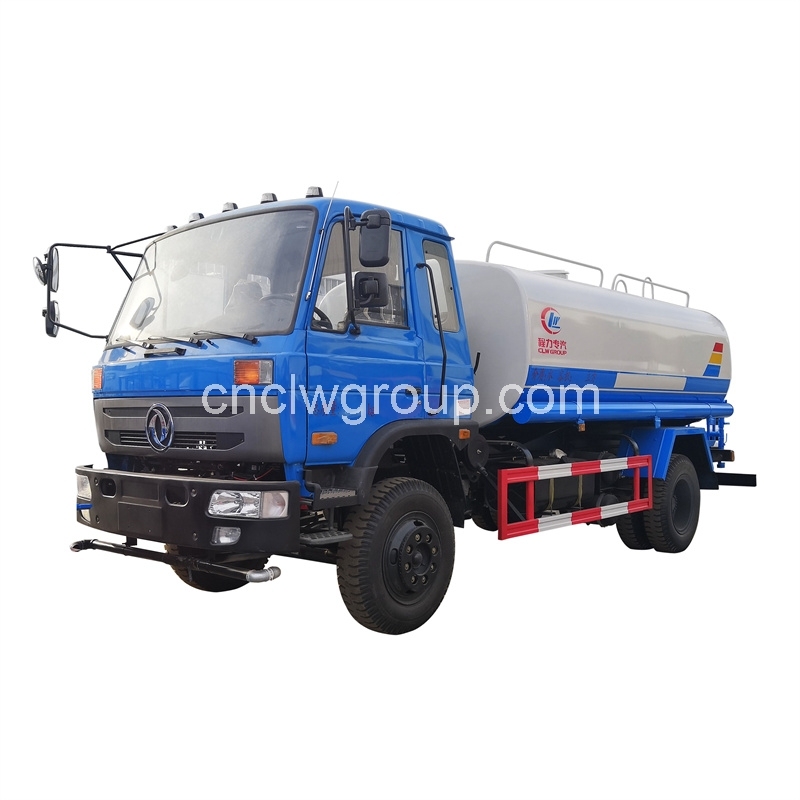

[Multi-directional Images]

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
