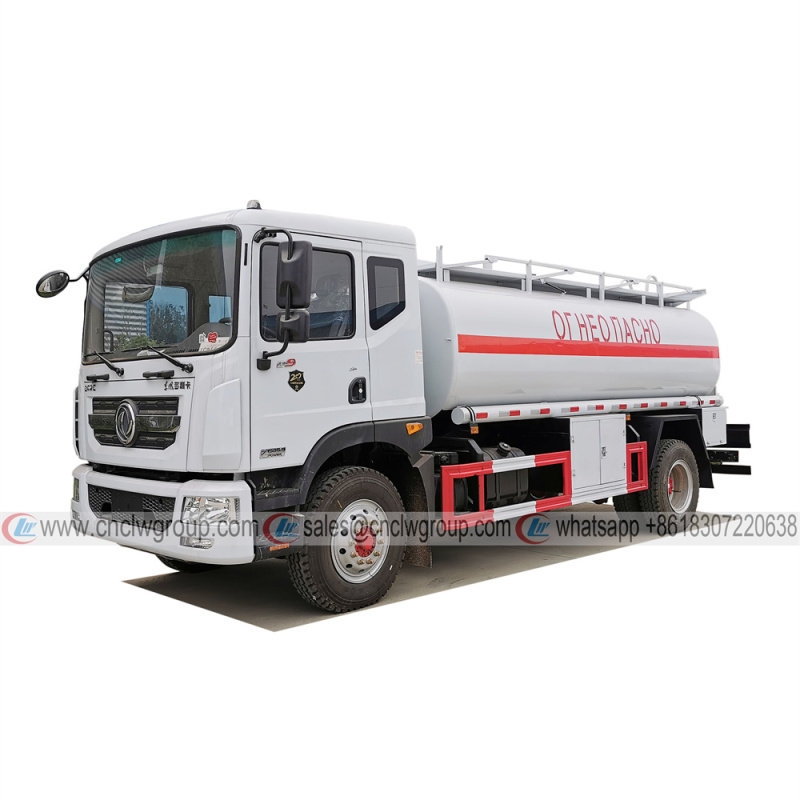

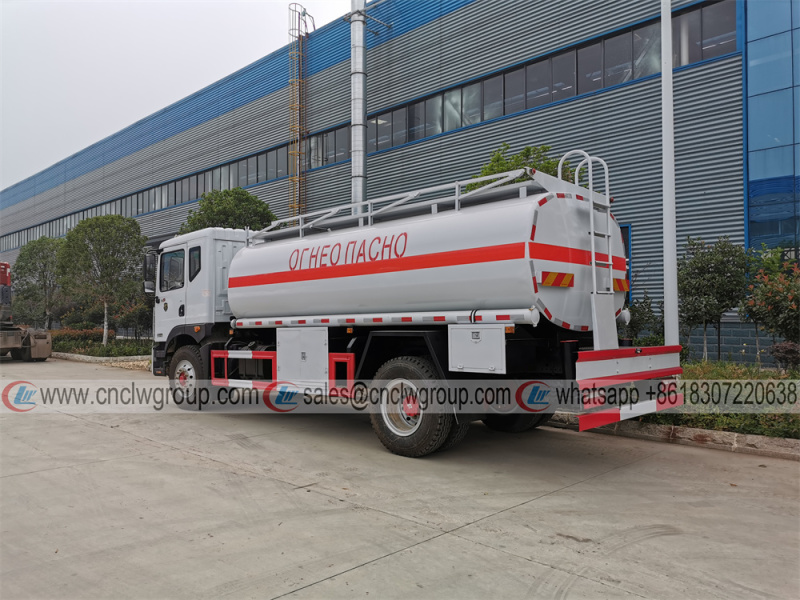

Dongfeng 11000 liter Fuel Refilling Truck

Dongfeng 4x2 11,000 liter Refueling Truck
Engine: Cummins 190HP Euro3
Tir: 6+1 pcs 9.00R20 radial tire
Fuel dispenser unit: 30-50L/min refilling flow, with 15m refueling hose
Pump: 40/45 fuel pump
Valve: 1 pcs DN50 gravity discharge valves
Description
Description

【Contact Us】

Chengli Special Automobile Co.,Ltd

Whatsapp/Wechat: +8618307220638

E-mail: [email protected]

Http://www.cnclwgroup.com

Add: South Suburb Chengli Automobile Industry Park, Suizhou City, Hubei Province, China



【Chassis Parameters】

Dongfeng D9 4x2 chassis,left hand drive cabin, condition new, 4500mm wheelbase, Cummins 190HP Euro3 diesel engine, Fast 8-speed transmission, 9.00R20 radial tires, with one spare tire, 5 ton front axle, 10 ton rear axle, air brake, power assist steering, exhaust pipe front mounted, etc.



【Upper Structure Parameters】

CLW5180GJYD3 Dongfeng D9 11,000 liter fuel dispenser truck, carbon steel tank body, with single tank compartment, with 1 pcs manhole cover, 1 pcs gravity discharge ports, with 1 pcs safety valve foot valve;  with Saike(Bolai) large flow fuel dispenser,  40~50L/min refiling flow, with a 15m refilling hose reel; with 40/45 fue pump, pump-inlet and pump-outlet function; with 2 pcs fuel hose, 2 pcs hose box, valve box, tool box, ladder, top anti-skid walkway, top protective fence, rear bumper, fire extinguishers, dangerous warning stickers, reflective stickers, etc.



【Vehicle Basic Parameters】

Vehicle Basic Specifications
Vehicle Model CLW5180GJYD3 Volume of Tanker 11000 liter
Chassis brand Dongfeng 4x2 New or Used  Condition new
Overall dimension 7985x2500x2980mm Cargo Box Dimension  -
Gross weight 18000 kg Rated Weight 9350 kg
Curb weight 8650 kg Wheelbase 4500mm
Axle No. 2 Cab Seat No. 3 people
Axle Load 5000/10000 (kg) Fuel Type Diesel
Engine

Cummins 190HP Euro3

Steering System LHD, power aissist steering
Transmission Manual, FAST 8-speed Clutch Single dry clutch plate
Brake Air brake Tire No. 6 +1 pcs
Front/Rear Suspension Multi Leaf Springs Tire Model 9.00R20 radial tires
Fuel Tank 160 liter Battery 24V
Max speed 90km/h
Superstructures Parameters
Type Fuel Refilling  Volume of Tanker 11,000 liter
Medium Gasoline, diesel, crude oil, lubricating oil, coal tar and other oil products Material of Tanker Carbon steel
 Manhole 1 pcs, aluminum alloy manhole cover Fuel Discharge Valve

2 pcs, pump inlet and pump outlet

 Safety Valve Bottom emergency cut off valve, breathing valve, anti-overflow probe Pump

1 unit, 40/45fire pump

Pump inlet and pump outlet

Flow Meter

Optional  Level Guage Optional
Refueling Device

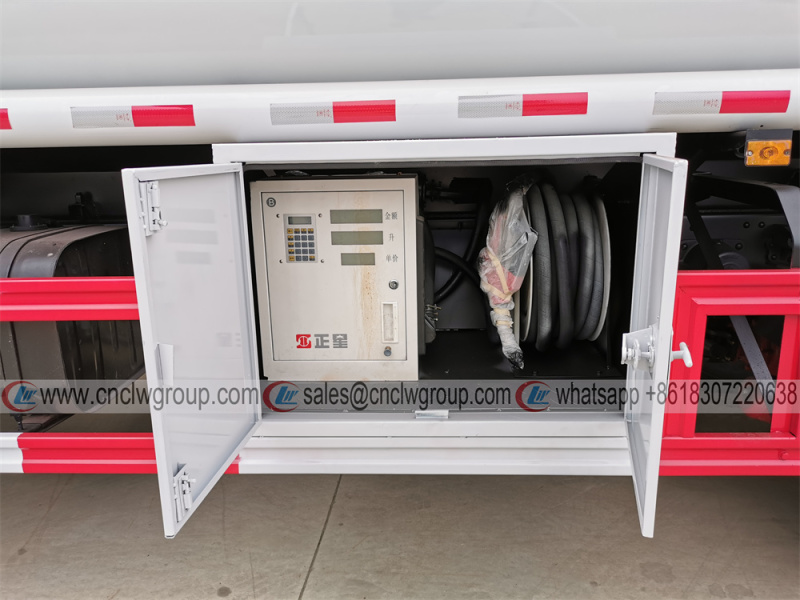

Tax control computer dispenser unit + Refueling nozzle with 15 meter thick hose reel

Safety System

1. Foot emergency cut-off valve;

2. Breathing valve;

3. Anti-overflow probe;

4. Static conductive wire reel;

5. Fire extinguisher.
