【Chassis Parameters】
Dongfeng brand chassis, condition new, 3950mm wheelbase, Cummins 190HP Euro3 dieseI engine, 8-speed transmission, 10.00-20 nylon tires, with one spare tire, 5 ton front axle, 10 ton rear axle, air brake, power assist steering, etc.
【Upper Structure Parameters】
Chengli produced garbage compactor body, with 12 cubic meter volume box, rear with waste bin flip device, can flip 120L/240L/660L waste bins, control panel+manual lever+inside cab controlled.
| Model | CLW5160ZYSD3 |
| Chassis brand | Dongfeng |
| New or Used | New |
| Overall dimension | 7350x2500x3050mm |
| Gross weight | 16000kg |
| Curb weight | 6800kg |
| Load | 10 tons |
| Wheelbase | 4500mm |
| Engine power | 170HP or 190HP optional |
| Fuel type | DieseI |
| Transmission | 8-speed |
| Brake | air brake |
| Axle load | 5/10 tons |
| Tire | 6+1 pcs, 10.00-20 |
| Max speed | 90km/h |

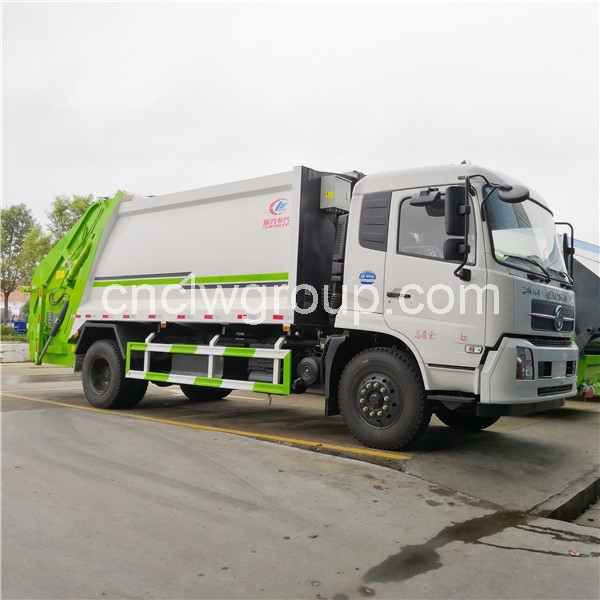

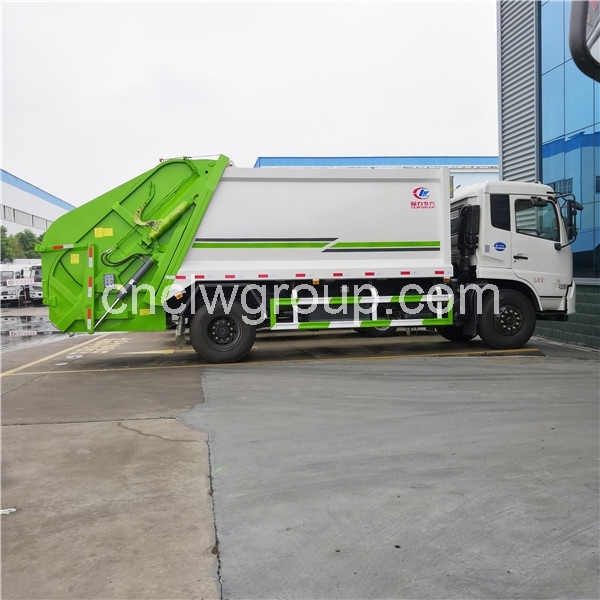

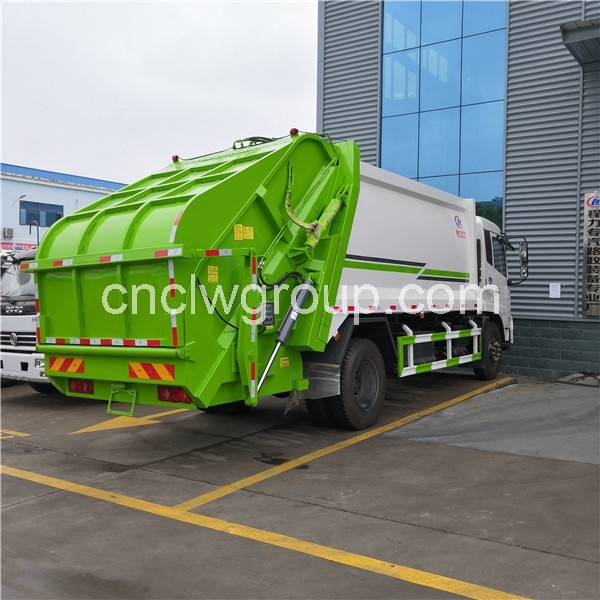

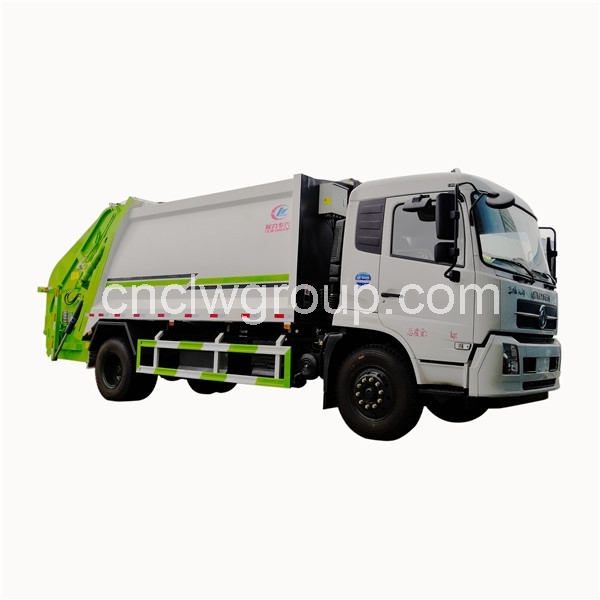

【Multi-directional Images】
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
