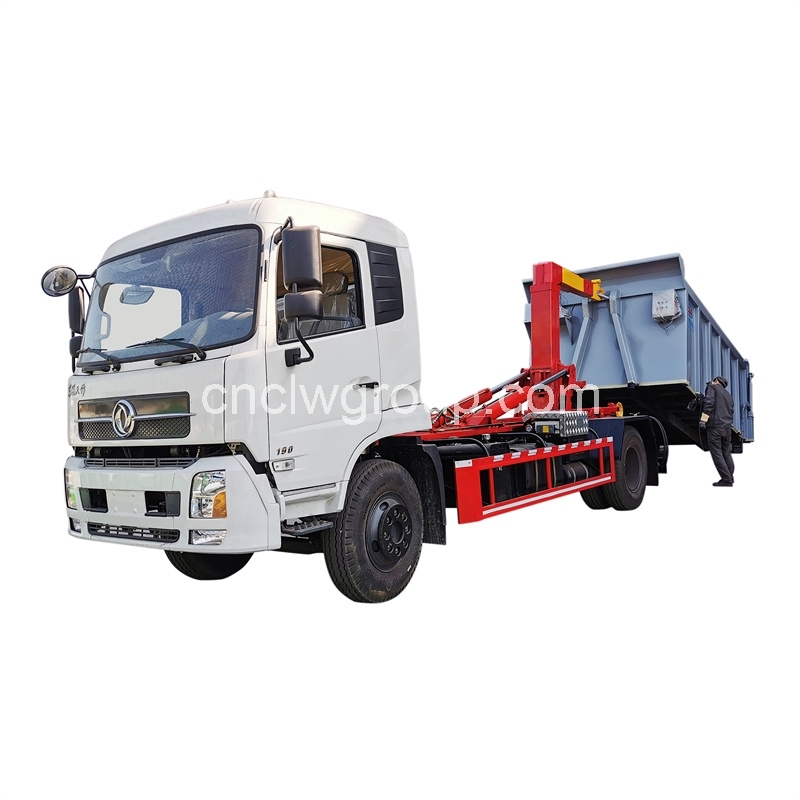

Dongfeng 15 ton hook lift garbage truck swing arm truck

- Dongfeng 190HP Euro3 truck
- 8-speed transmission
- 10.00-20 nylon tire
- Hook lift: 15 tons heavy hook lift system, extension hydraulic arm
- Waste bin: 12m3 waste bin, with hydraulic top cover gate and tail gate
Description
Description

【Chassis Parameters】

Dongfeng brand  chassis, condition new, 5000mm wheelbase, Cummins 190HP Euro3 dieseI engine, 8-speed transmission, 10.00R20 radial tires, with one spare tire, 5.6 ton front axle, 10.4 ton rear axle, air brake, power assist steering, etc.



【Upper Structure Parameters】

Hook lift system: 15 tons rated lifting capacity, with strengthened hook arm boom, extension hydraulic boom, can lift and can dump;

Waste bin: 12 m3 volume, 4mm side, 5mm bottom; waste bin with hydraulic top cover gate, and with hydraulic tail gate;

Control: manual control + remote controlled



Model CLW5180ZXXD3
Chassis brand Dongfeng
New or Used New
Overall dimension 7850x2500x3450mm
Gross weight 18000kg
Curb weight 7800kg
Load 12 tons
Wheelbase 5000mm
Engine power Cummins 190HP Euro3
Fuel type DieseI
Transmission 8-speed
Brake air brake
Axle load 5.4/10.6tons
Tire 6+1 pcs, 10.00R20 radial tires
Max speed 90km/h
Hook Lifting System Hook lift capacity: 15 tons
Hydrualic system: china famous brand + import valves
Hook center height: 1050mm
Operation: manual levers + remote controlled
Waste bin Volume: 12 m3
Material: 4mm side, 4mm bottom
Top cover gate: hydraulic
Tailgate: hydraulic

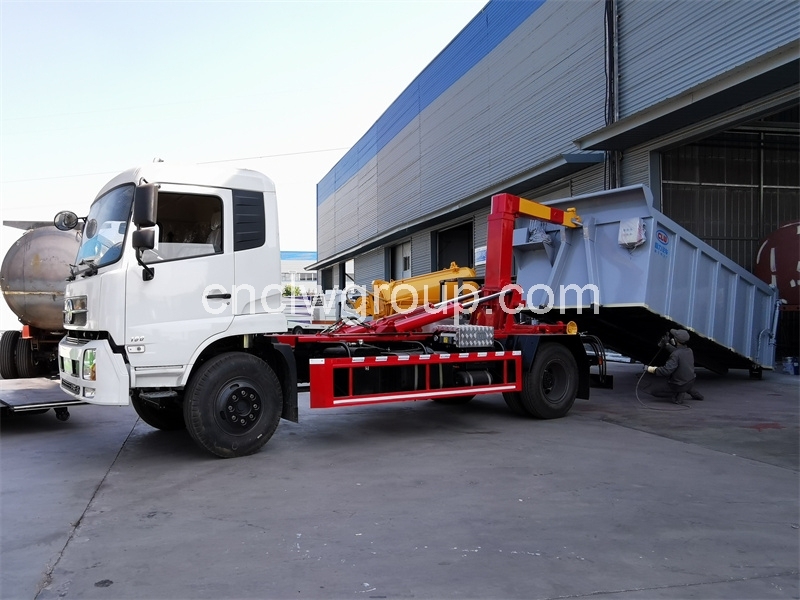

【Multi-directional Images】



As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
