【Chassis Parameters】
Dongfeng 4x2 chassis,left hand drive cabin, condition new, 4500mm wheelbase, Cummins 190HP Euro3 diesel engine, Fast 8-speed transmission, 10.00-20 nylon tires, with one spare tire, 5 ton front axle, 10 ton rear axle, air brake, power assist steering, exhaust pipe front mounted, etc.
【Upper Structure Parameters】

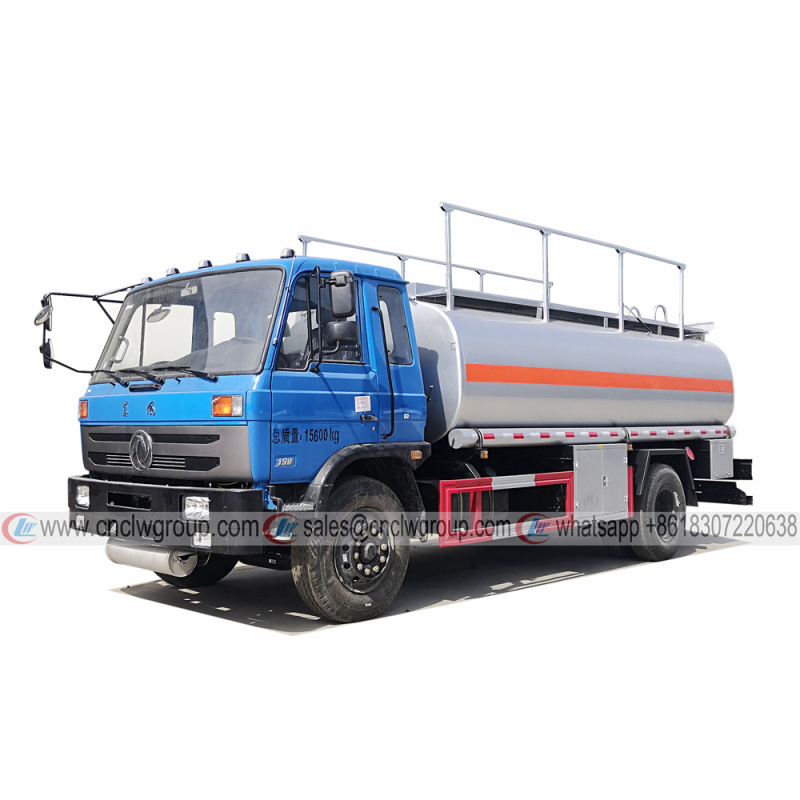

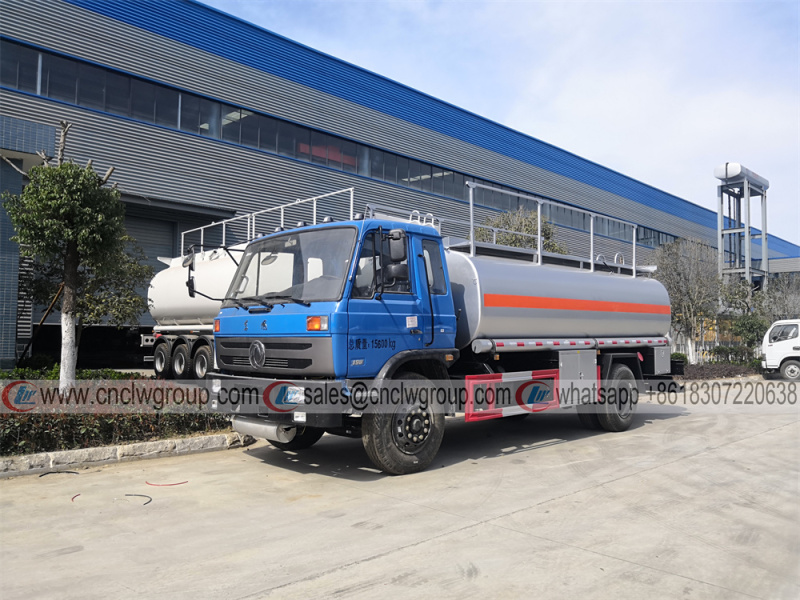

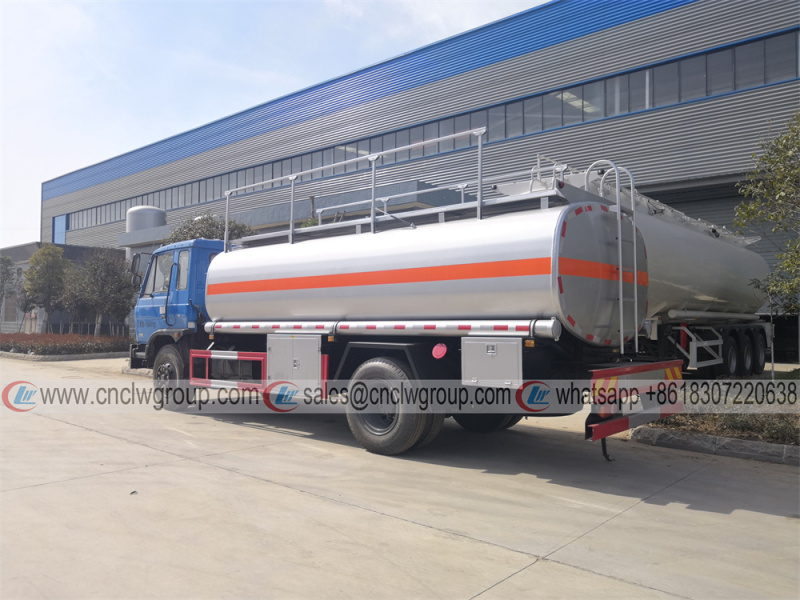

CLW5160GJYD3 Dongfeng 12,000 liter fuel tanker truck, carbon steel tank body, with single tank compartment, with 1 pcs manhole cover, 1 pcs gravity discharge ports, with 1 pcs safety valve foot valve; with Saike(Bolai) large flow fuel dispenser, 40~50L/min refiling flow, with a 15m refilling hose reel; with 40/45 fue pump, pump-inlet and pump-outlet function; with 2 pcs fuel hose, 2 pcs hose box, valve box, tool box, ladder, top anti-skid walkway, top protective fence, rear bumper, fire extinguishers, dangerous warning stickers, reflective stickers, etc.
【Vehicle Basic Parameters】
Vehicle Basic Specifications |
|||
Vehicle Model | CLW5160GJYD3 | Volume of Tanker | 12000 liter |
Chassis brand | Dongfeng 4x2 | New or Used | Condition new |
Overall dimension | 7950x2500x2980mm | Cargo Box Dimension | - |
Gross weight | 16000 kg | Rated Weight | 7350 kg |
Curb weight | 8650 kg | Wheelbase | 4500mm |
Axle No. | 2 | Cab |
Dongfeng 153 classic cabin, 3 people |
Axle Load | 5000/10000 (kg) | Fuel Type | Diesel |
Engine |
Cummins 190HP Euro3 |
Steering System | LHD, power aissist steering |
Transmission | Manual, FAST 8-speed | Clutch | Single dry clutch plate |
Brake | Air brake | Tire No. | 6 +1 pcs |
Front/Rear Suspension | Multi Leaf Springs | Tire Model | 10.00-20 nylon tires |
Fuel Tank | 160 liter | Battery | 24V |
Max speed | 90km/h |
||
Superstructures Parameters |
|||
Type | Fuel refueling |
Volume of Tanker | 12,000 liter |
Medium | Gasoline, diesel, crude oil, lubricating oil, coal tar and other oil products | Material of Tanker | Carbon steel |
Manhole | 1 pcs, aluminum alloy manhole cover | Fuel Discharge Valve |
2 pcs, pump inlet and pump outlet |
Safety Valve | Bottom emergency cut off valve, breathing valve, anti-overflow probe | Pump |
1 unit, 40/45fire pump Pump inlet and pump outlet |
Flow Meter |
Optional | Level Guage | Optional |
Refueling Device |
Tax control computer dispenser unit + Refueling nozzle with 15 meter thick hose reel |
||
Safety System |
1. Foot emergency cut-off valve; 2. Breathing valve; 3. Anti-overflow probe; 4. Static conductive wire reel; 5. Fire extinguisher. |
