【Chassis Parameters】
Dongfeng Dolicar single chassis, condition new, 3 seats 3800mm wheelbase, Yuchai 120HP Euro3 dieseI engine, Manual 5-speed transmission, 7.50R16 radial tires, with one spare tire, 2.5 ton front axle, 5.5 ton rear axle, air brake, power assist steering, with air conditioning, etc.
【Upper Structure Parameters】

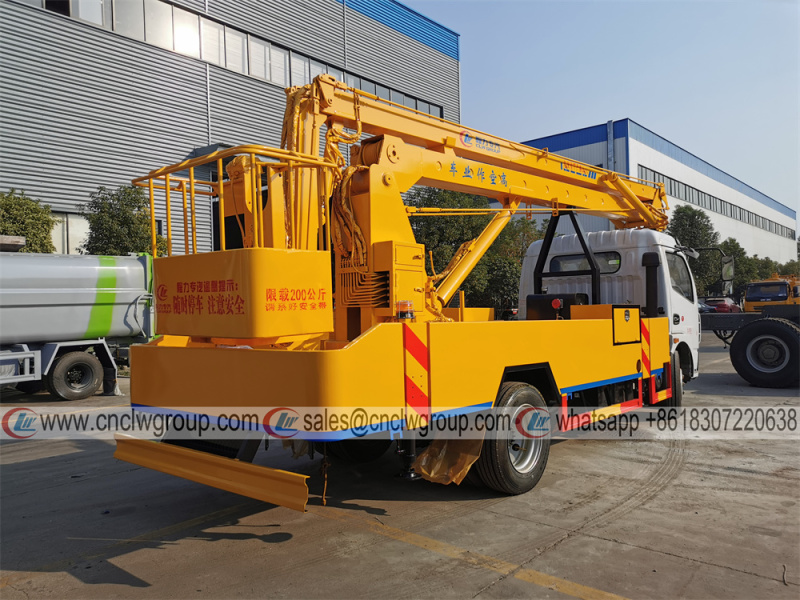

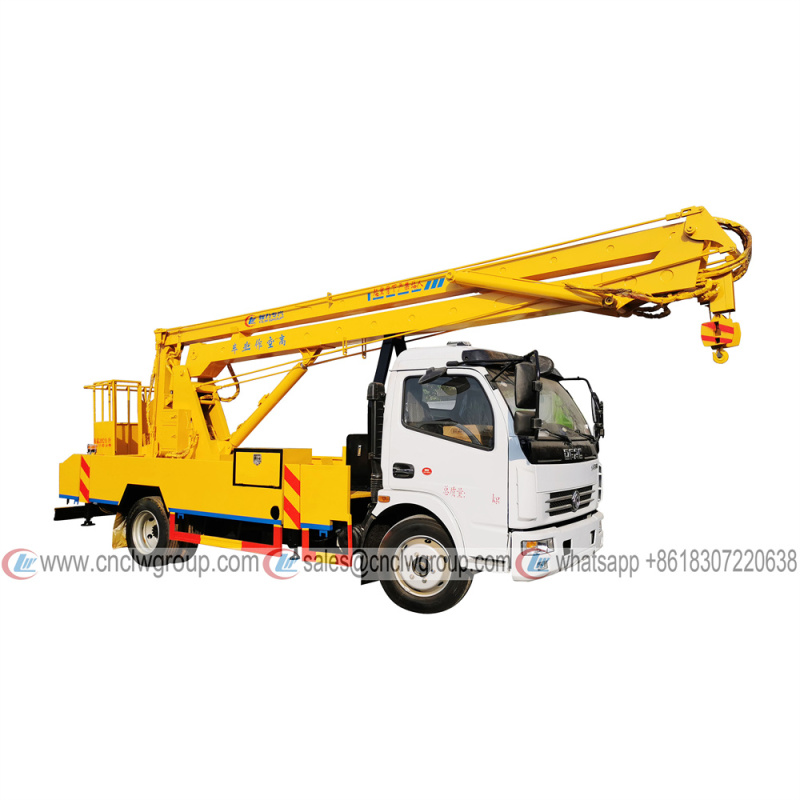

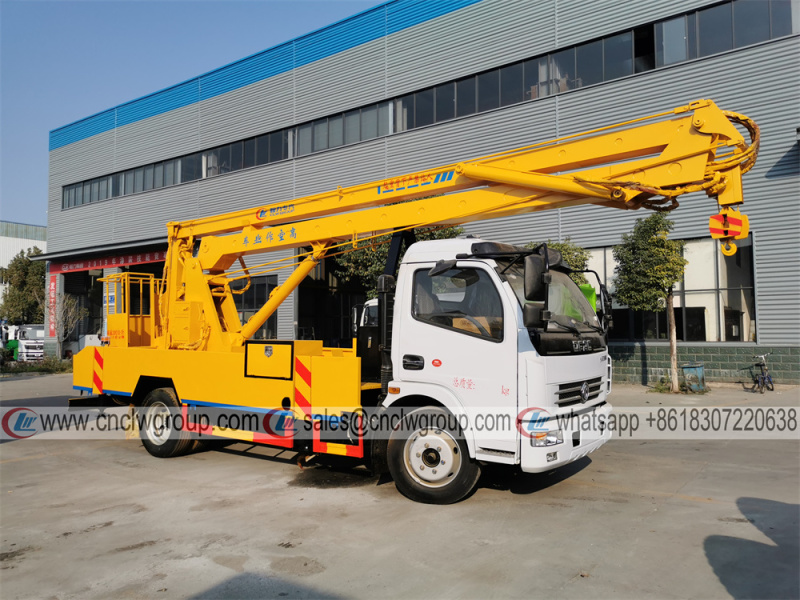

Knuckle arm aerial bucket trucks refer to special vehicles that transport people and equipment to the scene and perform aerial operations. It has straight telescopic arm aerial truck and knuckle arm aerial truck.
| Vehicle Basic Specifications |
|||
| Vehicle Model | CLW5080JGKQ5 | Maximum Working Height | 18 meters |
| Chassis brand | Dongfeng | New or Used | Condition new |
| Overall dimension | 7450x2250x3150mm | Cargo Box Dimension | - |
| Gross weight | 8500 kg | Rated Weight | - |
| Curb weight | 6850 kg | Wheelbase | 3800 mm |
| Axle No. | 2 | Cab Seat No. | 3 |
| Axle Load | 2500/5500 kg | Fuel Type | Diesel |
| Engine | Yuchai 120HP Euro3 | Steering System | LHD, power aissist steering |
| Transmission | Manual 5-speed | Clutch | Single dry clutch plate |
| Brake | Air brake | Tire No. | 6 +1 pcs |
| Front/Rear Suspension | - | Tire Model | 7.50R16 radial tires |
| Fuel Tank | 100 liter | Battery | 24V |
| Max speed | 90km/h |
||
| Superstructures Parameters |
|||
| Model | CLW GKZ18 | Maximum Working Height | 18 meters |
| Boom Type | 3-section arm, telescopic arm | Maximum Working Radius | 7.8 meters |
| Basket Dimension | 1000x760x1100 mm | Slewing Angle | 360° |
| Basket Load | 200kg | Outrigger | Front H rear H shape hydraulic legs |
| Basket Slewing | ± 90 degree | Outrigger Span |
Horizontal 3.2 meter, Vertical 3.6 meters |
| Operation System |
One set at down turntable position, one set on upper basket. |
||
| Safety System |
1. Outrigger leveling bubble; 3. Up and Down operation anti-lock, Upper operation on basket & down operation at turntable can't operation at the same time; 4. When people on basket, outrigger operation is locked, can't operate, to prevent damage happened; 5. Emerngecy pump is installed to prevent emergency situation. |
||
【Customer's Feedback】
vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
