【Chassis Parameters】

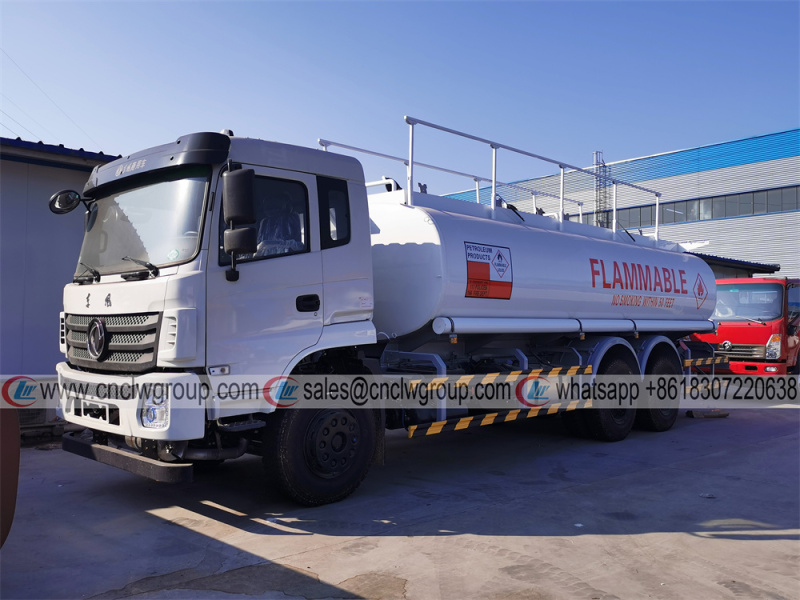

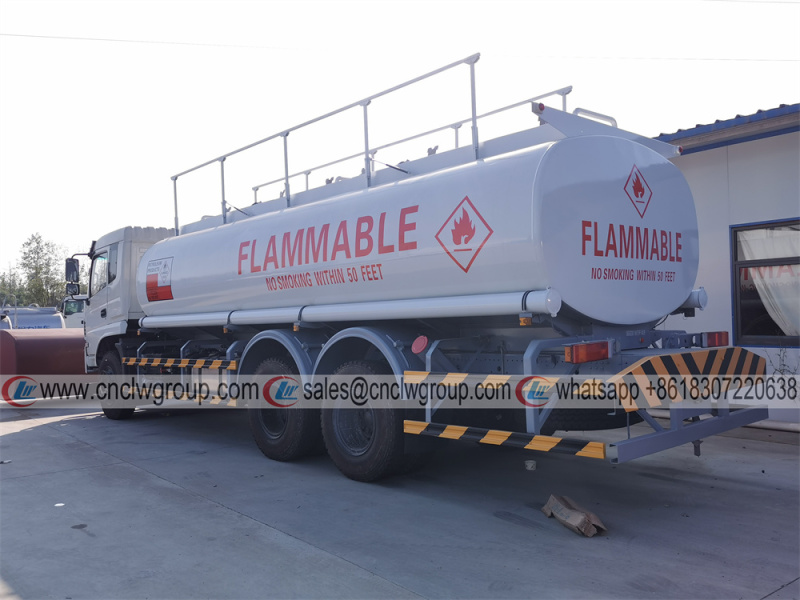

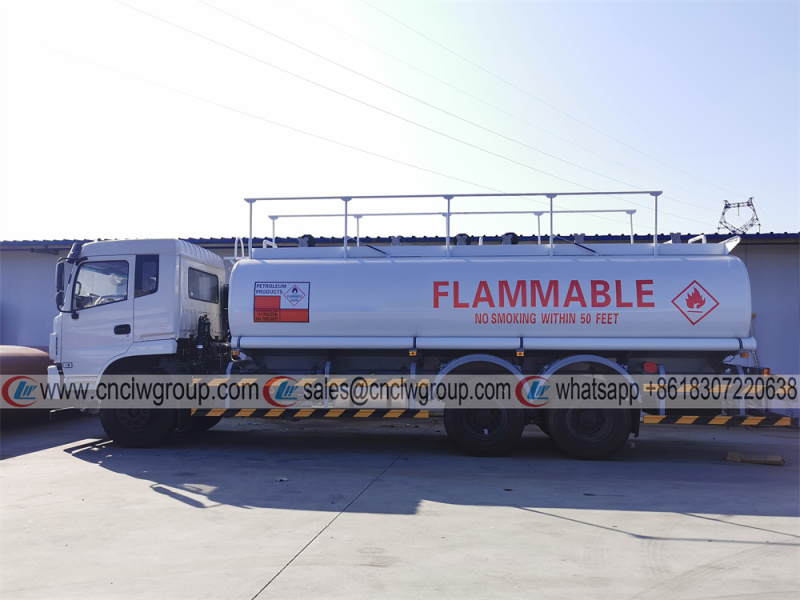

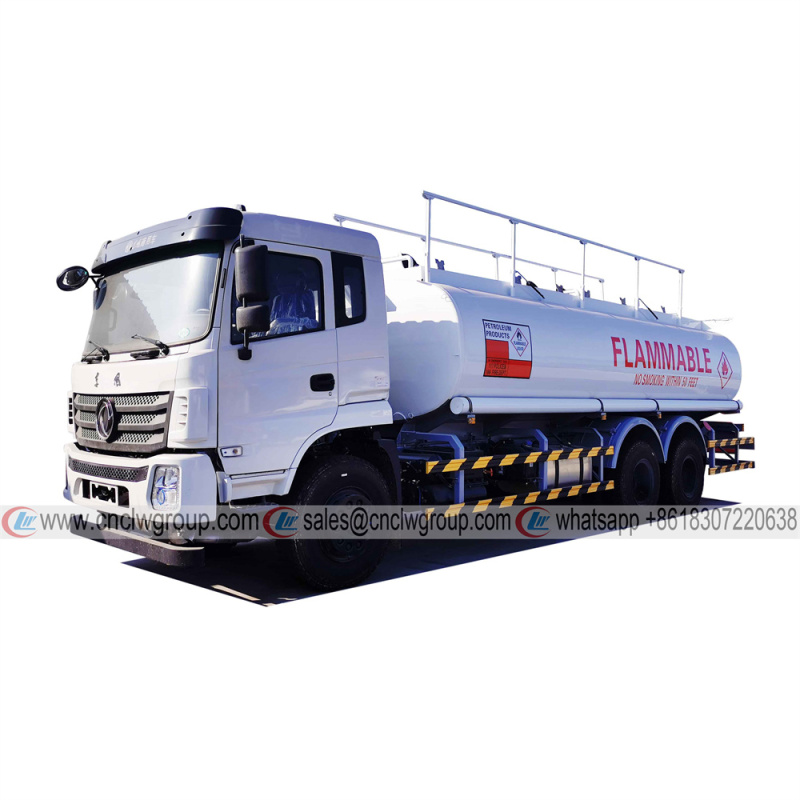

Chassis of Dongfeng Fuel Tank Truck: Dongfeng 6x4 chassis, condition new, 4350+1350mm wheelbase, Cummins 210HP or Yuchai 260HP diesel engine, Fast 9-speed transmission, 10.00R20 radial tires, with one spare tire, 5 ton front axle, 10 ton rear axle, air brake, power assist steering, air brake, exhaust pipe front mounted, etc.
【Upper Structure Parameters】
Chengli oil tanker, oil tanker: also known as mobile refueling truck, fuel tank truck, fuel tanker truck, computer tax-controlled refueling truck, oil tanker, oil loading truck, oil truck, oil truck, oil transporter, edible oil transporter, mainly used for oil Transportation and storage of derivatives (gasoline, diesel, crude oil, lubricating oil, coal tar and other oil products). According to different uses and use environments, it has a variety of refueling or oil transportation functions, including oil absorption, pumping oil, and various oil packaging and distribution functions.
Chengli fuel tank truck capacity: chengli produced fuel tanker volume from 1000 liter to 60000 liter, tanker truck, tanker trailer, tanker container, etc. We accept customzied services and designeds.
Chengli fuel tank truck has: dongfeng fuel tank truck,howo fuel tanker,shacman oil tanker truck,isuzu fuel tanker truck,foton fuel tank truck,iveco fuel truck,jac oil tank truck,etc.
【Vehicle Basic Parameters】
| Vehicle Basic Specifications |
|||
| Vehicle Model | CLW5250GJYD3 | Volume of Tanker | 20000 liter |
| Chassis brand | Dongfeng 6x4 | New or Used | Condition new |
| Overall dimension | 9850x2500x30500mm | Cargo Box Dimension | - |
| Gross weight | 25000 kg | Rated Weight | 16500 kg |
| Curb weight | 8500 kg | Wheelbase | 4350+1350mm |
| Axle No. | 3 | Cab Seat No. | 3 people, with a sleeper |
| Axle Load | 6500/6500/12000 kg | Fuel Type | Diesel |
| Engine |
Cummins 210HP Euro3 Yuchai 260HP Euro3 |
Steering System | LHD, power aissist steering |
| Transmission | Manual 8-speed | Clutch | Single dry clutch plate |
| Brake | Air brake | Tire No. | 8 +1 pcs |
| Front/Rear Suspension | - | Tire Model | 10.00R20 radial tires |
| Fuel Tank | 350 liter | Battery | 24V |
| Max speed | 90km/h |
||
| Superstructures Parameters |
|||
| Type | Fuel Transport Tanker | Volume of Tanker | 20,000 liter |
| Medium | Gasoline, diesel, crude oil, lubricating oil, coal tar and other oil products | Material of Tanker | Aluminum alloy |
| Manhole | 2 pcs, aluminum alloy manhole cover | Fuel Discharge Valve |
2 pcs |
| Safety Valve | Bottom emergency cut off valve, breathing valve, anti-overflow probe | Pump |
1 unit, 60/90 fire pump Pump inlet and pump outlet |
|
Flow Meter |
Optional | Level Guage | Optional |
| Refueling Device |
Refueling nozzle with 15 meter thick hose reel (optional) |
||
| Safety System |
1. Foot emergency cut-off valve; 2. Breathing valve; 3. Anti-overflow probe; 4. Static conductive wire reel; 5. Fire extinguisher. |
||
*Visit and subscribe www.cnclwgroup.com for more details about 5000 liter fuel tank truck and Fuel Tank Truck Series. If you need any help, send us a meesage to [email protected] or directly contact us thru whatsapp +8618307220638 for instant communication.
