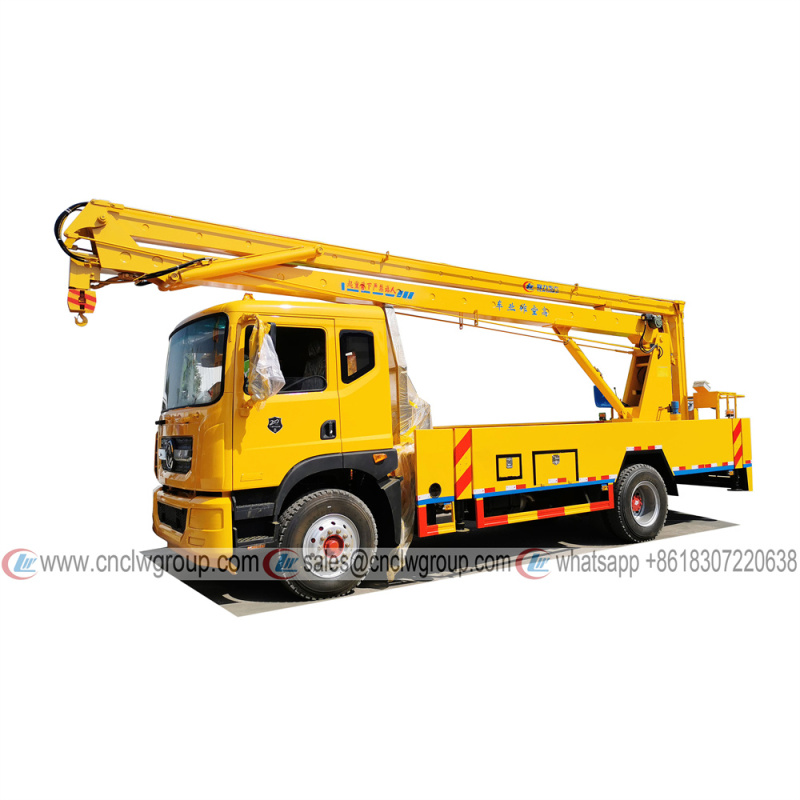

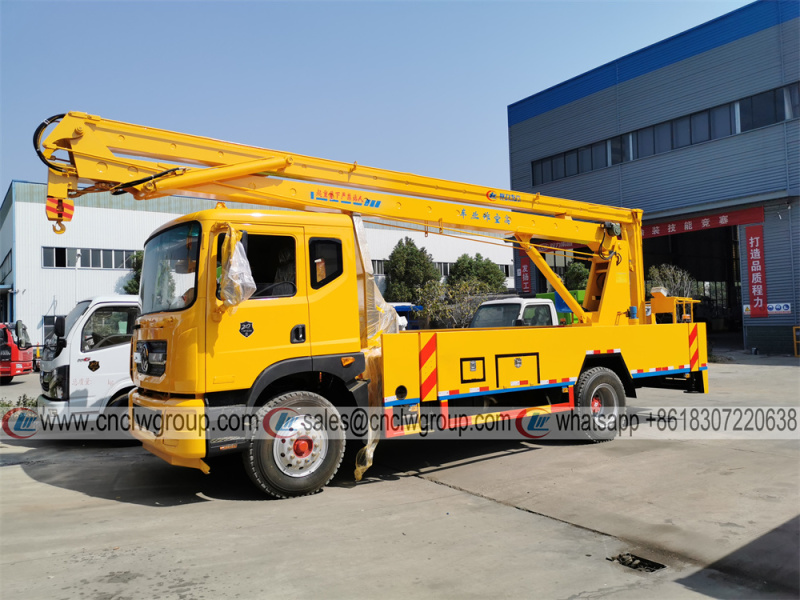

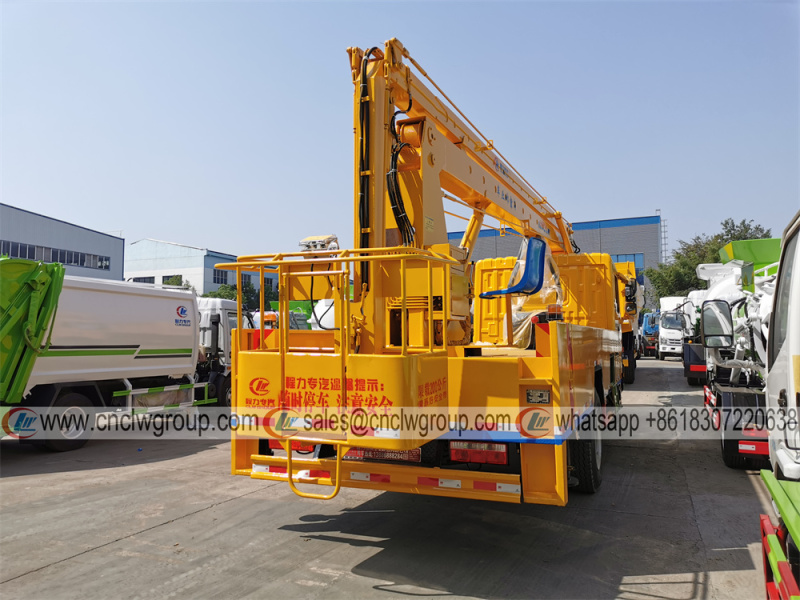

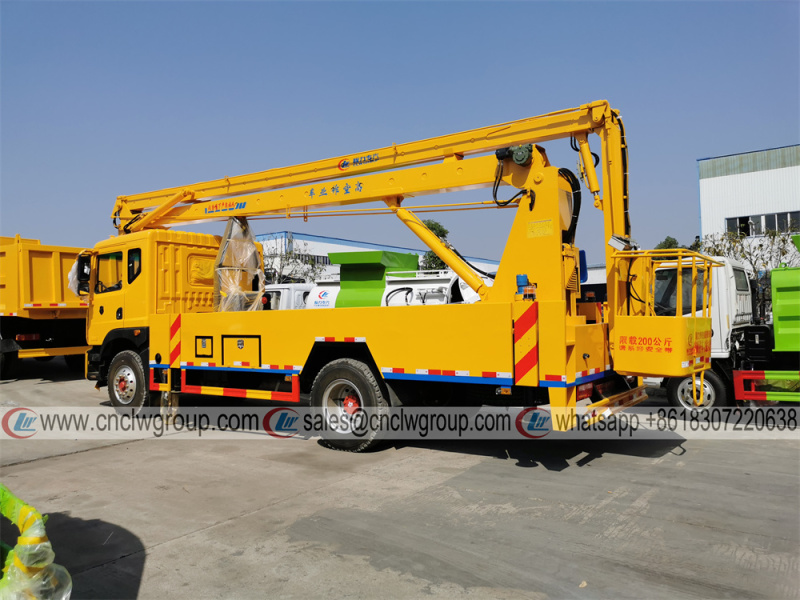

Dongfeng 22m Knuckle Aerial Work Truck

- Dongfeng 22m aerial bucket truck
- 190HP Euro3 engine
- 2m working height, 360° slewing
- Basket 200kg load, ±90° rotary
- 4 pcs hydraulic outriggers

【Chassis Parameters】

Dongfeng D9 single & half chassis, condition new, 3 seats with a sleeper, 4500mm wheelbase, Cummins 190HP Euro3 dieseI engine, Fast 8-speed transmission, 9.00R20 radial tires, with one spare tire, 5 ton front axle, 10 ton rear axle, air brake, power assist steering, with air conditioning, etc.


【Upper Structure Parameters】

Aerial bucket trucks refer to special vehicles that transport people and equipment to the scene and perform aerial operations. It has straight telescopic arm aerial truck and knuckle arm aerial truck.

  • Knuckle arm boom system, 3 section
  • Maximum working height 16 meters
  • Turntable 360° slewing
  • Basket 200kg load, size 1000x760x1100mm,  ±90° rotary
  • Control operation: at turntable seat and in basekt
  • 4 pcs hydraulic outriggers
  • Engineering rotary lights to warn people


Vehicle Basic Specifications
Vehicle Model CLW5140JGKQ5 Maximum Working Height 22 meters
Chassis brand Dongfeng New or Used  Condition new
Overall dimension 7650x2500x3330mm Cargo Box Dimension  -
Gross weight 14500 kg Rated Weight  -
Curb weight 8650 kg Wheelbase  4500 mm
Axle No. 2 Cab Seat No. 3
Axle Load 5000/10000 kg Fuel Type Diesel
Engine Cummins 190HP Steering System LHD, power aissist steering
Transmission Fast 8-speed Clutch Single dry clutch plate
Brake Air brake Tire No. 6 +1 pcs
Front/Rear Suspension - Tire Model 9.00R20 radial tires
Fuel Tank 200 liter Battery 24V
Max speed 90km/h
Superstructures Parameters
Model CLW GKZ22 Maximum Working Height 22 meters
Boom Type 3-section arm, telescopic arm Maximum Working Radius 10.2 meters
 Basket Dimension 1000x760x1100 mm Slewing Angle 360°
 Basket Load 200kg  Outrigger Front V rear H shape hydraulic legs
Basket Slewing ± 90 degree Outrigger Span

Horizontal 3.4 meter, Vertical 3.8 meters

Operation System

One set at down turntable position,  one set on upper basket.

Safety System

1. Outrigger leveling bubble;

3. Up and Down operation anti-lock, Upper operation on basket & down operation at turntable can't operation at the same time;

4. When people on basket, outrigger operation is locked, can't operate,  to prevent damage happened;

5. Emerngecy pump is installed to prevent emergency situation.






























Customer's Feedback

vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
