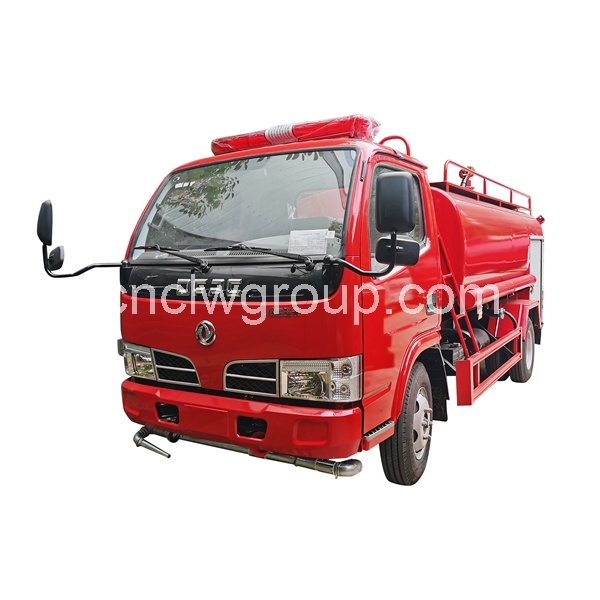

Dongfeng 4000 liter Fire Sprinkler Truck

- Dongfeng 4x2 Fire Water Sprinkler Truck
- Water tank: 4,000 liter
- Yunnei 90 Euro3 engine
- 7.00R16 radial tires
- Fire pump: 1200 liter/min
- Fire monitor: 1200 liter/min
- Water jetting rang: 45m
- Water sprinkler: front/rear water spraying n

【Chassis Parameters】

Dongfeng 4x2 new cab  chassis, condition new, single cab, 3 seats with a small sleeper, 3300mm wheelbase, Yunnei 90HP Euro 3 dieseI engine, manual 5-speed transmission, 7.00R16 radial tires, with one spare tire, 1.5 ton front axle, 3.5 ton rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

- Chengli produced Dongfeng fire fighting water sprinkler,  mainly used for fire fighitng, water tank & spraying system, multi functional for water delivery, water sprinkling, emergency fire fighting, spray water dust suppression, etc;

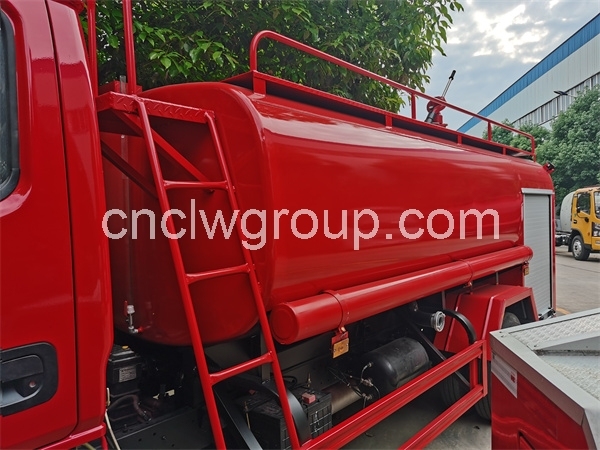

- 6,000 liter carbon steel tank, inside with anti-corrosion treatment, with one DN460mm manhole;

- with 1200 liter/min fire pump, 1.0MPa, suction depth 6 meters;

- with 1200 liter/in fire monitor, 1.0MPa, water jetting range  45 meters;

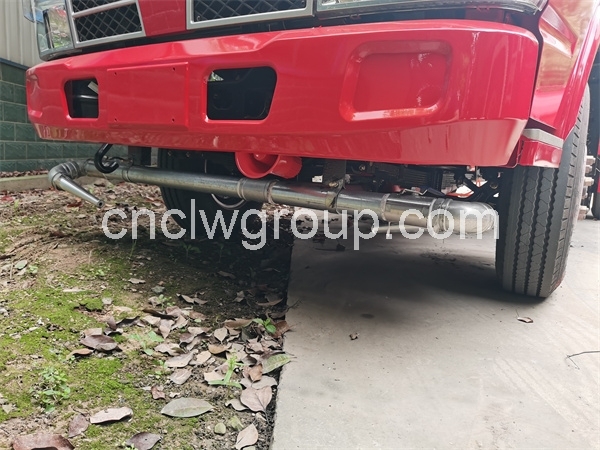

- with front/rear/side water spraying nozzles, water spraying range 12-16 meters;


Model CLW5070GSSD3
Chassis brand Dongfeng
New or Used New
Overall dimension 5995x2000x3150mm
Gross weight 7360kg
Curb weight 4500kg
Load 4 tons
Wheelbase 3300mm
Engine power Yunnei 90HP Euro3
Fuel type DieseI
Transmission Manual, 5-speed gearbox
Brake air brake
Axle load 1.5/3.5 Tons
Tire 6+1 pcs, 7.00R16 radial tires
Max speed 90km/h


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
