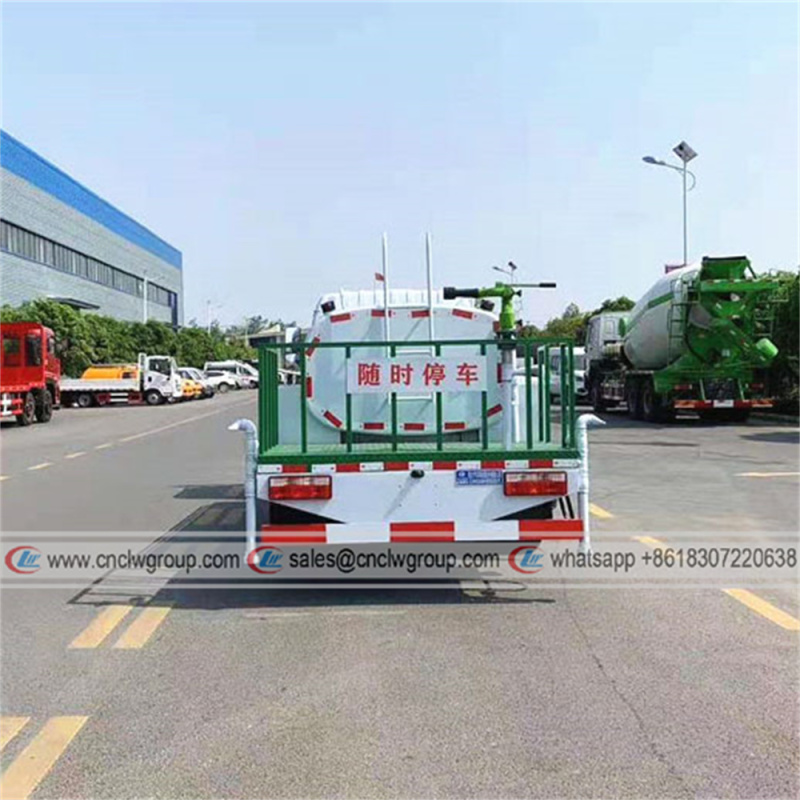

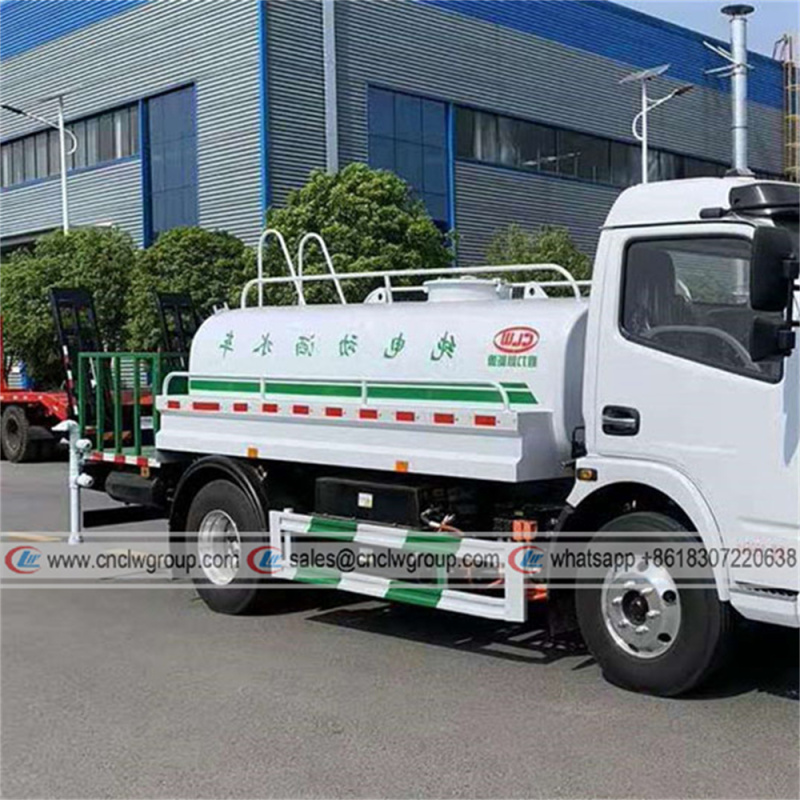

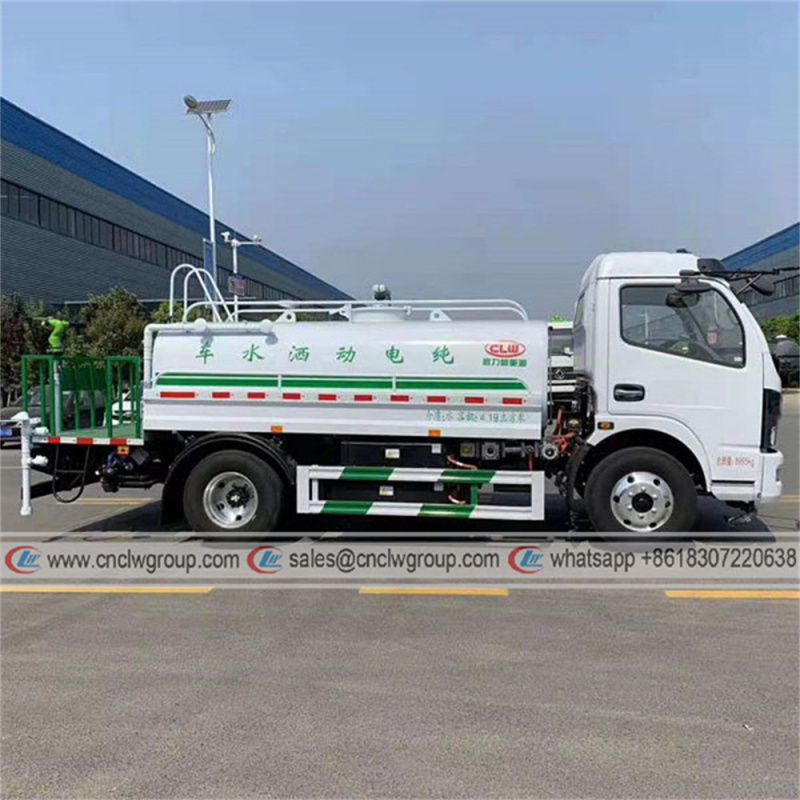

Dongfeng 4m3 Electric Water Truck

- Dongfeng 4,000 liter Electric Water Truck
- Battery: 158KWH
- Battery set voltage: 512V
- Motor Power: 120KW
- Travel Cruising Mileage: 320km
- Charge time: about 1.5 hours
- Water tank material: stainless steel
- Front/side/rear spray nozzles
Description
Description

【Chassis Parameters】

Dongfeng electric chassis, Dongfeng Captain single cabin, 3800mm wheelbase, AVIC 145KWH battery, 444.36V battery set voltage, chassis motor maximum power 145kW, chassis full load cruising mileage 300km,  8.25R16 radial tires, with one spare tire, 3.6 ton front axle, 5.5 ton rear axle, air brake, power assist steering, etc.



【Upper Structure Parameters】

Electric water sprinkler upper configuration:

The chassis battery provides power and is driven by a permanent magnet synchronous motor. The speed can be adjusted in real time as needed. The power take-off operation has nothing to do with the chassis driving system, and the car experience is excellent. Carbon steel box with anti-corrosion and anti-rust, low water level alarm system. The interior of the cab is equipped with a reversing image and an indoor monitoring system for electronic water cannons, 60/90 or 40/45 or 50/110 centrifugal low-pressure water pumps, front flushing, rear sprinklers and stainless steel electronic water cannons are all automatically controlled. Aluminum alloy rear plate, side protection, etc.





As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
