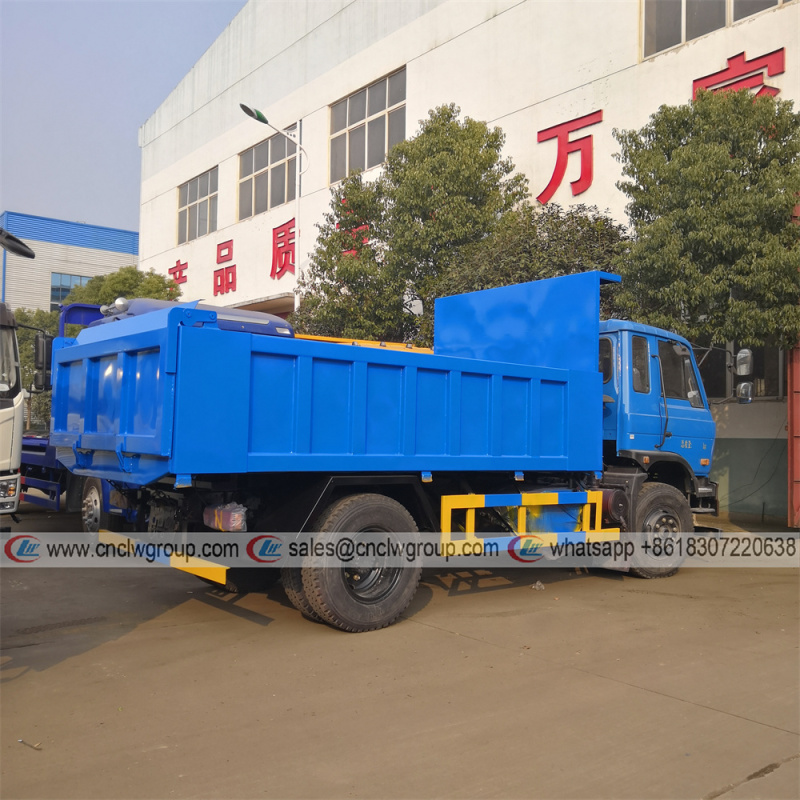

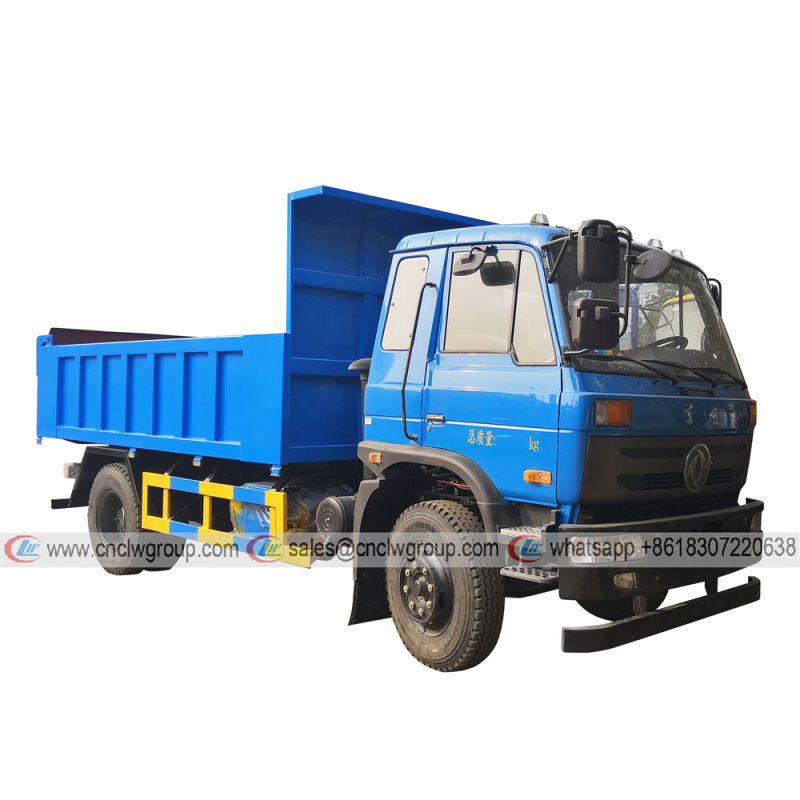

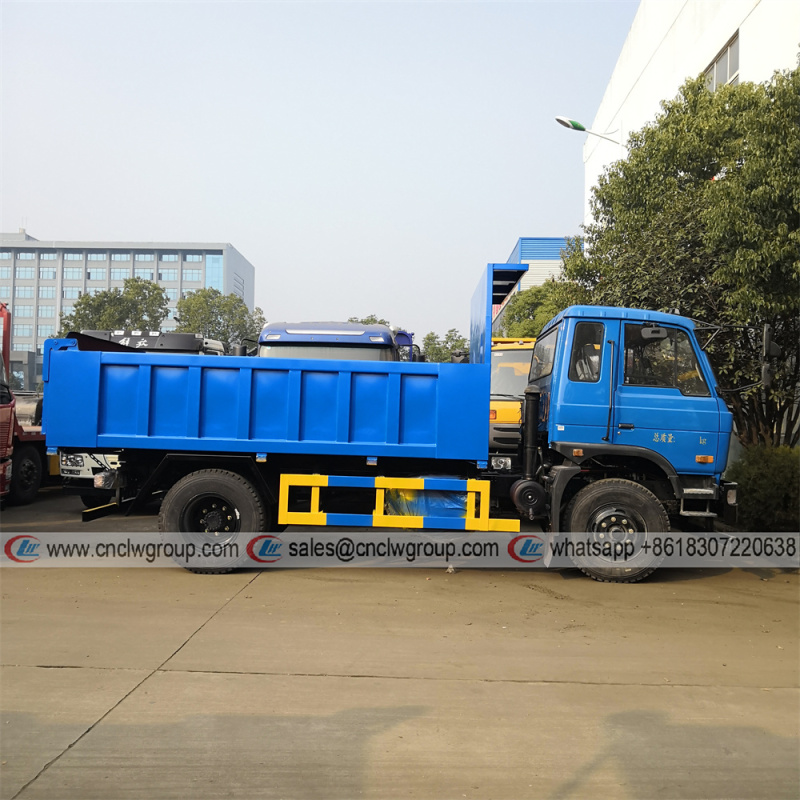

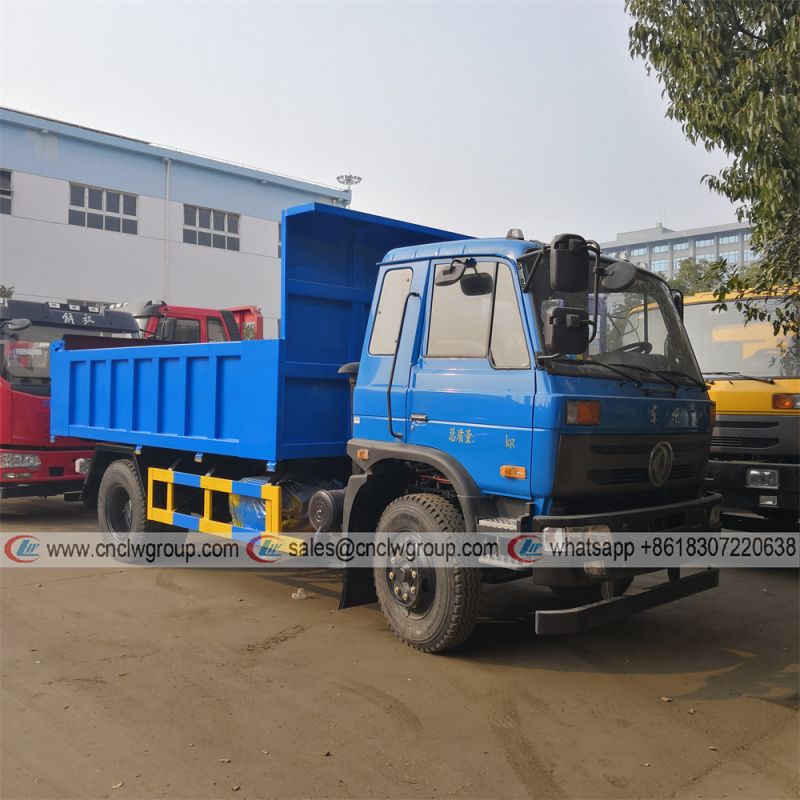

Dongfeng 4x2 10 ton Dump Truck

Dongfeng 4x2 10 Tons Dump Truck
Engine: Cummins 170HP Euro3
Tir: 6+1 pcs 10.00-20 radial tire
Load Capacity: 10 tons
Dump Box: 4500x2300x800mm
Rear dumping: middle double hydraulic cylinders
Description
Description

【Chassis Parameters】

Dongfeng 4x2 chassis, single cabin, condition new, 3950mm wheelbase, Cummins 170HP Euro3 diesel engine, manual 8-speed transmission, 10.00-20 nylon tires, with one spare tire, 3.8 ton front axle, 9 ton rear axle, air brake, power assist steering, exhaust pipe front mounted, etc.



【Upper Structure Parameters】

Dumper box size 4500x2300x800mm;  dump box material 4mm side wall, 6mm floor plate; dump box middle double cylinder lifting jack, dumping angle 45°; control inside cabin, can lift box, down box, stop box.



Vehicle Basic Specifications
Model CLW5160ZZXD3
Chassis brand Dongfeng
Wheeldrive 4x2 LHD
New or Used New
Overall dimension(mm) 6850x2500x2890
Dump box dimension(mm) 4500x2300x800
Gross weight(kg) 15800
Curb weight(kg) 6850
Designed Load 10 tons
Wheelbase(mm) 3950
Engine power Cummins 170HP Euro3
Fuel type DieseI
Transmission Manual 8 speed
Brake Air brake
Axle load(front/rear) 3.8 tons / 9 tons
Tire 6+1 pcs, 10.00-20 nylon tires
Max speed 90km/h
Vehicle Superstructure Parameters
Dump Box Dimension 4500x2300x800mm
Material High strengthen carbon steel, 4mm side, 6mm bottom
Unloading Method of Dump Box Double cylinders middle lifting
Maximum Dumping Angle ≤ 45°
Back Door Hinge structure , auto open when dumping
Side Opening Door One(1)





As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
