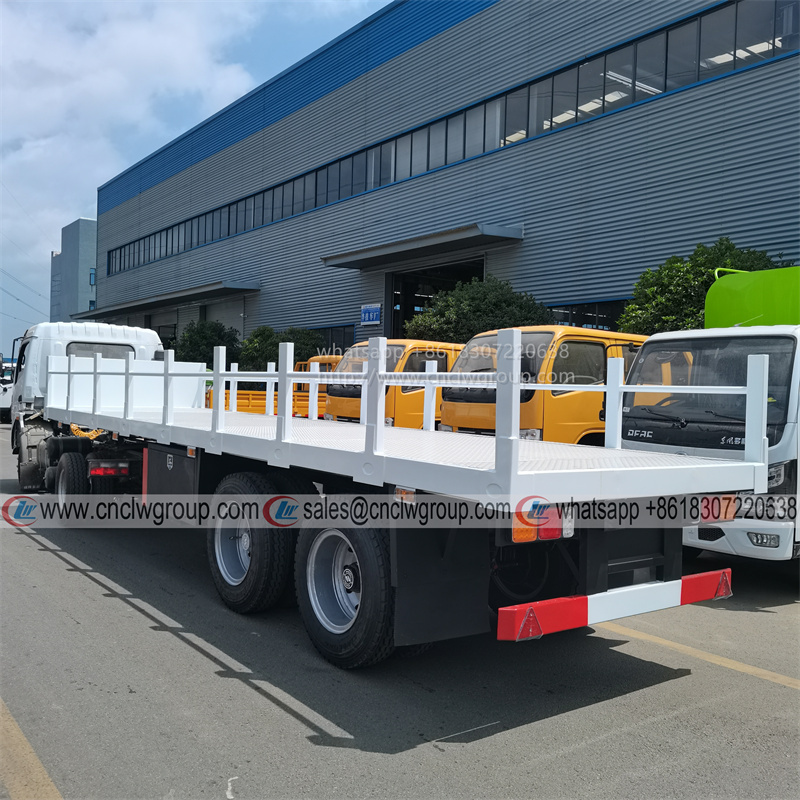

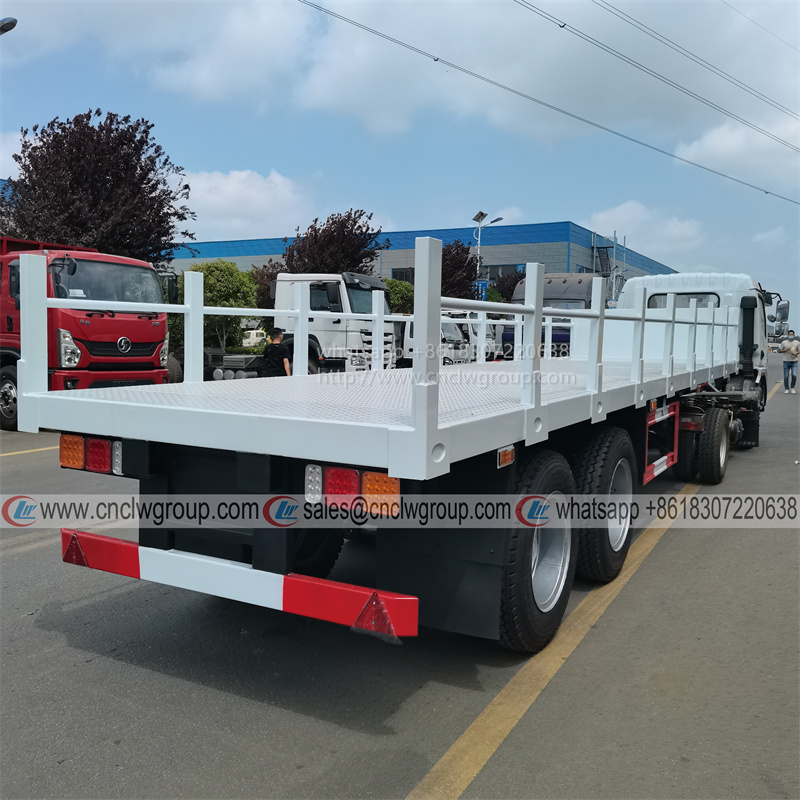

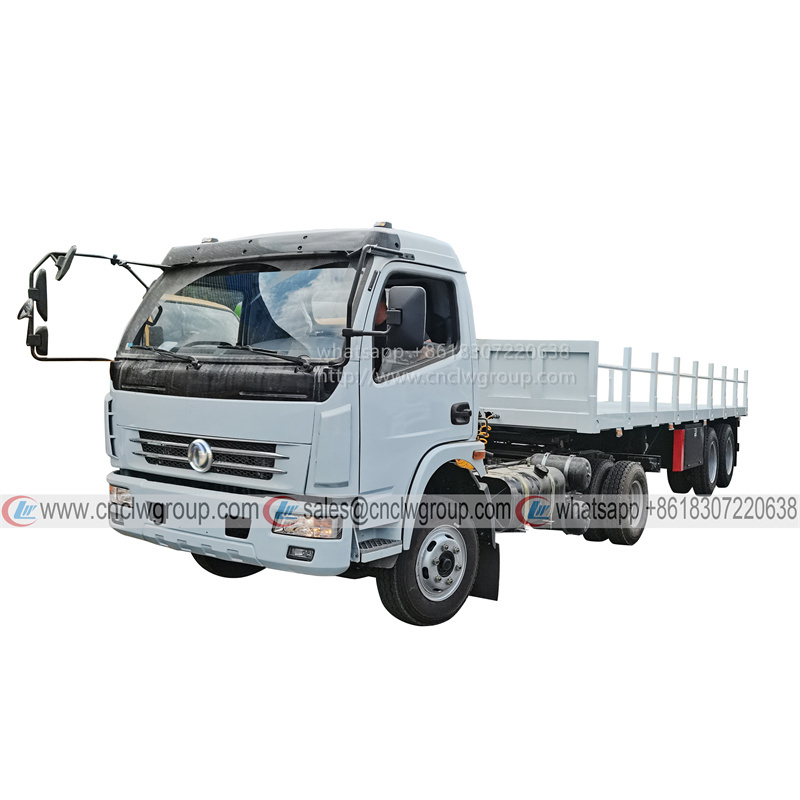

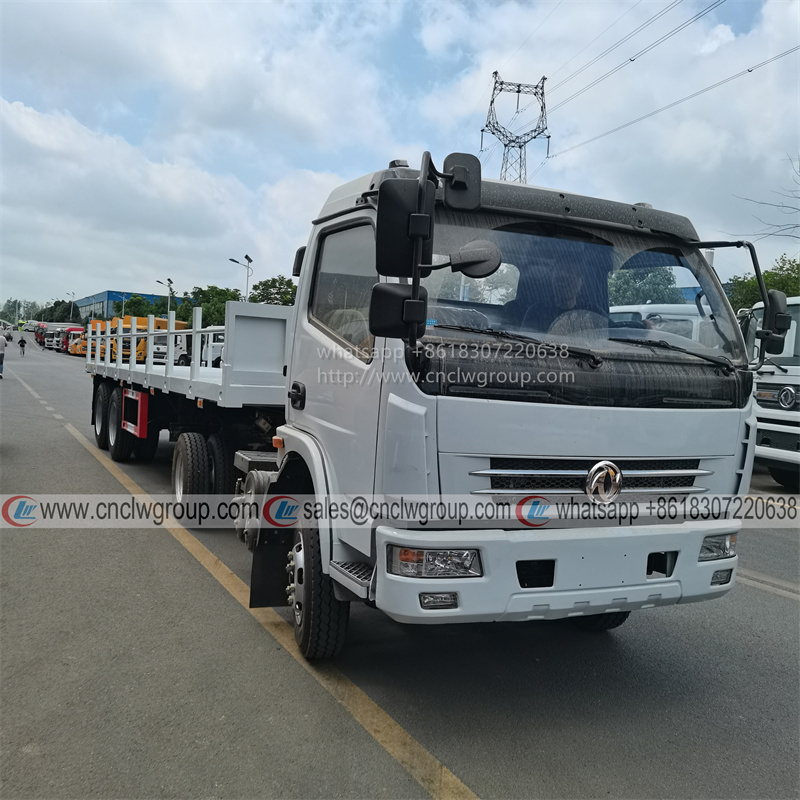

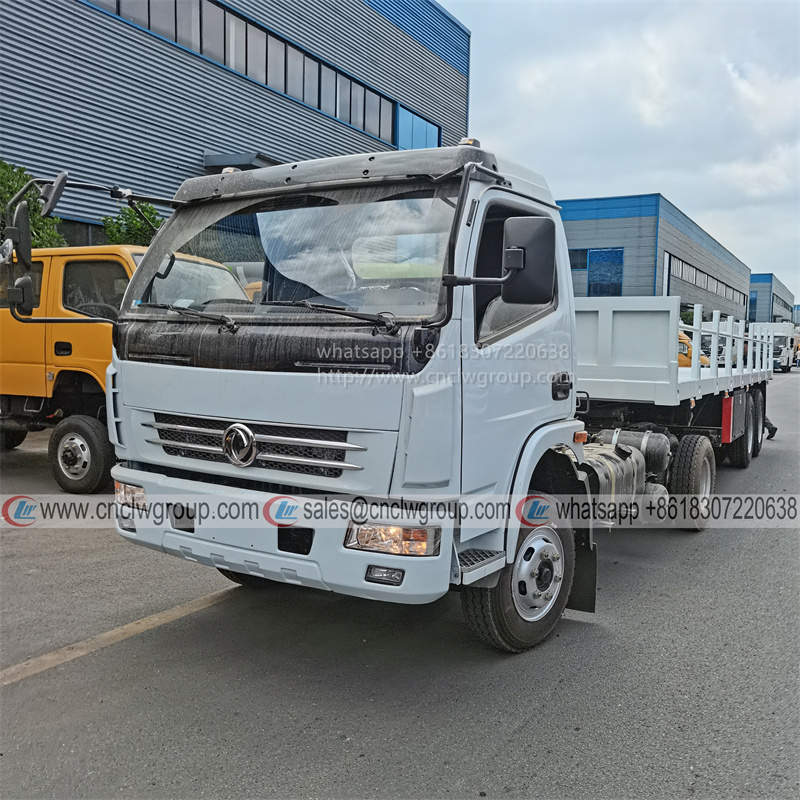

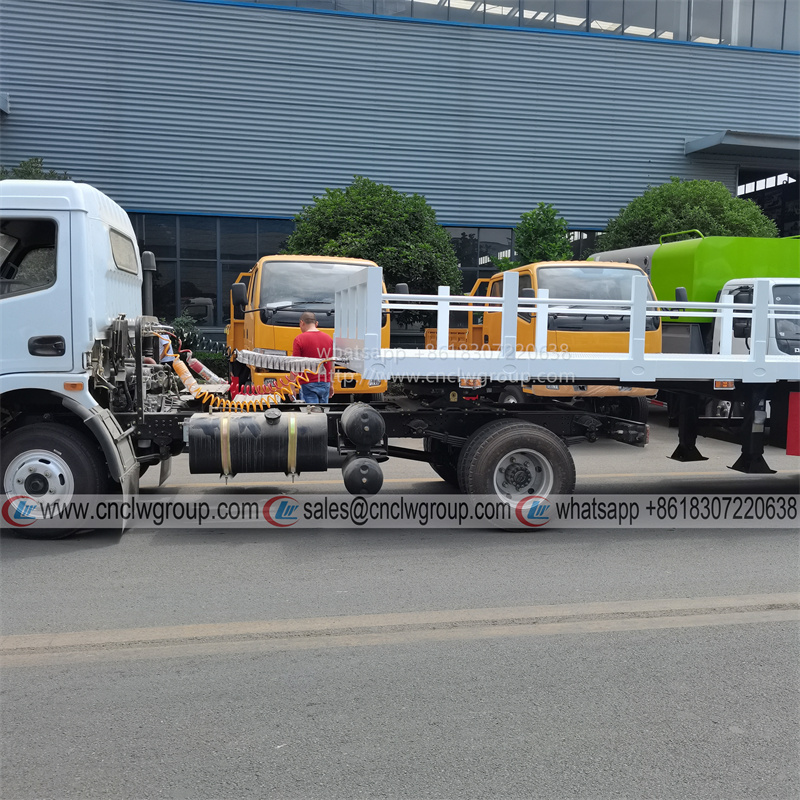

Dongfeng 4x2 small light tractor head with 2 axle 20 ton flatbed cargo semi trailer

Tractor head: Dongfeng 4x2, Cummins 140HP
Flatbed size: 8000x2500mm
Trailer Load: 20 ton
Axle: 2 axles, FUWA 13 Tons
Tire: 8 pcs 8.25R20 tubeless tire
Whatsapp:+8618307220638
Email:[email protected]
Http://www.cnclwgroup.com
Description
Description

【Chassis Parameters】

Dongfeng 4x2 light duty tractor head, EQ3120QYT, 3800mm wheelbase, Cummins B140-33 140HP Euro3 diesel engine, 5-speed transmission, 2.7 ton front axle, 7.2 ton rear axle, 825R20 radial tires, with one spare tire, 50#(2 inch) saddle, power assist steering, air conditioning, etc.

【Supperstructures】

Chengli made 2-axle flatbed cargo semi trailer: 2 axle flatbed cargo semi trailer, 8000x2500mm flatbed, with guardrail on both side, 2 pcs FUWA 13 Tons axle, 8 pcs 8.25R20 tires, 50# kingpin, 28 Tons support outriggers, rear bumper,etc.



【Vehicle Basic Parameters】

Main Dimensions

Overall Size

8150*2500*1800mm

CLW9180TZH 2 axle Flatbed Cargo Trailer

Tare Weight

5800 KGS

Flatbed Body

Shape

Straight through flatbed

Dimension

8000x2500 mm

Material

3mm deck board, under with upper middle down plate, main beam

Guardrail

600mm height

Chassis

Overall dimension

8000x2500x1800mm

Gross weight

25000kg

Curb weight

5600kg

Load

20 tons

Main Beams

Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation;

Axle

2*13 Ton FUWA axle

Landing Gear

FUWA brand Two-speed, manual operating, heavy duty landing gear

King Pin

50# 2” bolt-in king pin

Suspension

Mechanical Spring Plate

Tire

8.25R20 tubeless tire, 8 pieces

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint

Accessories

One standard tool box

Main Specifications
Product Name Semi Trailer Tractor head
Brand Dongfeng
Model EQ3120QYT
Year Current year, condition new
Overall Dimension 6350x2300x2600mm
Gross Weight 11995kg
Curb Weight 3200kg
Rated Weight -
Allowed Towing Weight 20000kg
Saddle 50#(2 inch)
Wheelbase 3800mm
Engine Cummins brand 140HP Euro3
Fuel Type Diesel
Cabin Dongfeng single cabin, 3 seats, with AM/FM radio MP3, with air conditioning
Transmission Manual, 5-speed
Brake Air brake
Steering Power steering
Tire 6+1 pcs, 8.25R20
Speed 95km/h

Dongfeng 4x2 light tractor head + 2 axle flatbed 20 ton cargo semi trailer
Dongfeng 4x2 light tractor head + 2 axle flatbed 20 ton cargo semi trailer
Dongfeng 4x2 light tractor head + 2 axle flatbed 20 ton cargo semi trailer

We can provide different brand tractor head for our company made aluminum alloy fuel tank semi trailer, Dongfeng tractor head, Howo tractor head, SHACMAN tractor head, SAIC IVECO tractor head, FOTON tractor head, ISUZU tractor head, Beiben tractor head, FAW tractor head, etc.
Please directly contact us for its specifications and price!

Chengli Special Automobile Co., Ltd. Has a Complete After-sales Service System

In order to make you always satisfied from purchasing, owning and using products, Chengli Special Automobile Co.,Ltd has a nationwide sales and service network to provide you with a full range of services.

◆Training Service

Jiangnan Company provides free expert training for all customers who purchase our products, and the training does not charge any fees.

◆Warranty Commitment

Customers can enjoy up to one year or 25,000 kilometers, and free replacement of parts (excluding wearing parts) damaged due to quality problems during the warranty period. The chassis part is guaranteed by the original factory at the national secondary service station nationwide, and the modified part is provided by our company with the service tenet of the customer being always right, and the service tenet of "customer care and caring for each car". Respond within 12 hours after receiving the letter for help from customers, and do not exceed 24 hours for door-to-door service in inland provinces and cities, and 48 hours for individual areas. Long-term supply of original accessories and accessories to provide accessories at preferential market prices. Overseas customers guarantee to reply within 24 hours and give guidance plan.

◆24 Hours Service

The service tenet is that the customer is always right, the service tenet is to care about the customer and every car, and make a public commitment to the society. , Shanghai, Guangdong, Zhejiang, Fujian, Hainan), no more than 24 hours in inland provinces and cities, and no more than 48 hours in individual areas.

◆Rescue Service

When the customer's vehicle cannot be repaired at the service station due to special reasons, the service station can provide on-site service of vehicles, personnel and accessories to solve the customer's difficulties to the greatest extent and reduce the customer's concerns about using the car.

◆Customer Return Visit

Chengli Special Automobile Co.,Ltd. implements the three-level return visit service of dealers, service stations and return visit consultants, caring about customers, helping customers understand and familiarizing themselves with cars, helping customers to actively digest potential hidden dangers in advance, and improving the effective service life of products. To ensure the interests of customers.

Order Process

     ①: Car purchase negotiation: Contact the vehicle model information parameters by telephone or on-site inspection to discuss the vehicle model, Beiqi Foton remote water supply forest fire truck price and related requirements.

     ②: Signing the contract: Both parties sign the vehicle purchase and sale contract and pay the contract deposit in advance (fax signing of the contract or on-site signing of the contract is acceptable).

     ③: Arrange production: Our company arranges workshop production according to the contract requirements.

     ④: Delivery of the vehicle: The vehicle is delivered and accepted, the balance of the vehicle is paid, and the relevant procedures are completed. For more detailed car booking process, please inquire!

Answers to the Questions that Customers Care About before Purchasing?

(1) Free maintenance plan and period?

1. Tracking service time: lifetime; 2. From the date of delivery to the customer, within the normal range of use, within 20,000 kilometers or within one year of free repair (excluding wearing parts and electrical parts), more than one year, only charge Parts fee; 3. Service arrival time: within the province, arrive within 24 hours; other areas, dispatch personnel within 24 hours; 4. During the annual flood control period, engineers and technicians are scheduled to visit regularly or irregularly to ensure timely failures Excluded, no fault active prevention.

(2) What is the price method of free post-parts supply?

1. Method: unified supply at the local Dongfeng/Jinan Heavy Duty Truck/Isuzu and other chassis technical service stations, according to user requirements or directly delivered by Chengli Special Automobile Factory; 2. Parts are only charged for the cost of production, and no other fees are added.

(3) After-sales service method?

The maintenance of the chassis part can be solved at the service station near the user's place of use. The maintenance of the special device can be done by telephone or fax. The supplier will send professional maintenance personnel to the place of use 24-28 hours after receiving the call from the user.

(4) Technical training program?

The supplier is responsible for free training of equipment users at the user's location before delivering the vehicle to the user, mainly on how to operate the hydraulic system and special devices for the driver to be familiar with the basic principles of this type of vehicle and the ability to deal with general failures.

(5) How to transport and load the vehicle?

According to the dimensions and weight of the vehicle or cargo, you can choose bulk carriers, ro-ro ships, container ships 20GP, 40GP, 40HQ, 40FR, etc.
