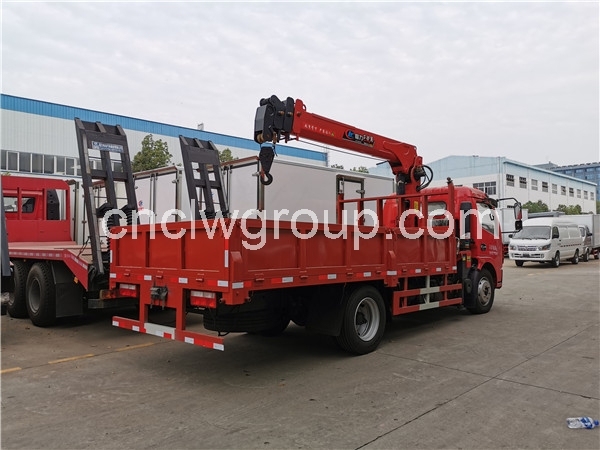

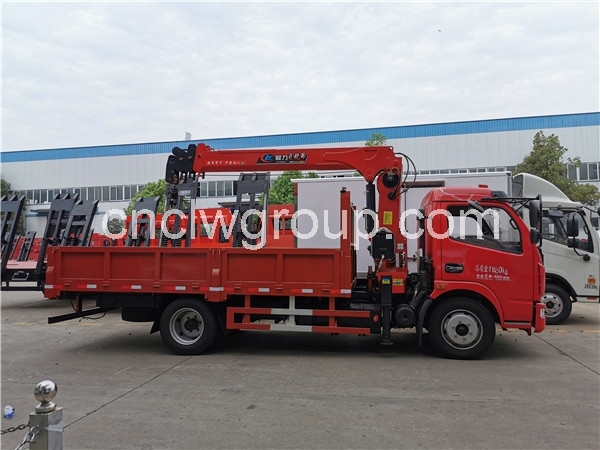

Dongfeng 4x2 Truck mounted 5 Ton Crane

Dongfeng 4x2 Yuchai 140HP Euro3 truck
Tir: 6+1 pcs 8.25R20 radial tire
Cargo box: 4300x2200x400mm
Crane Max Lifting Weight: 5 tons crane
Crane type: telescopic straight arm, 4 section
Max lifting height: 13 meters

【Chassis Parameters】

Dongfeng 4x2 chassis, condition new, 3800mm wheelbase, Yuchai 140HP Euro3 dieseI engine, 5-speed transmission, 8.25R20 radial tires, with one spare tire, 2.7 ton front axle, 7.2 ton rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

CLW SQ5SA3 5 Tons crane, 4-section straight extension arm, maximum lifting height 13 meters, maximum working radius 11 meters, 360° slewing, double side operation, with remote throttle, lighting, leveling bubbles, etc.

Cargo box type: excavator carrier flatbed type, 4300x2200mm, with 400mm height detachable side wall, with 2 pcs spring ladders at rear.


【Vehicle Basic Parameters】

Model CLW5090JSQD3
Chassis brand Dongfeng
Wheeldrive 4x2, LHD
New or Used New
Overall dimension 7000x2350x3450mm
Cargo box 4200x2200x400mm
Gross weight 11495kg
Curb weight 5800kg
Load 5-7 tons
Wheelbase 3800mm
Engine power Yuchai 140HP
Fuel type DieseI
Transmission 5-speed
Brake air brake
Axle load 2.7 tons / 7.2 tons
Tire 6+1 pcs, 8.25R20 radial tires
Max speed 90km/h


【Crane Parameters】

Model SQ5SA3
Brand CLW
New or Used New
Max lifting weight 5 tons
Max torque 125 kN.m
Max lifting height 13m
Max working radius 11m
Slewing angle 360 degree continuous slewing
Outrigger span 1800mm ~ 2800mm
Outrigger Front hydraulic extension outrigger
Control Double side linkage operation
Special Remote throttle, lighting, leveling bubble, etc


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
