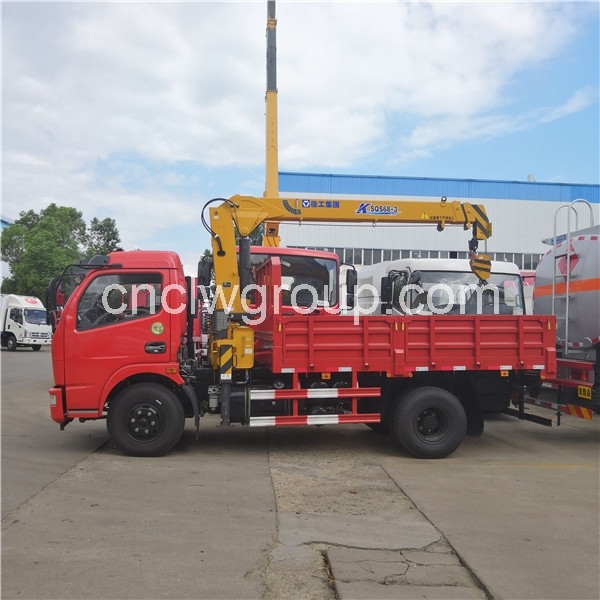

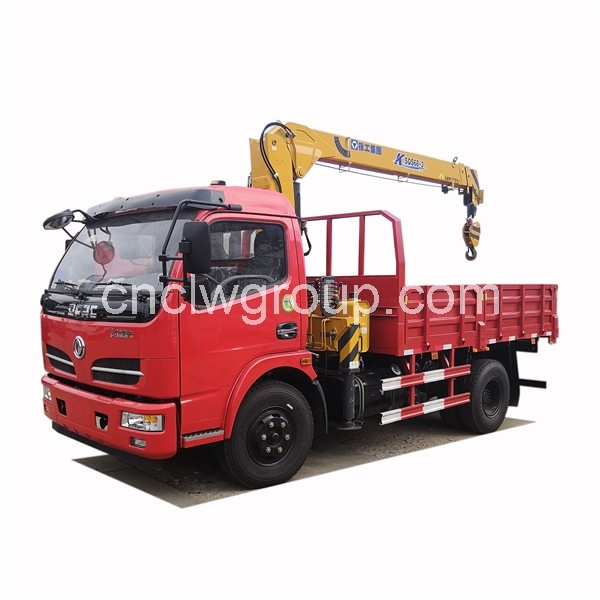

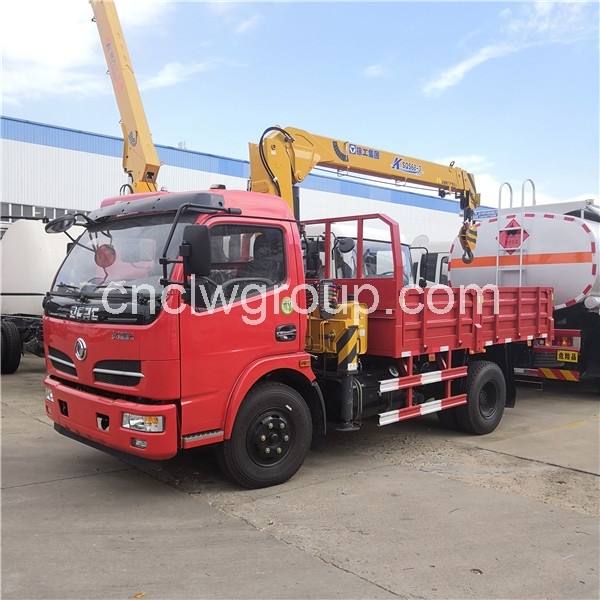

Dongfeng 4x2 Truck mounted XCMG 3.2 Ton Crane

Dongfeng 4x2 Yunnei 90HP Euro3 truck
Tir: 6+1 pcs 7.00R16 radial tire
Flatbed size: 3600x2000x400mm
Crane Max Lifting Weight: XCMG 3.2 tons crane
Crane type: telescopic straight arm, 3 section
Max lifting height: 10 meters

【Chassis Parameters】

Dongfeng 4x2 chassis, condition new, 3300mm wheelbase, Yunnei 90HP Euro3 dieseI engine, 5-speed transmission, 7.00R16 radial tires, with one spare tire, 2 ton front axle, 4 ton rear axle, air brake, power assist steering, etc.


【Upper Structure Parameters】

XCMG SQS68-3 3.2 tons crane, 3-section straight extension arm, maximum lifting height 10 meters, maximum working radius 7.6 meters, 360° slewing, double side operation, with remote throttle, lighting, leveling bubbles, etc.

Cargo box : 3600x2000x400mm, carbon steel, 2mm side, 3mm floor;


【Vehicle Basic Parameters】

Model CLW5070JSQD3
Chassis brand Dongfeng
Wheeldrive 4x2, LHD
New or Used New
Overall dimension 5995x2150x2980mm
Cargo box 3600x2000x400mm
Gross weight 7360kg
Curb weight 3600kg
Load 3-4 tons
Wheelbase 3300mm
Engine power Yunnei 90HP Euro3
Fuel type DieseI
Transmission 5-speed
Brake air brake
Axle load 2 tons / 4 tons
Tire 6+1 pcs, 7.00R16 radial tires
Max speed 90km/h


【Crane Parameters】

Model SQS68-3
Brand XCMG
New or Used New
Max lifting weight 3.2 tons
Max torque 68 kN.m
Max lifting height 10m
Max working radius 7.6m
Slewing angle 360 degree continuous slewing
Outrigger Front hydraulic extension outrigger
Control Double side linkage operation
Special Remote throttle, lighting, leveling bubble, etc


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
