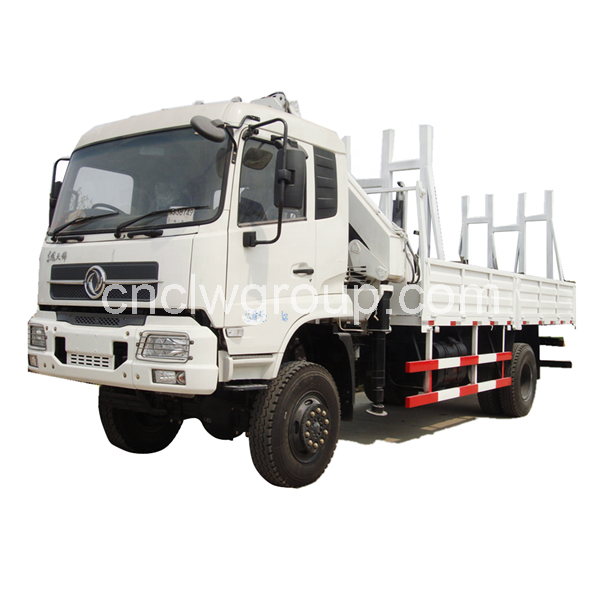

Dongfeng 4x4 5-tons Boom Truck with Electric Pole Carrier

Dongfeng 4x4 190HP Euro3 truck
Gross weight: 16000kg
Load: 10-15 tons
Tir: 10+1 pcs 10.00-20 nylon tire
Crane capacity: 5 tons crane
Crane type: articulated arm or knuckle arm, 4 section arm
Max lifting height: 12.8m
Electric Pole Carrier: carry 3~
Description
Description

【Chassis Parameters】

Dongfeng KingRun 4x4 Off-Road chassis, condition new, 5000mm wheelbase, Cummins 190HP Euro3 dieseI engine, 8-speed transmission, 10.00-20 nylon tires, with one spare tire, 5 ton front axle, 10 ton rear axle, air brake, power assist steering, etc.



【Upper Structure Parameters】

  • Cargo box: 5600x2300x500mm
  • Crane brand: CLW SQ5ZA3 5 tons crane
  • Crane type: articulated arm or knuckle arm, 4-section extension boom
  • Max lifting height: 12.8m
  • Max working radiu: 10m



【Vehicle Basic Parameters】

Model CLW5150JSQD32
Chassis brand Dongfeng
Wheeldrive 4x4, RHD
New or Used New
Overall dimension 9000x2500x3650mm
Cargo box 5600x2300x500mm
Gross weight 18000kg
Curb weight 8600kg
Load 10-15 tons
Wheelbase 5000mm
Engine power Cummins 190HP, 210HP options
Fuel type DieseI
Transmission 8-speed
Brake air brake
Axle load 5/10 tons
Tire 10+1 pcs, 10.00-20
Max speed 90km/h

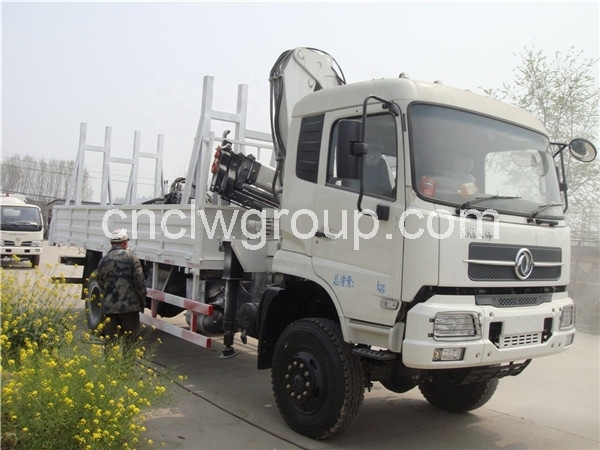

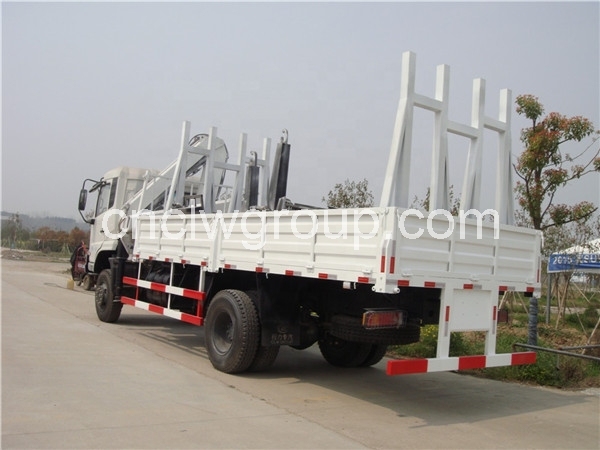

【Multi-directional Pictures】

【Crane Parameters】

Model SQ5ZA3
Brand CLW
New or Used New
Max lifting weight 5 tons
Max torque 125 kN.m
Max lifting height 12.8m
Max working radius 10m
Slewing angle 360 degree
Outrigger Front hydraulic extension outrigger
Control Double side linkage operation
Special Remote throttle, leveling bubble, etc



【SQ5ZA3 5 Tons Crane Lifting Capacity Graph】



As model changes or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
