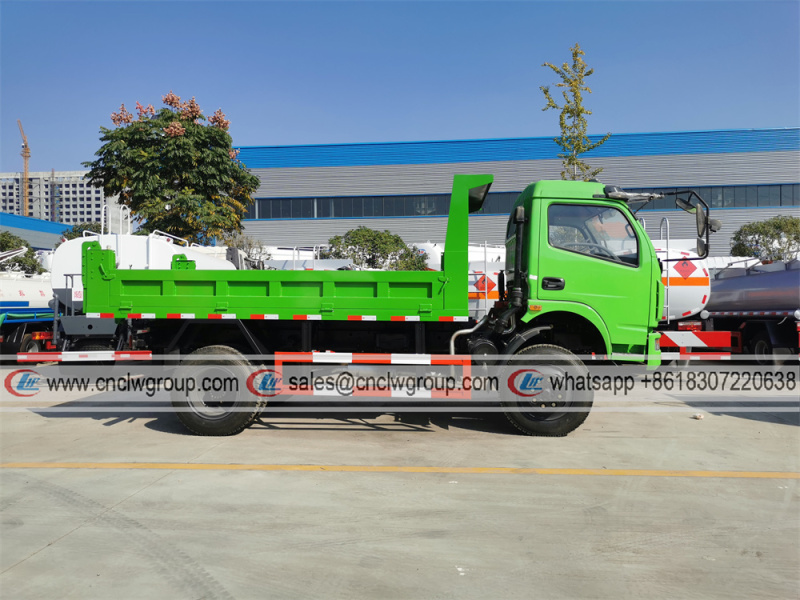

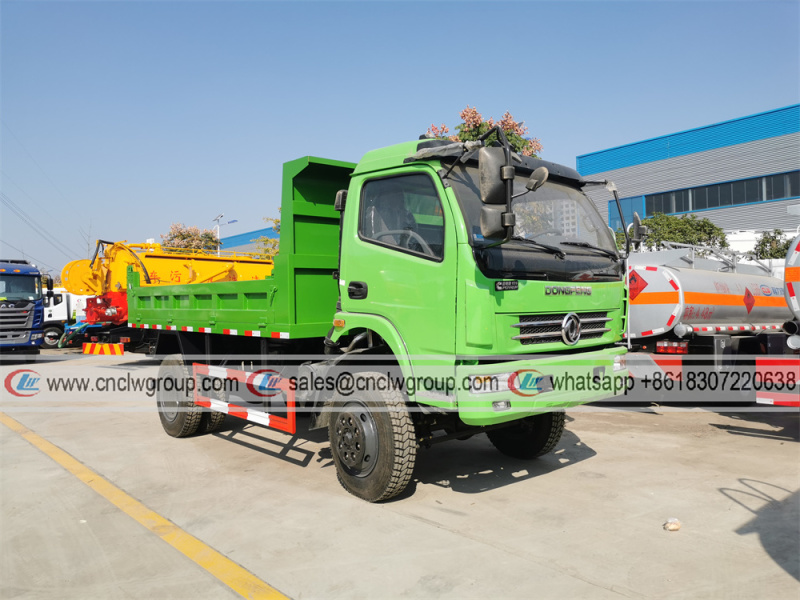

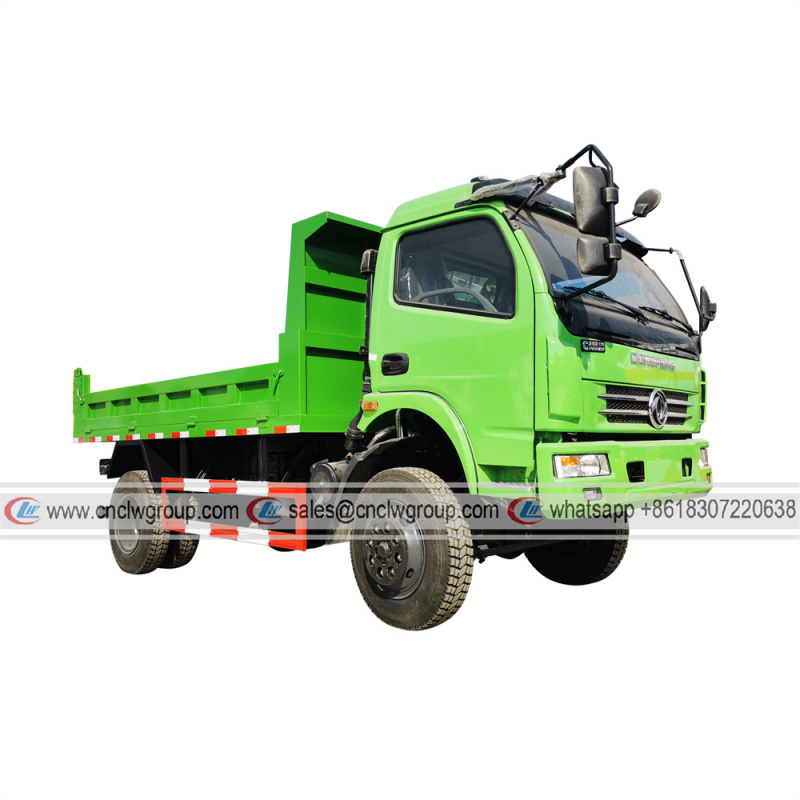

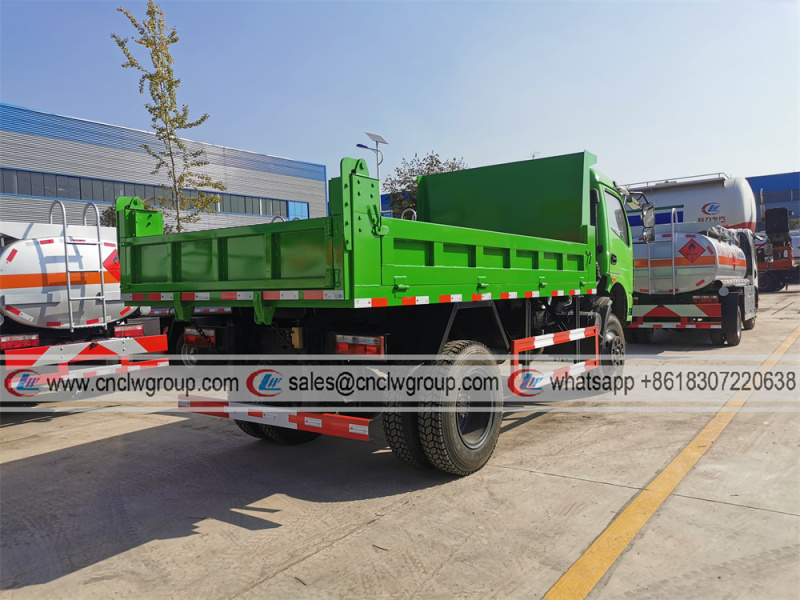

Dongfeng 4x4 AWD Dump Garbage Truck

Dongfeng 4x4 AWD Dump Garbage Truck
Engine: Cummins 125HP Euro3
Tir: 6+1 pcs 8.25R16 radial tire
Load Capacity: 5 tons
Dump Box: 3800x2000x400mm
Rear dumping: middle double hydraulic cylinders

【Chassis Parameters】

Dongfeng 4x4 AWD chassis, single cabin, condition new, 3600mm wheelbase, Cummins 125HP Euro3 diesel engine, manual 5-speed transmission, 8.25R16 radial tires, with one spare tire, 2.5 ton front axle, 5.5 ton rear axle, air brake, power assist steering, exhaust pipe front mounted, etc.


【Upper Structure Parameters】

Dump box size 3800x2000x400mm;  dump box material 3mm side wall, 4mm floor plate; dump box middle double cylinder lifting jack, dumping angle 45°; control inside cabin, can lift box, down box, stop box.


Vehicle Basic Specifications
Model CLW5080ZZXD3
Chassis brand Dongfeng
Wheeldrive 4x4
New or Used New
Overall dimension(mm) 6250x2250x2680
Dump box dimension(mm) 3800x2000x400
Gross weight(kg) 9850
Curb weight(kg) 4500
Load Weight(kg) 5 tons
Wheelbase(mm) 3600
Engine power Cummins 125HP Euro3
Fuel type DieseI
Transmission Manual 5- speed
Brake Air brake
Axle load(front/rear) 2.5 tons / 5.5 tons
Tire 6+1 pcs, 8.25R16 radial tires
Max speed 90km/h
Vehicle Superstructure Parameters
Dump Box Dimension 3800x2000x400mm
Material High strengthen carbon steel, 3mm side, 4mm bottom
Unloading Method of Dump Box Double cylinders middle lifting
Maximum Dumping Angle ≤ 45°
Back Door Hinge structure , auto open when dumping
Side Opening Door One(1)


As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
