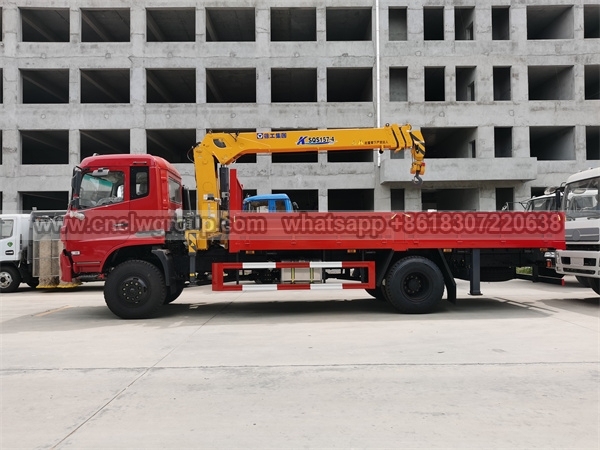

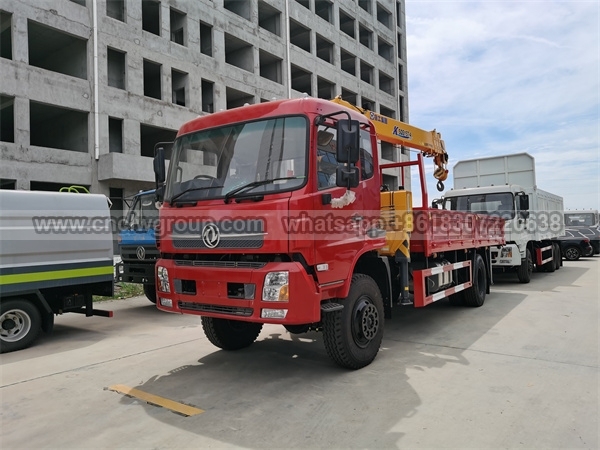

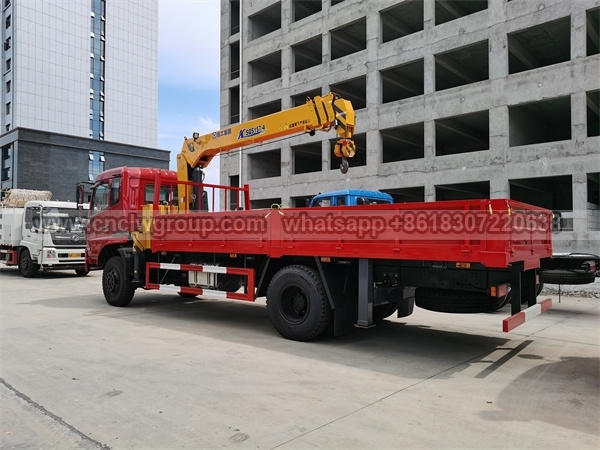

【Chassis Parameters of Dongfeng 4x4 Truck Mounted Crane】
Chassis specs of of Dongfeng 4x4 Truck Mounted Crane: Dongfeng KingRun 4X4 AWD chassis, condition new, 5000mm wheelbase, Cummins 190HP Euro3 dieseI engine, FAST 8-speed transmission, 10.00R20 radial tires, with one spare tire, 5 ton front axle, 10 ton rear axle, air brake, power assist steering, etc.
【Upper Structure Parameters of Dongfeng 4x4 Truck Mounted Crane】
Crane specs of of Dongfeng 4x4 Truck Mounted Crane: XCMG SQS157-4 tons crane, 3-section straight extension arm, maximum lifting height 12.8 meters, maximum working radius 11.2 meters, 360° slewing, double side operation, with remote throttle, lighting, leveling bubbles, etc.
Cargo box type: side wall fence cargo box, 5600x2300x550mm, 3mm side, 4mm bottom plate.
【Vehicle Basic Parameters of Dongfeng 4x4 Truck Mounted Crane】
| Model | CLW5160JSQD3 |
| Chassis brand | Dongfeng |
| Wheeldrive | 4x4, RHD |
| New or Used | New |
| Overall dimension | 9000x2500x3750mm |
| Cargo box | 5600x2300x550mm |
| Gross weight | 16000kg |
| Curb weight | 9200kg |
| Load | 6800kg |
| Wheelbase | 5000mm |
| Engine power | Cummins B190-33 190HP Euro3 |
| Fuel type | DieseI |
| Transmission | manual, FAST 8-speed |
| Brake | air brake |
| Axle load | 5 tons / 10 tons |
| Tire | 6+1 pcs, 10.00R20 radial tires |
| Max speed | 90km/h |
【Crane Parameters of Dongfeng 4x4 Truck Mounted Crane】
| Model | SQS157-4 |
| Brand | XCMG |
| New or Used | New |
| Max lifting weight | 6.3 tons |
| Max torque | 157 kN.m |
| Max lifting height | 12.8m |
| Max working radius | 11.2m |
| Recommand oil pressure | 20MPa |
| Slewing angle | 360 degree continuous slewing |
| Outrigger span | 2280mm ~ 5300mm |
| Outrigger | Front hydraulic extension outrigger |
| Control | Double side linkage operation |
| Special | Remote throttle, lighting, leveling bubble, etc |
For more details of Dongfeng 4x4 Truck Mounted Crane, you can directly contact us for instant communication together, we will help you.
