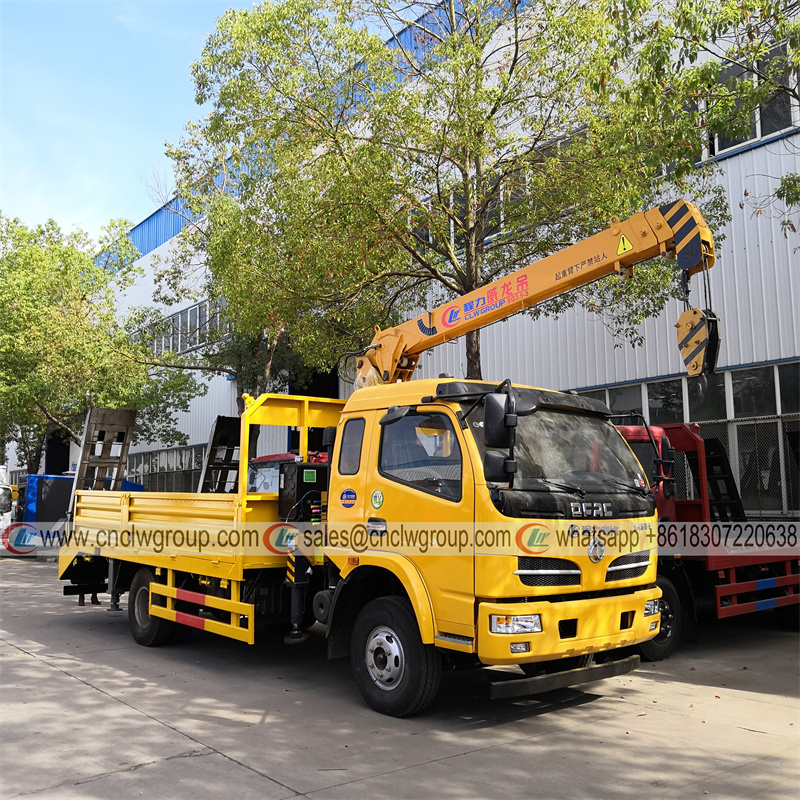

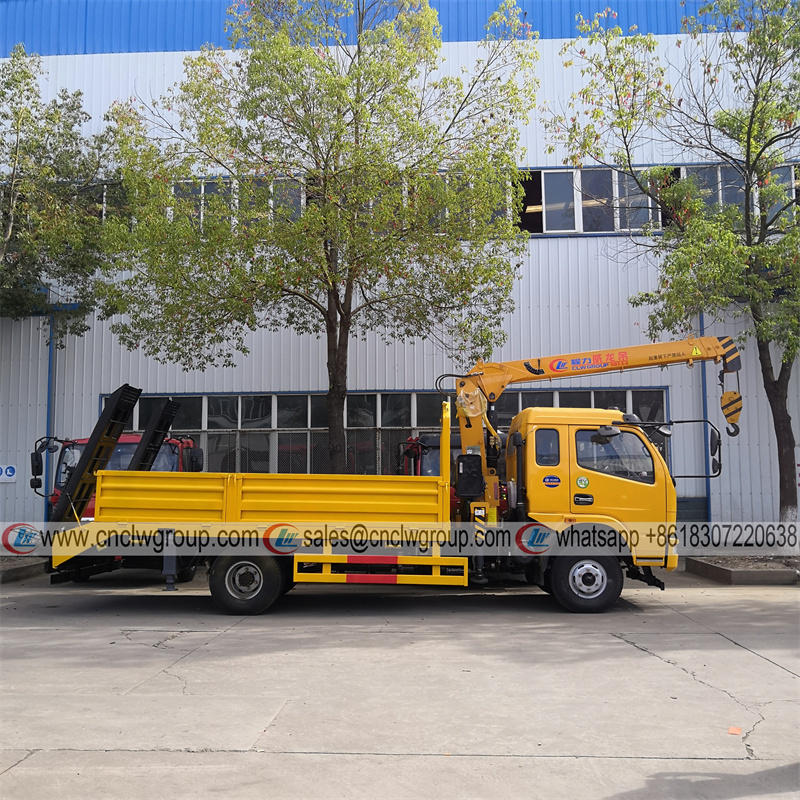

Dongfeng 5 tons flatbed truck with 3.2 ton crane

- Dongfeng 129HP Euro2 Diesel engine chassis
- Flat bed dimension: 4300x2100mm, with 400mm dropside wall
- Crane: SQ3.5-3,  3.5 ton lifting weight
- Spring ladder: Mechanical ladder bridge
- Can be used as a flat bed truck, a crane truck and cargo tru
Description
Description

【Chassis Parameters】

Dongfeng 5 tons flatbed truck with crane adapts Dongfeng special chassis, condition new, 3 seats, 3800mm wheelbase, Yudong 129HP dieseI engine, manual 5-speed transmission, 8.25R16 radial tires, with one spare tire, 2.5 ton front axle, 5.5 ton rear axle, air brake, power assist steering, etc.

【Upper Structure Parameters】

Dongfeng 5 tons flatbed truck with crane, with a special excavator loading deck board, 4mm deck plate, under with 80x80mm square tube, with two pcs mechanical spring ladder bridges;  and installed dropside wall at both side, so it can be used as a cargo truck;  installed with a SQ3.5-3, 3.5 tons telescopic crane, max lift weight 3.5 tons, max lifting height, 8.6 meters, maximum working radius 5.75 meters.

can choose with hydraulic lift outriggers leg installed behind cabin, 2 x 6 tons, 12 tons lift capacity, which can be used to lift the flatbed truck to make a ramp of the flat deck bed, for a easy climb or loading onboard for excavators or cars or machines. It is mainly used for carrying excavator, bulldozer, loaders, road rollers, large agricultural machinery, etc. Traditional flatbed truck with two pcs ladders for climbing up, but is very dangerous and for some crawler-type or large machinery is prone to rollover due to the corners of the platform and ladder when getting on the vehicle. Chengli CLW produced self loading flatbed truck, installed a heavy lifting front outrigger at front of flatbed, behind cabin,  it can lifting the truck to give the flat deck plate a tilt angle, so that any truck or machinery can easily climb onto the flat bed,  and on the front of the deck bed, can install hydraulic winch, 5 tons, 8 tons, 10 tons, 20 tons to pull up fault vehicles or machines.



Model CLW5090TPBD3
Chassis brand Dongfeng
New or Used New
Overall dimension(mm) 7400x2300x3250
Flatbed dimension(mm) 4300x2500x400
Crane capacity SQ3.5-3,  3.5 tons telescopic crane
Gross weight 9850kg
Curb weight 5200kg
Load 5 tons
Wheelbase(mm) 3800
Engine power YUDONGFENG 129HP Euro2 engine
Fuel type DieseI
Transmission Manual 5 - speed
Brake Full air brake
Axle load 3500/5500(kg)
Tire 6+1 pcs, 8.25R16 tires
Max speed 90km/h
Superstructure

- Dimension:4300x2300x400mm

- Material: 4mm deck plate, under supported with 80x80mm square tube made frame

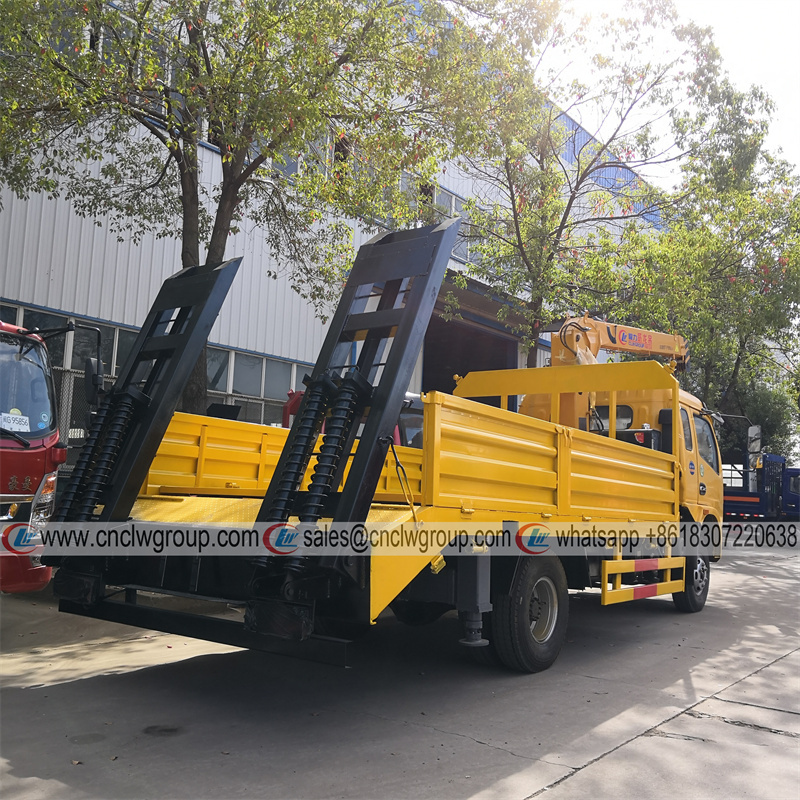

- Rear ladder: 2 pcs mechanical spring ladders(can choose hydraulic ladders)

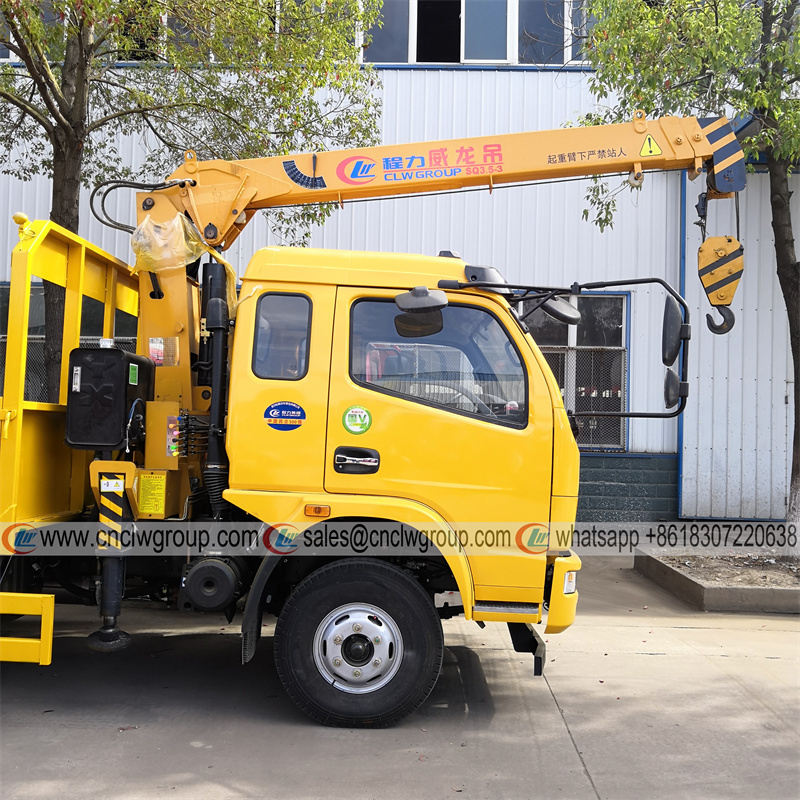

- Crane: SQ3.5-3,  3.5 tons lifting weight, maximum lifting height 8.6 meters, maximum working radius 5.75 meters.



[Multi-directional Images]

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
