Dongfeng 5000 liter Water Sprinkler Water Tank Bowser Lorry Truck

- Dongfeng 4x2 5,000 liter water sprinkler truck
- 90HP or 120HP Euro 2 engine
- 6+1 pcs 7.00R16 radial tire
- 5,000 liter carbon steel tank body
- With water pump,front/rear sprinkler nozzles
- Spray range: 12~16 meters
Description
Description

Water Sprinkler Truck, also called water truck, sprinkler truck, water bowser, water tank truck, water delivery truck, is a kind of sanitation vehicle which has a tank body, manhole cover, water pump, front/rear/side sprinkler nozzles, water cannon and discharge valves, work platform, etc.  Water truck can be used for watering tree, grass, cleaning street, dust control, water delivery, emergency fire fighting, etc.



【Chassis Parameters】

Cab chassis of Dongfeng 5000 liter water sprinkler truck water tank lorry, condition new, 3 seats, 3300mm wheelbase, 90HP Euro 2 dieseI engine, manual 5-speed transmission, 6+1 pcs 7.00R16 radial tires, with one spare tire, 2.2 ton front axle, 3.5 ton rear axle, air brake, power assist steering, etc.



【Upper Structure Parameters】

Superstructure of Dongfeng 5000 liter water sprinkler truck water tank lorry

- Chengli produced water tank & spraying system, multi functional for water delivery, water sprinkling, emergency fire fighting, spray water dust suppression, etc;

- 5,000 liter carbon steel tank, inside with anti-corrosion treatment, with one DN460mm manhole, rear with a platform and ladder;

- with 40m3/h flow water pump;

- with front/rear/side water spraying nozzles, water spraying range 12-16 meters; with a water cannon, spraying range 28 meters;

Specifications of Dongfeng 5000 liter water sprinkler truck water tank lorry:

Product Model CLW5070GSSD3 water sprinkler truck
New or Used New
Overall dimension 5995x2100x2550mm
Gross weight 7360kg
Curb weight 3650kg
Chassis Parameters Chassis brand
Wheelbase 3300mm
Engine power 90HP or 120HP diesel optional
Cab Flat roof, 3 seats, air conditioning(optional)
Transmission Manual, 5-speed forward and 1 reversinf
Front Axle 2.2 ton
Rear Axle 3.5 ton
Brake  Air brake,
Tire 6+1 pcs, 7.00R16 14LT radial tire
Max speed 90km/h
Engine  Yunnei or Yuchai
Power 90HP
Displacement 3707cc
Emission standard Euro 2
Tank volume 5000 liter
Tank material Carbon steel with anti-corrosion treatment
Front spraying 2 pcs nozzles, manual or auto controlled
Rear spraying 2 pcs nozzles, manual or auto controlled
Side spraying 2 pcs nozzles, manual or auto controlled
Water cannon 1 pcs, 360° slewing, shot 28-35 meters
Shot of spraying nozzle 12 - 16 meters
Valve 2 pcs, discharge valve + fire hydrant joint

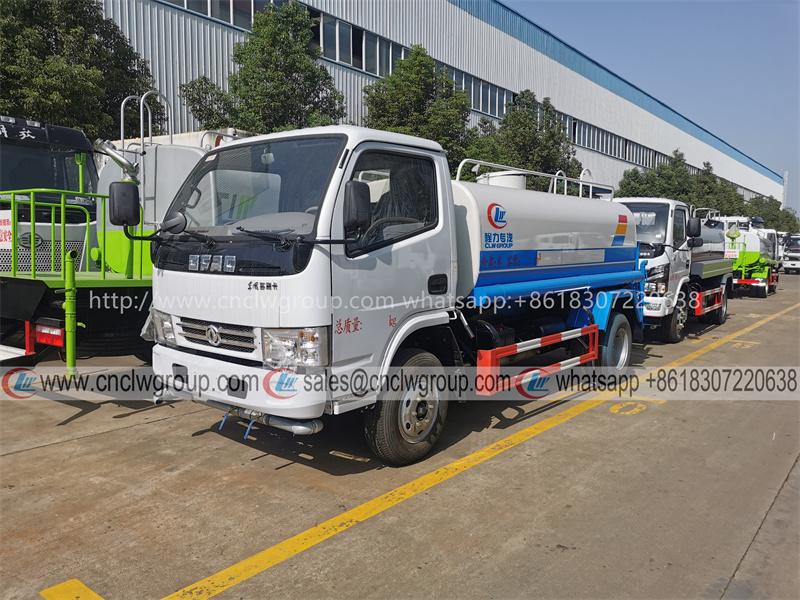

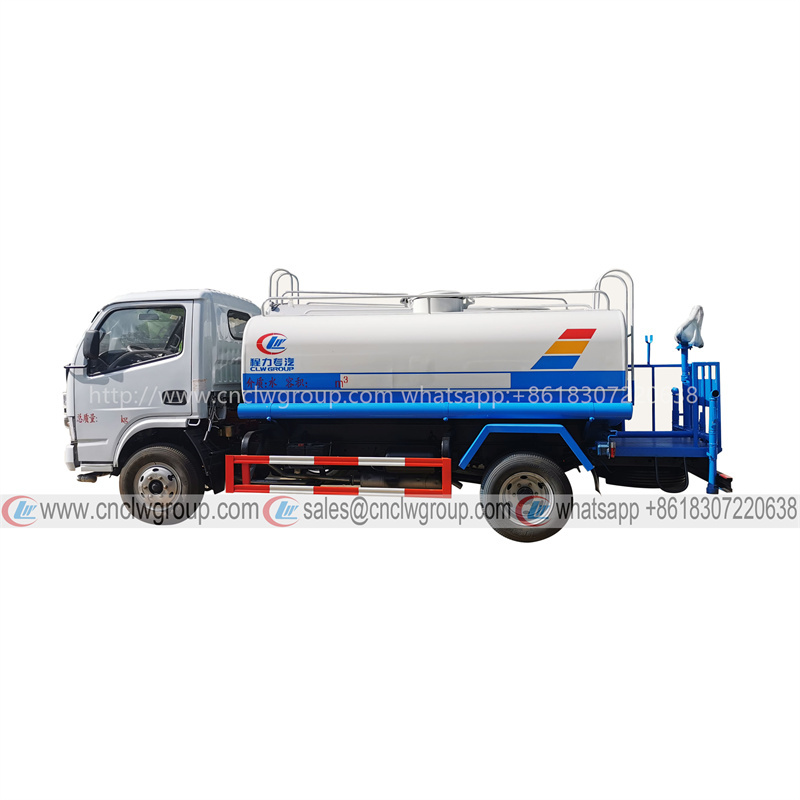

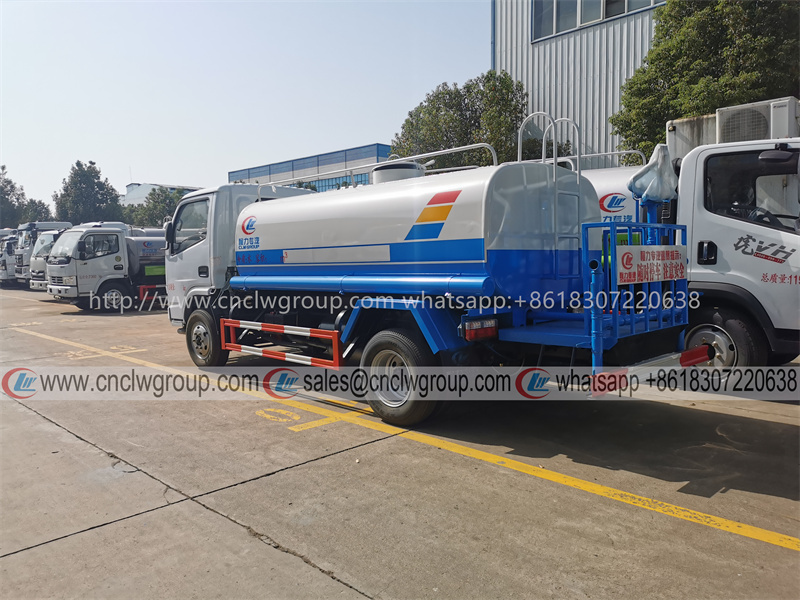

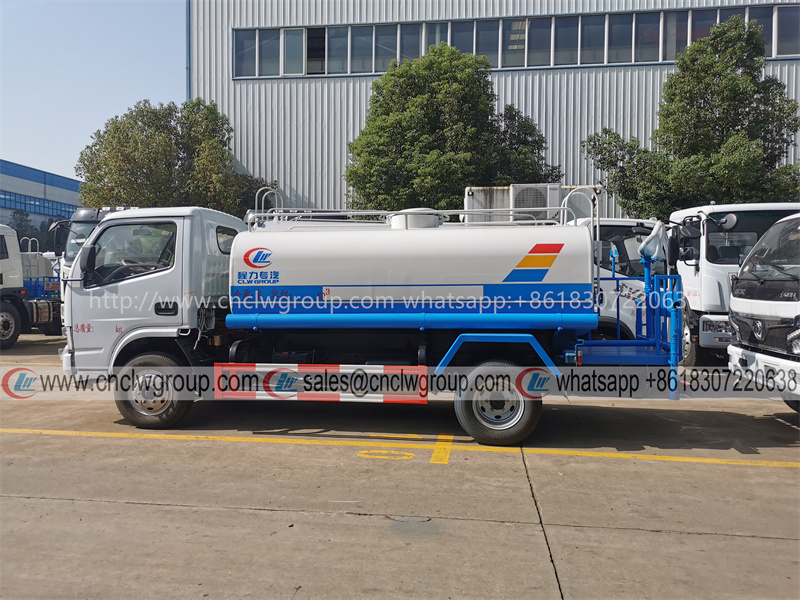

[Multi-directional Images of Dongfeng 5000 liter Water Sprinkler Truck]

Dongfeng 5000 liter water sprinkler truck water tank lorry

Dongfeng 5000 liter water sprinkler truck water tank lorry

Dongfeng 5000 liter water sprinkler truck water tank lorry

Description of Dongfeng 5000 liter water sprinkler truck water tank lorry

Structures of Dongfeng 5000 liter water sprinkler truck water tank lorry:

Manufacture progress of Dongfeng 5000 liter water sprinkler truck water tank lorry:

Packing and shipping method of Dongfeng 5000 liter water sprinkler truck water tank lorry:

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
