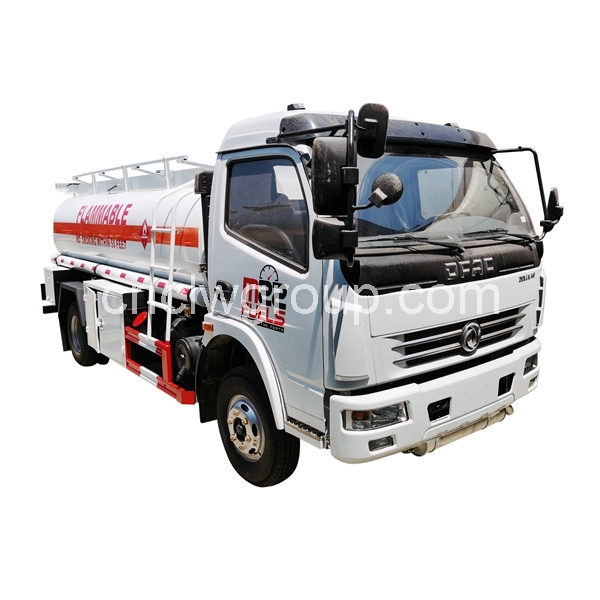

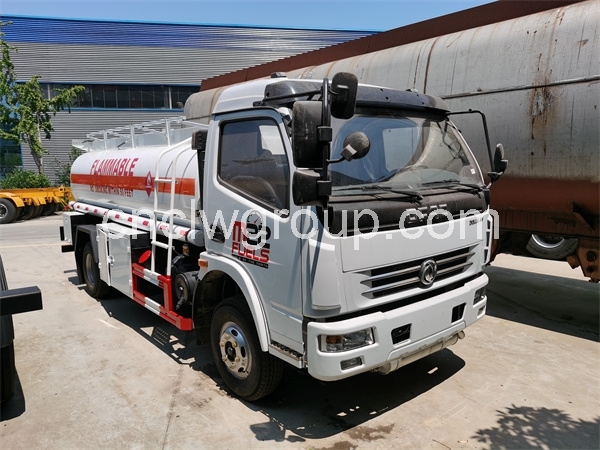

Dongfeng 6,000 liter Refuel Truck

Dongfeng 4x2 6,000 liter Refuel Truck
Engine: 120HP Euro3
Tir: 6+1 pcs 7.50R16 radial tire
Division compartment: 2 compartments (3m3+3m3)
Pump: 40/45 fuel pump
Valve: 2 pcs DN50 API fast discharge valves
Manhole: 2 pcs Euro standard manhole
Description
Description

【Chassis Parameters】

Dongfeng 4x2 chassis, condition new, 3800mm wheelbase, Yuchai 120HP Euro3 dieseI engine, 5-speed transmission, 7.50R16 radial tires, with one spare tire, 2.5 ton front axle, 5.5 ton rear axle, air brake, power assist steering, exhaust pipe front mounted, etc.



【Upper Structure Parameters】

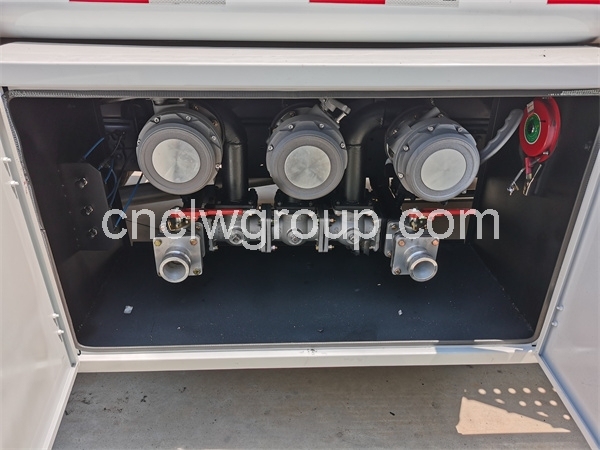

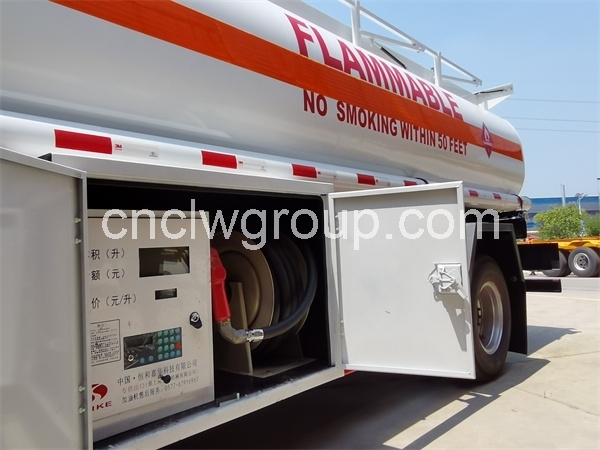

CLW5090GYYBJ3 Dongfeng 6,000 liter refuel truck, carbon steel tank body, with 2 pcs division sub-compartments(3,000 liter+3,000 liter), with 2 pcs manhole covers, 2 pcs API fast discharge valves, 2 pcs gravity discharge ports, with 2 pcs safety valve foot valves, with 40/45 fue pump, pump-inlet and pump-outlet function; with 2 pcs fuel hose, 2 pcs hose box, valve box, tool box, ladder, top anti-skid walkway, top protective fence, rear bumper, fire extinguishers, dangerous warning stickers, reflective stickers, etc.



【Vehicle Basic Parameters】

Model CLW5090GJYD3
Chassis brand Dongfeng
Wheeldrive 4x2, LHD
New or Used New
Overall dimension 6995x2250x2800mm
Gross weight 9850kg
Curb weight 4850kg
Load 5 tons
Wheelbase 3800mm
Engine power Yuchai 120HP Euro3
Fuel type DieseI
Transmission 5 speed gearbox
Brake Air brake
Axle load 2.5/5.5 tons
Tire 6+1 pcs, 7.50R16
Max speed 90km/h

Superstructure:

6000 liter tank body, 4mm carbon steel, with 2 pcs division sub-compartments(3,000 liter+3,000 liter), with 2 pcs manhole covers, 2 pcs API fast discharge valves, with 2 pcs safety valve foot valves, with 40/45 fue pump, pump-in and pump-out function; with 2 pcs fuel hose, 2 pcs hose box, valve box, tool box, ladder, top anti-skid walkway, top protective fence, rear bumper, fire extinguishers, dangerous warning stickers, reflective stickers, etc.





As model changes or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
