【Chassis Parameters】
Dongfeng Dolicar 4x2 chassis, condition new, classical cabin, 3 seats, 3800mm wheelbase, Yuchai 120HP Euro 3 dieseI engine, manual 5-speed transmission, 6+1 pcs 7.50R16 radial tires, with one spare tire, 2.5 Ton front axle, 5.5 Ton rear axle, air brake, power assist steering, etc.
【Upper Structure Parameters】
- Cargo box size 5200x2100x2200mm; corrugated steel plate, with a side door, rear double opening back doors;

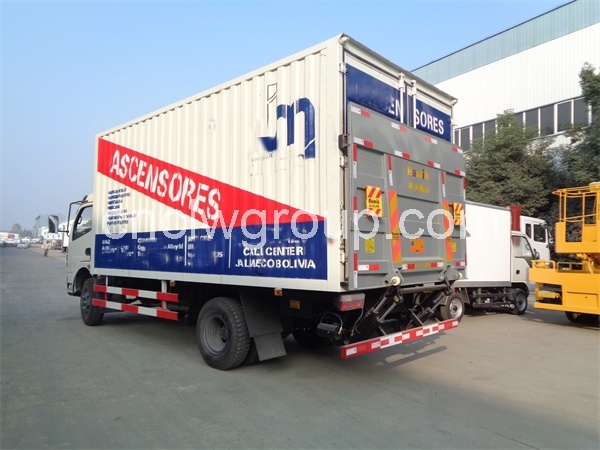

- With 1.5 tons hydraulic lifting tailgate, control box control + electric hydraulic control.
| Model | CLW5090XXYD3 |
| Chassis brand | Dongfeng |
| Wheeldrive | 4x2, LHD |
| New or Used | New |
| Overall dimension(mm) | 6995x2250x3150 |
| Cargo box dimension(mm) | 5200x2100x2200 |
| Material of cargo box | Corrugated steel plate |
| Side door of cargo box | One pcs |
| Hydraulic lifting tailgate | 1.5 tons lifting capacity |
| Gross weight(kg) | 9850 |
| Curb weight(kg) | 4300 |
| Load Weight(kg) | 6~8 tons |
| Wheelbase(mm) | 3800 |
| Engine power | Yuchai 120HP Euro3 |
| Fuel type | DieseI |
| Transmission | Manual 5- speed |
| Brake | Air brake |
| Axle load(front/rear) | 2.5/5.5 tons |
| Tire | 6+1 pcs, 7.50R16 radial tires |
| Max speed | 90km/h |
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
