【Chassis Parameters】
Dongfeng 4x2 cab chassis, condition new, double cabin, 4 doors, 3+3 seats, 3950mm wheelbase, Cummins 170HP Euro 3 dieseI engine, 8-speed transmission, 10.00-20 nylon tires, with one spare tire, 3.6 ton front axle, 8 ton rear axle, air brake, power assist steering, etc.
【Upper Structure Parameters】
Chengli CLW brand fire truck has near 20 years experiences, mainly for fire engine,water supply fire truck,rescue fire truck,fire equipment, special fire truck, etc.

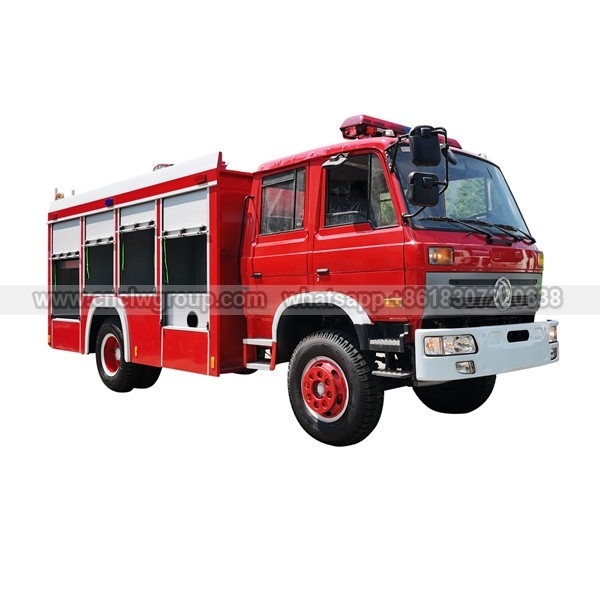

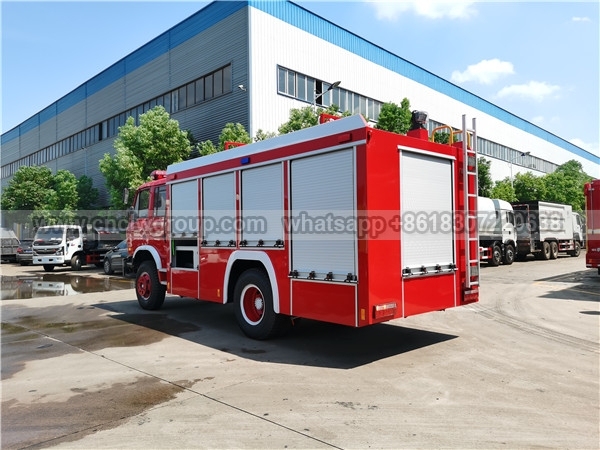

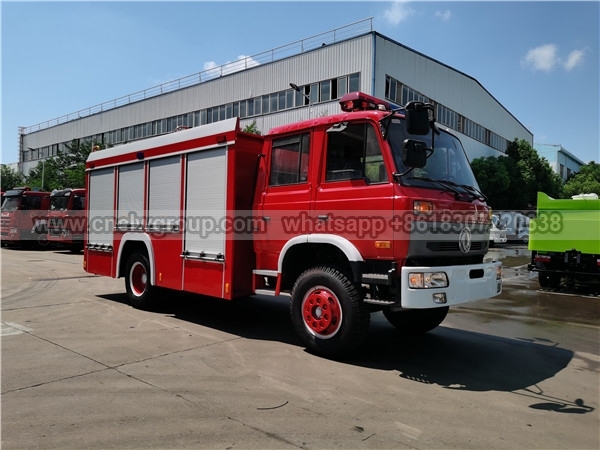

CLW5140GXFPM340D3 Dongfeng foam fire engine truck, 5000 liter water tank, 1000 liter foam tank, carbon steel tank body, equippepd with CB10/40 fire pump, PL32 dual use foam & water fire monitor, water jetting range can reach 55m, foam jetting range 40m; with 2 pcs fire outlet, 1 pcs fire inlet, 1 pcs suction port, equipment compartment, pump room, fire tools and accessories.
Model | CLW5140GXFPM40D3 |
Chassis brand | Dongfeng |
Wheeldrive | 4x2, LHD |
Cabin | Double cabin, 3+3 seats, with four doors |
New or Used | New |
Overall dimension | 7450x2500x3350mm |
Gross weight | 14590kg |
Curb weight | 6800kg |
Load | 7650kg |
Wheelbase | 3950mm |
Engine power | Cummins 170HP Euro3 |
Fuel type | DieseI |
Transmission | Manual 58speed |
Brake | Air brake |
Axle load | 3.6 tons / 8 Tons |
Tire | 6+1 pcs, 10.00-20 nylon tires |
Max speed | 90km/h |
【Fire Fighting Parameters】
Water Tank | Volume | 5,000 liter |
Material | Carbon steel | |
Manhole | 1 pcs, DN460mm | |
Inlet | 2 pcs | |
Outlet | DN80mm, manual butterfly valve | |
Drain valve | 1 pcs | |
Fire Pump | Brand & Model | Rongsheng or Xiongzhen CB10/40 |
Flow | 2,400 liter/min | |
Pressure | 1.0 MPa | |
Suction height | ≤ 6 meters | |
Water diversion time | ≤ 45s | |
Fire Monitor | Brand & Model | PL32 dual use foam & water fire monitor |
Flow | 1,920 liter/min | |
Pressure | 1.0 MPa | |
Jetting range | water ≤ 55m, foam ≤ 40m | |
Angle |
Horizontal 360° slewing Vertical -7° ~ +75° |
|
Pump Room | Structure |
Steel structure |
Door |
Three aluminum sliding shutter doors with locks |
|
Equipment Compartment | Structure |
Steel structure, inside with anti-corrosion treatment, with seal |
Door |
Aluminum sliding shutter doors with locks |
|
Electrical |
Light |
Long line fire use warning light with sound and flash light; side with flash lamps; rear with a searh lights |
Siren |
louder speaker, with 5 tonnes siren |
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
