Dongfeng 6x4 Truck with XCMG 10 Tons Boom Crane

Dongfeng 6x4 260HP Euro3 truck
Gross weight: 25000kg
Load: 20 tons
Transmission: 9-speed manual gearbox
Tir: 10+1 pcs 10.00-20 nylon tire
Crane lifting capacity: XCMG 10 tons
Crane type:  telescopic straight boom, 4 section arm
Max lifting height:
Description
Description

【Chassis Parameters】

Dongfeng 6x4 chassis, condition new, 4600+1350mm wheelbase, Yuchai 260HP Euro3 dieseI engine, 9-speed transmission, 10.00-20 nylon tires, with one spare tire, 5 ton front axle, 2x 10 ton rear axle, air brake, power assist steering, etc.



【Upper Structure Parameters】

XCMG SQS250-4 10 tons crane, 4-section arm, max lifting height 13m, max working radius 10.3m, 360° slewing, double side operation, with remote throttle, lighting, leveling bubble, etc.



Vehicle Basic Parameters:

Model CLW5251JSQD32
Chassis brand Dongfeng
New or Used New
Overall dimension 10250x2500x3850mm
Cargo box 7200x2300x550mm
Gross weight 25000kg
Curb weight 12500kg
Load 20 tons
Wheelbase 4600+1350mm
Engine power 240HP or 260HP or 300HP optional
Fuel type DieseI
Transmission 9-speed
Brake air brake
Axle load 5/2x 10 tons
Tire 10+1 pcs, 10.00-20
Max speed 90km/h

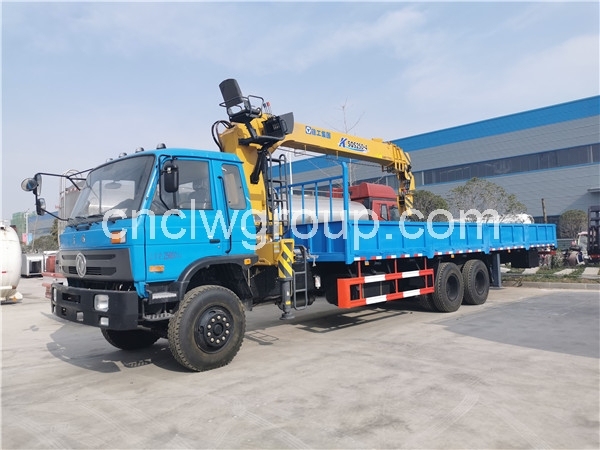

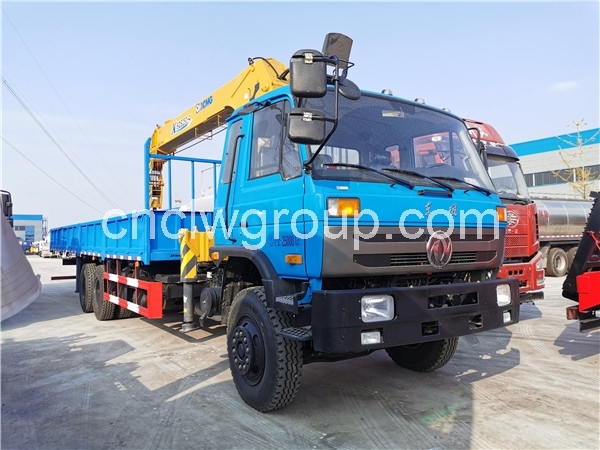

Multi-directional Pictures:

Crane Parameters:

Model SQS250-4
Brand XCMG
New or Used New
Max lifting weight 10 tons
Max torque 250 kN.m
Max lifting height 13m
Max working radius 10.3
Slewing angle 360 degree
Outrigger Front hydraulic extension outrigger
Control Double side linkage operation
Special Remote throttle, lighting, leveling bubble, etc



As model changes or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
