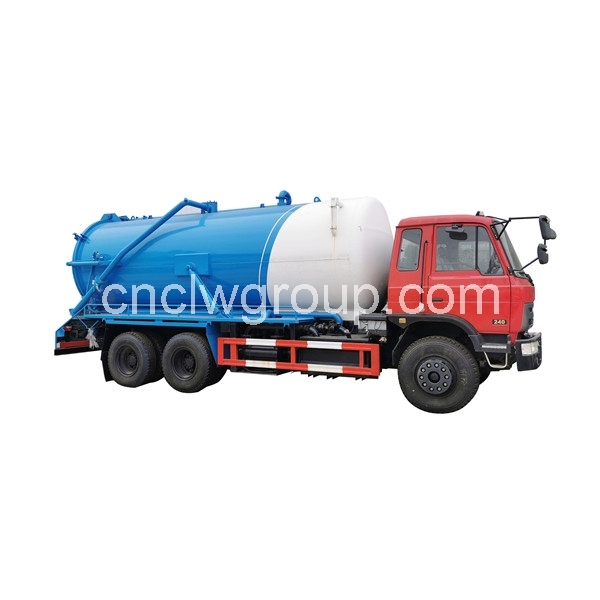

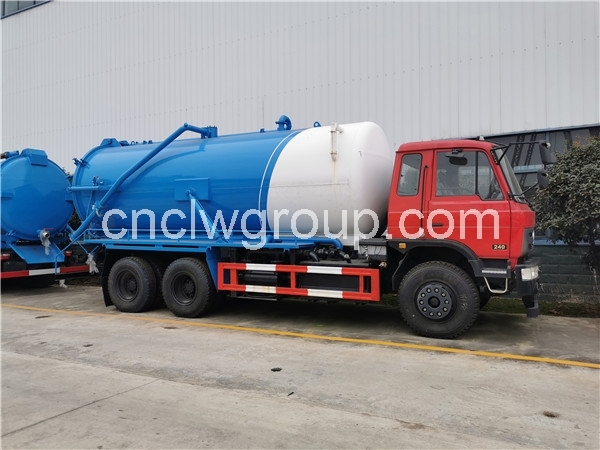

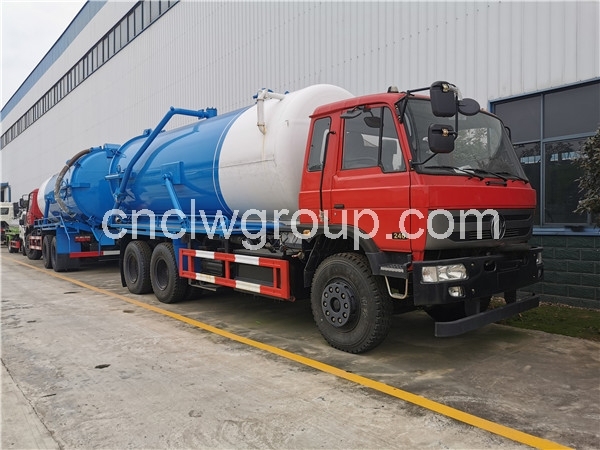

Dongfeng 6x4 18000 liter Sewage Suction Truck

- Dongfeng 6x4 sewage suction truck
- Yuchai 260HP engine
- 9-speed transmission
- 10.00-20 nylon tire
- Sewage tank volume: 18,000 liter
- Sewage pump: double 10 tons vacuum sewage pump
- Unloading: hydraulic rear dumping
Description
Description

【Chassis Parameters】

Dongfeng 6x4 heavy chassis, condition new, 4350+1350mm wheelbase, Yuchai 260HP Euro3 dieseI engine, manual 9-speed transmission, 10+1 pcs 10.00-20 nylon tires, with one spare tire, 5 ton front axle, 2x 10 ton double reduction rear axle, full air brake, exhaust brake,power assist steering, etc.



【Upper Structure Parameters】

- Sewage tank volume: 18,000 liter, box body is made of carbon steel, 5mm tank body, 6mm sea head

- Sewage pump: double 10 Tons vacuum pump

- Others: tank hydraulic lifting rear dump, with a DN150mm discharge valve at rear, hydraulic open tailgate, with a 8m suction hose, with tank level view-window, etc



Model CLW5250GXWD3
Chassis brand Dongfeng
Wheeldrive 6x4, LHD
New or Used New
Overall dimension 8250x2500x3250mm
Gross weight 25000kg
Curb weight 10850kg
Load 16-20 tons
Wheelbase 4350+1350mm
Engine power Yuchai 260HP Euro3
Fuel type DieseI
Transmission Manual, 9-speed
Brake Full air brake
Axle load 5 tons / 2x 10 tons
Tire 10+1 pcs, 10.00-20 nylon tires
Max speed 90km/h
Sewage Tank Tank Volume 18,000 liter
Material 5mm carbon steel tank body, 6mm seal head
Tailgate Hydraulic opening
Main Components Sewage pump Double 10 Tons vacuum pump, 1000rpm rotary
Tank unloading Hydraulic rear dumping
Discharge valve 1 pcs DN150mm aluminum alloy outlet
Suction hose 1 pcs 8 meters long
Level view-window 1 pcs
Oil & water separator Included
Anti-overflow valve Included
Wash hand tank 1 pcs
Performance Max suction depth 7 meters
Suction full-tank time ≤ 12 minutes
Positive pressure pump water time ≤ 7 minutes



【Structures of Vacuum Sewage Truck】

The structures of vacuum sewage truck includes: cab chassis, carbon steel sewage tank body, hydraulic back door, door locks, vacuum pump, separator, four-way valve, oil gas separator, ball valve, hydraulic discharge cylinder, visual window, etc.  Chengli made vacuum septical cleaner sewage suction trucks are already near 20 years experiences, with mature manufacture technologies, high quality and good price.

【Product Workmanshop of Vacuum Sewage Truck】

Chengli CLW brand vacuum sewage tanker trucks are all made of high quality Wugang steel, and perfectly welded, no leakge;  tank body and all accessories are well coated and paint, 2 layer bottom coat, and 2 layer surface paint. We can accept customized paint and logo designs.



【Job Scenes of Vacuum Sewage Truck】



As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest price!
