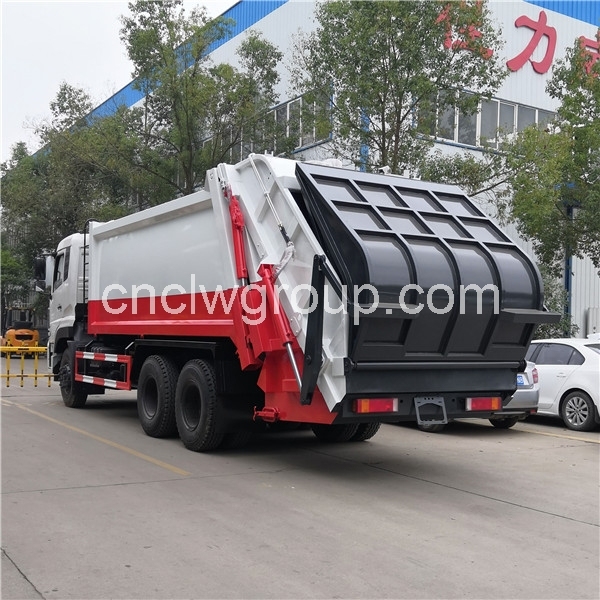

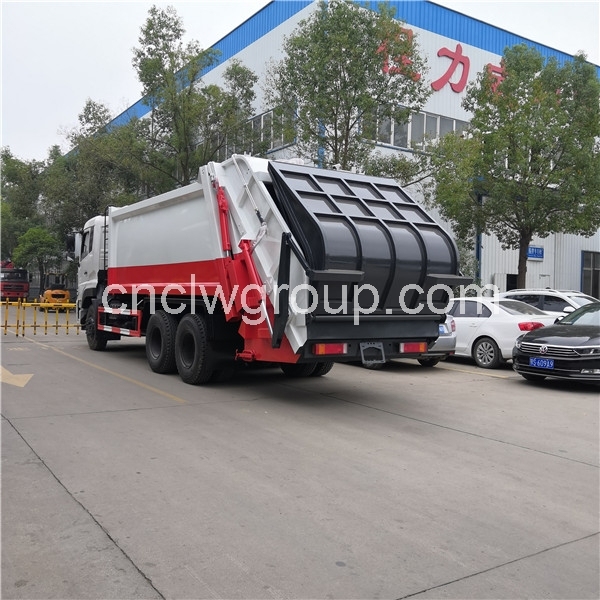

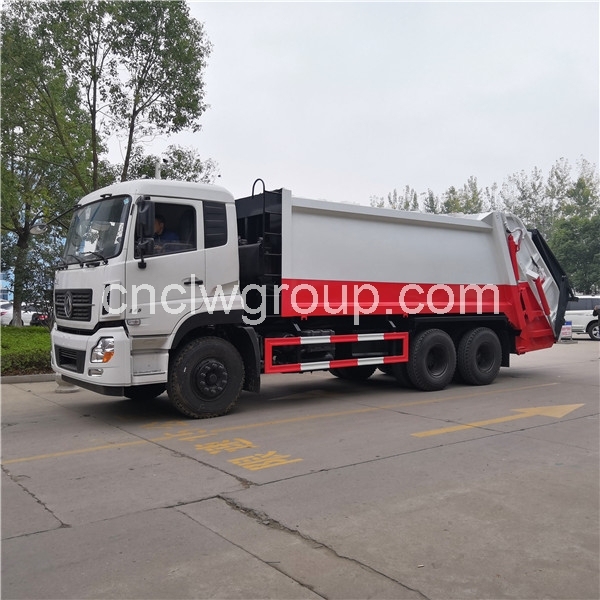

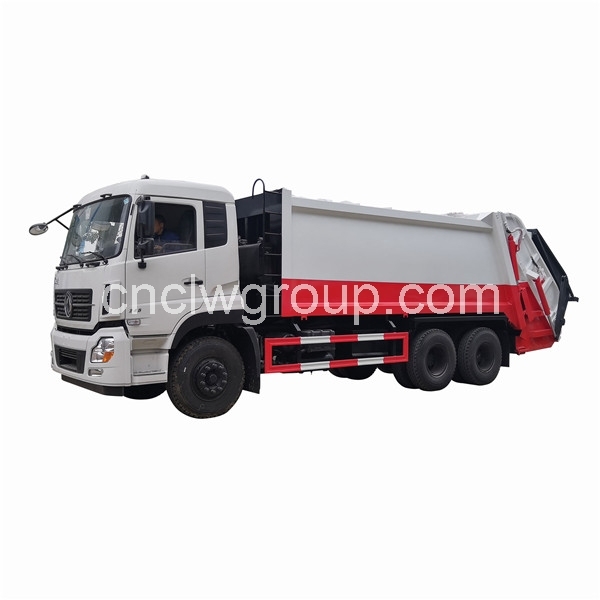

Dongfeng 6x4 18m3 Garbage Compactor Truck

Dongfeng 6x4 260HP Euro3 truck
9-speed transmission
10.00R20 radial tire
18m3 volume, 5mm side wall, 5mm bottom plate
Rear waste bin flip device, intelligent control system+manual control+inside cab controlled
Description
Description

【Chassis Parameters】

Dongfeng 6x4 heavy duty chassis, condition new, 4350+1350mm wheelbase, Yuchai 260HP Euro3 dieseI engine, 9-speed transmission, 10.00R20 radial tires, with one spare tire, 5 ton front axle, 2x 10 ton double reduction rear axle ratio 4.852, full air brake, exhaust brake, power assist steering, power window, central lock, etc.



【Upper Structure Parameters】

Chengli produced garbage compactor body, with 18 cubic meter volume box, rear with waste bin flip device, can flip 120L/240L/660L waste bins, control panel+manual lever+inside cab controlled.



Model CLW5250ZYSD3
Chassis brand Dongfeng
Wheeldrive 6x4, LHD
New or Used New
Overall dimension 9850x2500x3150mm
Gross weight 25000kg
Curb weight 11500kg
Load 13500kg
Wheelbase 4350+1350mm
Engine power Yuchai 260HP optional
Fuel type DieseI
Transmission Manual 9-speed
Brake Full air brake, exhaust brake
Axle load 5 tons / 2x 10 tons
Tire 6+1 pcs, 10.00R20 radial tires
Max speed 90km/h



【Structures & Features of Chengli Garbage Compactor】

As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
