【Chassis Parameters】
Dongfeng 6x4 heavy duty chassis, condition new, 4350+1350mm wheelbase, Yuchai 260HP Euro3 dieseI engine, 9-speed transmission, 10.00R20 radial tires, with one spare tire, 5 ton front axle, 2x 10 ton double reduction rear axle, ratio 4.85, full air brake, exhaust brake, power assist steering, power window, central lock, with one spare tire, etc.
【Upper Structure Parameters】

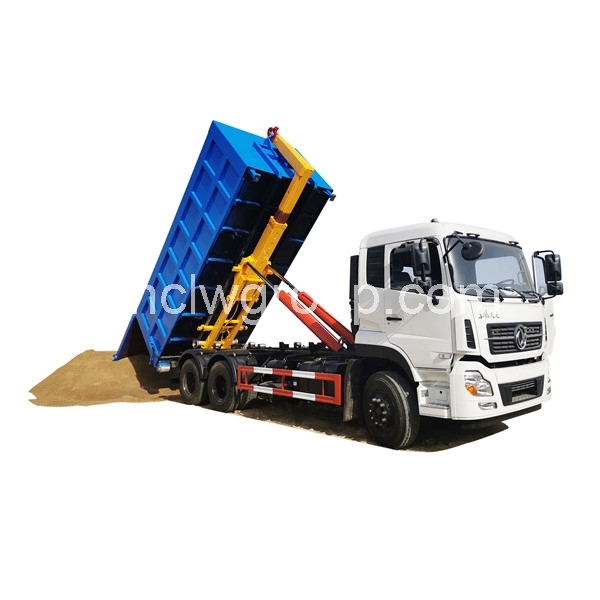

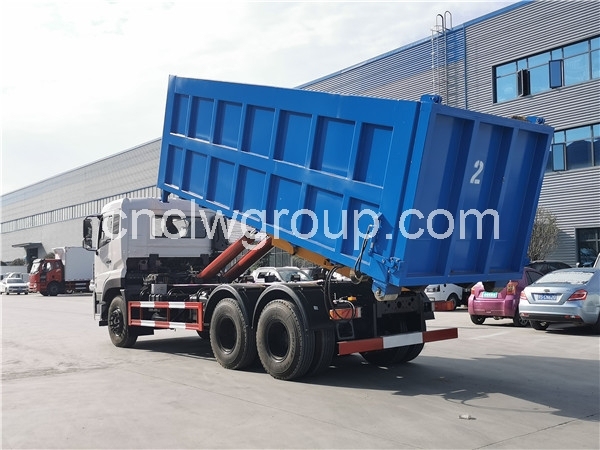

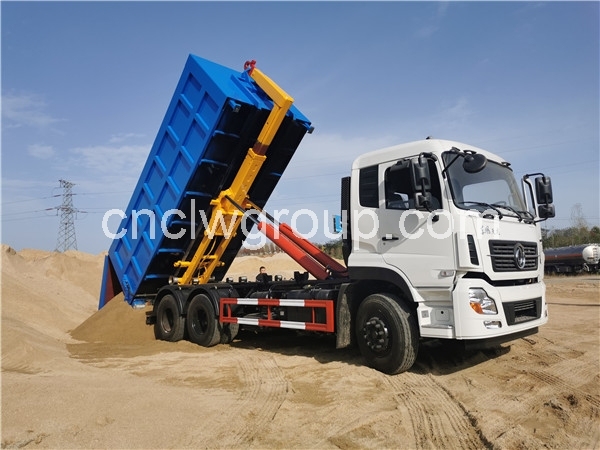

Hook lift system: 30 tons heavy lifting capacity, with strengthened hook arm boom, extension hydraulic boom, can lift and can dump;
Waste bin: 20 m3 volume, 4mm side, 5mm bottom, with hydraulic tail gate, waste bin with detachable quick-connecting hydraulic joints
Control: manual control + remote controlled
| Model | CLW5250TXXD3 |
| Chassis brand | Dongfeng |
| Wheeldrive | 6x4, LHD |
| New or Used | New |
| Overall dimension | 9850x2500x2950mm |
| Gross weight | 25000kg |
| Curb weight | 10200kg |
| Load | 20 tons |
| Wheelbase | 4350+1350mm |
| Engine power | Yuchai 260HP Euro3 |
| Fuel type | DieseI |
| Transmission | 9-speed |
| Brake | Full air brake, exhaust brake |
| Axle load | 5 / 2x10 tons |
| Tire | 10+1 pcs, 10.00R20 radial tires |
| Max speed | 90km/h |
| Hook Lifting System | Hook lift capacity: 30 tons |
| Hydrualic system: china famous brand + import valves | |
| Hook center height: 1150mm | |
| Operation: manual levers + remote controlled | |
| Waste bin | Volume: 20 m3 |
| Material: 4mm side, 5mm bottom, steel frame structure | |
| Tailgate: hydraulic, with quick-connector joints |
【Chengli Hook Lift Truck Design Drawing】
As vehicles change or emission standards upgraded, the specifications above are for reference. Please contact us for a latest quote!
